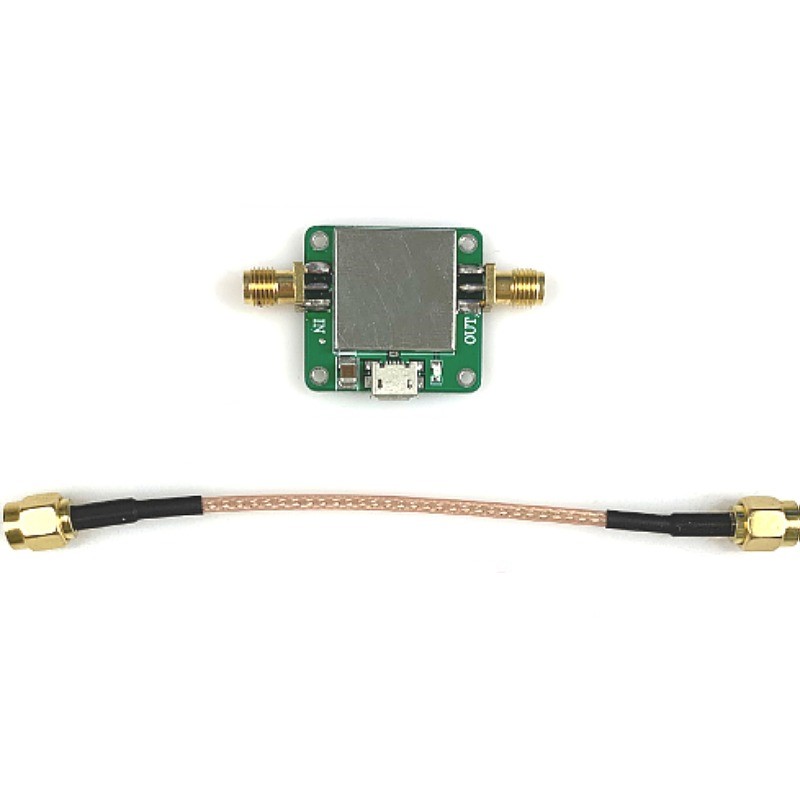

RF Signal Amplifier 20 dB for Wideband RF Testing and SDR Applications

This RF signal amplifier is a compact, high-performance solution for users who need stronger and more usable RF signal levels across a very broad frequency span. Covering 50 MHz to 6 GHz and providing a typical +20 dB gain, it is designed to support both transmission and reception in professional, educational, and experimental RF environments.

Its compact format, low operating current, and simple 5V Micro-USB power input make it easy to deploy on the bench or in the field. With SMA connectivity and a 50-ohm system impedance, it integrates easily with a wide range of compatible RF devices, including Hack RF One and other SDR and test platforms that use SMA connections.

Wide Frequency Coverage from 50 MHz to 6 GHz

One of the strongest advantages of this amplifier is its wide operating frequency range. With support from 50 MHz up to 6 GHz, it can be used across many RF workflows without needing separate amplifiers for different bands. This makes it especially useful for users working on varied projects, from general RF development to broadband signal observation and wireless system prototyping.

For laboratories, RF engineers, and SDR users, wideband coverage means greater flexibility when testing different signal paths, comparing devices, or evaluating performance across multiple frequencies. Instead of limiting your setup to a narrow operating window, this amplifier supports a broad range of RF tasks with a single compact unit.

20 dB Typical Gain for Stronger Signal Levels

The amplifier provides a typical gain of 20 dB, helping increase signal strength in systems where the original RF level may be too low for effective testing, monitoring, or analysis. This fixed gain is useful when you need a straightforward and predictable amplification stage in your setup.

In practical terms, this can help improve signal visibility during measurement work, support clearer RF analysis, and strengthen low-level signals in compatible transmission or reception chains. The unit is also specified with a maximum output power of +21 dBm (100 mW), making it suitable for low-power RF applications where controlled amplification is required.

Supports Both Transmission and Reception

Unlike basic amplifiers that are intended only for one direction of use, this model is designed to work with both transmission and reception. That makes it a versatile choice for users who need one amplifier for multiple roles within an RF setup.

Transmission Applications

On the transmission side, the amplifier can be used to boost low-output RF signals in controlled testing environments. This is useful for SDR transmitters, wireless development work, and lab-based signal experiments where a stronger output level is needed for evaluation or system tuning.

Reception Applications

On the reception side, it can help enhance weak incoming signals for spectrum analysis, signal monitoring, and SDR receiver workflows. For users performing sensitive RF measurements or signal observation, the added gain can make low-level signals easier to work with in a compatible setup.

This dual TX/RX capability gives the amplifier broader value in technical environments where equipment may be reconfigured frequently for different tasks.

Compatible with Hack RF One and Other SMA RF Devices

This amplifier is fully compatible with Hack RF One and is also suitable for other RF devices equipped with SMA connectors. The specified connector arrangement is SMA female input and SMA male output, allowing straightforward integration into many standard RF chains.

Compatible device categories and examples explicitly listed for this amplifier include:

• Hack RF One

• LimeSDR

• RTL-SDR with upconverters

• USRP series

• Signal generators

• RF detectors and analyzers

• Custom RF circuits with 50-ohm SMA connectors

This broad compatibility makes it a practical accessory for users building modular RF systems, test benches, or portable SDR kits. If your equipment uses SMA connections and a 50-ohm RF path, this amplifier is designed to fit naturally into that environment.

Compact Design for Bench and Field Use

Despite its performance, the amplifier remains extremely lightweight at just 5 grams. This makes it easy to add to portable RF kits, temporary test setups, or compact SDR installations where space and weight matter.

Its small form factor is especially useful for field work, mobile measurement tasks, and educational demonstrations where a larger amplifier would be less convenient. At the same time, it is equally suitable for fixed bench setups in labs and workshops where users want a simple, low-footprint amplification stage.

Simple 5V Power via Micro-USB

Powering the amplifier is straightforward. It operates from 5V DC via Micro-USB and draws 85 mA of operating current. This makes it easy to run from common power sources already available in many technical environments.

Examples of suitable power sources explicitly mentioned include:

• Laptop or desktop USB ports

• USB power banks

• Wall adapters

• SDR platform power outputs, if supported

This simple power arrangement helps reduce setup time and avoids the need for more complex external power systems. For users who regularly move between workstations, labs, and field locations, Micro-USB power adds welcome convenience.

Technical Specifications

• Operating frequency range: 50 MHz to 6 GHz

• Amplifier gain: 20 dB typical

• Maximum output power: +21 dBm (100 mW)

• Operating current: 85 mA

• Power supply: 5V DC via Micro-USB

• System impedance: 50 Ohms

• Connectors: SMA female input, SMA male output

• Weight: 5 g

Suitable Environments and Professional Uses

Based on the provided specifications and compatibility, this amplifier is suitable for a range of legitimate RF tasks, including signal analysis, wireless communication testing, RF experimentation, software-defined radio applications, spectrum monitoring, and prototyping of wireless systems.

It is particularly relevant for:

• RF engineers developing and testing wireless modules

• SDR users working with platforms such as Hack RF One or LimeSDR

• Academic laboratories conducting RF experiments or antenna testing

• Telecommunications specialists troubleshooting signal coverage

Its combination of wideband operation, bidirectional support, and simple power requirements makes it useful in both portable field operations and stationary lab environments.

Installation and Everyday Use

The amplifier is designed for straightforward deployment. No drivers, software, or configuration are required. In a compatible setup, it can simply be connected between the RF device and the relevant antenna or signal source, then powered through its Micro-USB input.

This plug-and-play approach is valuable for users who want to spend less time on setup and more time on testing, measurement, or development work. It also makes the unit accessible to users who need a practical RF accessory without a complicated installation process.

Important Compliance Information

Because this is an RF amplifier, users must ensure that any transmission use complies with local radio spectrum regulations. Increasing RF output power may affect legal operating limits depending on the frequency, application, and jurisdiction.

Before using the amplifier in transmit mode, always verify permitted frequencies and transmission power levels in your country or region. This product is intended for legal and professional use, and responsible operation remains the user’s obligation.

Why Choose This RF Signal Amplifier?

If you need a compact amplifier that combines wideband coverage, 20 dB typical gain, TX and RX support, and simple SMA integration, this model offers a practical balance of performance and convenience. It is especially well suited to users working with SDR platforms, RF test equipment, and custom 50-ohm SMA-based systems.

Its lightweight design, low current draw, and Micro-USB power input make it easy to deploy almost anywhere, while its compatibility with devices such as Hack RF One adds immediate value for many RF professionals and enthusiasts. For signal boosting in legitimate testing, monitoring, and development environments, it is a versatile and efficient addition to an RF toolkit.
