Endoscope Cameras & Borescopes for Technical Inspection

Begin with a specific visual inspection question

Define the feature that the camera needs to show

Start an endoscope camera comparison by describing the question, not the desired number of pixels. Checking whether a passage is visibly obstructed, reviewing a joint surface and documenting a component after maintenance are different tasks. Specify the approximate size of the relevant feature and the distance from which the probe could view it. A general picture can provide orientation while still being inadequate for examining a small mark. Useful detail is determined by the actual observation, not by the fact that some image appears.

Describe the access route as carefully as the feature. A straight opening, a cavity with free space and a narrow duct with several turns require different probe behaviour. The smallest visible opening is only one constraint. Changes in section, connectors, accessories and permitted bending can prevent the head reaching a useful viewpoint. If there is no space to place the lens within its working distance, higher resolution will not solve that geometric limitation. Establishing this early can rule out unsuitable models before a lengthy specification comparison.

Turn the question into an acceptance example. For instance, choose a known joint or mark that represents the feature and check whether you can recognise it, capture it and reopen the result on the intended review device. The test should include live viewing and the saved original if documentation matters. Also state what a visual inspection cannot establish on its own. Surface appearance may guide further work without proving material composition, hidden condition or the cause of an issue. The camera supplies visual information within known limits.

A useful requirement also identifies the decision the image will support. If the result is only intended to show whether a visible part can be reached, a clear orientation view may be sufficient. If someone must later compare a small surface feature, the preparation needs repeatable perspective, focus and saved output. Write that distinction before ordering. It helps the supplier understand the question and prevents an attractive demonstration of general visibility from being mistaken for proof that the more demanding documentation task is possible.

Endoscope, borescope and probe camera terminology

The construction and supported functions matter more than the name

The terms inspection endoscope, borescope camera and probe camera are used for related observation tools, but they do not establish identical construction. Products can differ in rigidity, direction of view, cable length, display arrangement and capture functions. Read the exact reference rather than treating a term as a technical standard. Two cameras intended for restricted access may handle very differently on the same route, and one may not substitute for the other even if the imaging heads look similar.

A miniature head is part of a larger system. The cable connection, wireless module, screen or recorder can occupy more space than the lens. Consider where those components will sit and how they will be held while the probe is guided. Transport and preparation also depend on the whole arrangement. Choosing the smallest advertised head without checking the accessory assembly or viewing system can leave an otherwise suitable probe awkward to operate. The useful dimensions are those of the configuration you will actually introduce and handle.

Close inspection is different from viewing an entire room or distant scene. A lens useful at a short working distance is not automatically suitable for general surveillance. For another framing requirement, compare the wider camera range and the relevant miniature camera family. The inspection tools described here are for equipment and installations within their documented conditions. Sharing the word endoscope with another field does not establish medical suitability; these technical inspection cameras should not be used in people or animals.

Probe diameter and clearance through the route

Measure the narrowest point, including the complete tip assembly

The diameter of an inspection camera needs to fit the most restrictive part of the intended route, not just its entrance. Internal lips, joints, bends and changes of section may be narrower or harder to negotiate than the visible opening. Include any fitted protector or supported accessory. A head that enters tightly may have insufficient room to turn or withdraw. The chosen configuration should allow controlled insertion and removal without using force to compensate for an unsuitable size.

Use measurements and the inspected asset's documentation where available. There is no universal clearance figure suitable for every material, geometry and probe. Where the route is unknown, a limited preliminary observation may help within the authorised prepared conditions, but extra available cable is not a reason to keep advancing. The practical endpoint is where the equipment remains controllable and recoverable. If the access does not allow a reasonable withdrawal plan, another suitable tool or an authorised partial dismantling may be the better approach.

Check whether the largest part of the assembly is actually the camera head. A joint, protective feature or accessory can change the usable diameter. Use only supported attachments installed through the specified method. A visually similar accessory may fit poorly, detach or make recovery harder. When possible, try a representative accessible route before an important inspection. This physical check reveals restrictions without committing the probe inside an inaccessible component and helps separate an access problem from an imaging problem before work begins.

Cable length and practical inspection reach

Available metres do not establish the distance you can control

The stated length of a borescope cable is a dimension, not a guarantee that the head can reach any point that far from the entrance. Friction, bends and obstacles affect advancement. In a large cavity, a flexible cable may loop rather than direct the tip. In a narrow route, one turn can stop progress while much of the cable remains unused. Compare length with cable construction and the actual path rather than ranking products by the largest number of metres.

Excess cable can also complicate handling. Choose enough length for the relevant route while allowing sensible management of the remainder. Consider where the screen or module will be supported and whether the operator can manage the cable without pulling on its connections. A setup comfortable on a bench may be awkward beside installed equipment. A longer option is not necessarily more useful if it reduces control or makes the routine difficult for the person who will perform the inspections.

If location within a passage matters, decide how advancement will be referenced. Introduced cable length is not automatically the straight-line distance to the tip, particularly where it curves or forms loops. Record an estimate as an estimate unless a documented measurement function and method support greater precision. A useful practical reach test asks whether you can guide the head, obtain the required view and recover the equipment. Unused cable beyond that point does not increase the inspected area or justify a claim of complete coverage.

Flexible and semi-rigid inspection probes

Flexibility does not mean active steering

A flexible inspection camera can adapt to certain routes, but that does not establish that you can steer its tip freely. A semi-rigid probe may retain a prepared shape while still having limits on bending and pushability. Confirm the documented construction and permitted treatment. Do not infer head articulation, motorised turning or a side-view function from a flexible cable. If the inspection requires active changes in direction, that specific capability needs to be stated for the reference.

Handling changes with the amount extended and the support provided. A short section may be easy to position on a table while the same cable becomes less controllable through several bends. Follow any stated bend radius and shaping method. Avoid abrupt folds, twisting at joints or attempts to compensate for an unsteerable head by excessive cable rotation. The probe carries the camera and its connections. It should not be used as a pushing, cleaning or retrieval tool unless it is explicitly designed and equipped for that function.

Plan withdrawal at the start, including the effect of fitted accessories. Monitor resistance and do not continue pulling indiscriminately if something catches. Follow the appropriate instructions for the probe and the inspected asset. A route that permits entry is not necessarily equally easy in reverse if a tip assembly or cable loop changes orientation. A successful inspection protects both the tool and the installation and leaves a repeatable method, rather than obtaining one image at the cost of damaging a cable or creating an inaccessible obstruction.

Focus distance and the size of the feature

Closer is not always clearer

The working distance of a borescope determines where it can form a useful image. A tip pressed too close to a surface may produce blur or excessive reflected light. Further away, the relevant feature may occupy too little of the frame. Check the model's documented focus information and test with a known object. Do not infer very close focus from the small lens diameter or a high advertised resolution. Optical distance remains a physical condition that image enlargement cannot remove.

The available gap can be the limiting factor. A probe may pass into a cavity yet have no space to back away far enough to focus on the surface. Describe that separation when comparing models. A request for maximum sharpness is less informative than a clear account of feature size and accessible viewing distance. If the necessary viewpoint cannot be reached with the supported orientation, another access or tool may be required. Reaching the cavity and seeing every surface inside it are distinct achievements.

Check the relevant part of the frame, not only a favourable central area. Curved or angled surfaces sit at different distances across the image, so apparent sharpness can vary. A flat sample in good light does not establish identical performance on irregular geometry. If reading a mark is important, test a representative mark at the expected angle. Request clarification when focus conditions are unclear, and keep any model-specific distance separate from other references. A useful purchase resolves one achievable observation rather than promising universal close-up clarity.

Resolution, live preview and recorded output

Associate each image figure with the mode it describes

Identify the native and recorded image modes

The resolution of an endoscope camera can refer to the sensor, a still photograph, live preview or saved video. These are not interchangeable. A UHD or 4K label alone does not establish native resolution for every output. Identify which figure belongs to the mode you will use, and examine the original file where documentation matters. The viewing app may adapt its preview to connection or display conditions, while a larger still-image dimension may include processing rather than equivalent additional optical information.

Compare original outputs under equivalent conditions

Focus, lens condition, lighting, orientation and compression also influence useful detail. A large blurry image remains blurry. A small phone display can conceal differences that become obvious on the intended review monitor, while an enlarged screenshot may exaggerate artefacts introduced after capture. Compare like with like: video with video, stills with stills, and originals with equivalent originals. Use the same known sample, distance and light, then record the settings so a result can be understood and repeated.

Keep the original when assessing a small feature

If the task concerns a small defect, describe its size and contrast instead of assuming that more pixels guarantee detection. Improving the viewpoint or illumination may have a greater effect than increasing output dimensions. Keep an original before cropping or annotation. Digital zoom can help examine existing information but cannot recover detail the camera did not preserve. The accepted result should be an interpretable view of the required feature under representative conditions, with no implication that the camera automatically diagnoses the state or cause of an apparent anomaly.

Field of view and direction of observation

A broad view and a detailed close-up serve different purposes

The field of view of a probe camera determines how much surroundings are included from one position. A wide view can help orientation but spreads image information across more surface. A narrower view may concentrate on one feature while omitting surrounding context. Neither is universally preferable. Relate field of view to working distance, feature size and the available room to move. The useful comparison asks whether the required surface is visible with enough detail, not which lens has the broadest headline angle.

Confirm the direction in which the lens looks. A forward-facing camera does not necessarily provide the lateral view needed to inspect a wall beside it. Side-view attachments, multiple lenses or articulated heads are specific capabilities, not consequences of the category name. If a task needs a particular perspective, explain how the model and its supported accessories will obtain it without forcing the cable. A software rotation control changes how the image is displayed; it does not turn the physical lens towards a surface outside its view.

Maintain known references as the probe advances or rotates. Inside a cavity, it can become difficult to tell which side is being examined. Use identifiable features where possible and record the perspective of a finding. A systematic sequence can alternate orientation views and detail while keeping their relationship clear. Continuous video alone does not establish complete inspection: coverage depends on what entered the field, with sufficient focus and light. A surface that remained outside the view should be described as unobserved rather than inferred from an apparently continuous recording.

LED lighting in dark cavities

More brightness can hide detail through reflections

The lighting of an inspection camera needs to reveal the surface without losing information in glare or overexposure. A bright, shiny area can become a featureless white patch when illuminated strongly at close range. Dark material may need more useful light. Where adjustment is supported, compare levels at the same distance and angle. The number of LEDs alone does not establish working range or image quality because the lens, surface, geometry and exposure behaviour all influence the result.

A head resting against a wall may be too close both to illuminate and focus properly. Changing separation or angle within the supported range can help more than increasing brightness. Dust, droplets and nearby edges can reflect light towards the lens and reduce contrast. Test materials and shapes representative of the task, including ordinary transitions between pale and dark surfaces. A demonstration inside a clean dry tube may not represent a component with irregular reflections, moisture or deposits.

Verify the controls on the exact model rather than assuming that every integrated light has the same adjustment. Preserve the chosen setting when comparing outputs. An image taken with a different light level or distance may appear better because of those conditions rather than a superior sensor. Conventional illumination also requires an optical path; it does not provide thermal imaging or see through opaque material. Use additional lighting only through a suitable plan for the prepared installation, without compromising access or introducing an unsupported arrangement.

Reflections, dirt and misleading surface appearances

Check the optical path before interpreting a mark

A clean inspection lens is part of reliable observation. A droplet, film or mark on the tip can create blur, halos and low contrast that resemble an imaging limitation. Inspect and clean only through the permitted procedure. Avoid abrasive materials or chemicals not approved for the assembly. The optical cover, seals and coatings need to remain intact. A water-resistance statement is not evidence that every cleaning liquid is acceptable, and a clear image does not establish that mechanical protection remains undamaged.

The observed surface can also change appearance with light. A reflection may resemble a different patch of material, a shadow can hide continuity and moisture can alter texture. When access allows, obtain another perspective and vary one condition at a time. A feature that changes dramatically when the light angle changes needs careful interpretation. Keep both views when they help explain uncertainty. Do not use the probe to scrape, wipe or move the inspected material unless that is a documented purpose of the tool and attachment.

Describe the visible finding separately from its possible cause. A dark area is an observation; a conclusion about what produced it may need further technical checks. A close image without scale or orientation may be insufficient for another person to assess. Contextualised visual information can guide maintenance without claiming a complete diagnosis. The inspection camera reduces some barriers to seeing a surface, but it does not transform every apparent discontinuity into a confirmed defect or establish the condition of hidden parts behind the visible area.

Inspection cameras with an integrated screen

Evaluate the dedicated viewing unit as part of the tool

An endoscope camera with screen provides a dedicated viewing arrangement when that is how the model is designed. It may reduce reliance on a phone for certain routines, but storage, export and power still need checking. A built-in screen does not establish that every view is automatically retained internally or that files can be transferred by any connection. Evaluate the sequence from startup to a recovered file with the equipment actually supplied, keeping each model's capabilities distinct.

Check display visibility where the work will happen. A monitor easy to read indoors may require a different position under bright ambient light. Consider whether it will be held, placed on a suitable surface or viewed by a second authorised person while the probe is handled. One hand occupied by the display changes cable control. Screen size in a specification does not by itself establish that controls, fine detail and recording state will be easy to interpret in the practical working posture.

Try the actions you will use: guide the probe, adjust supported lighting, capture a finding and reopen the output. Confirm how recording state is indicated and how the intended result is exported. If several people share the tool, use a simple common routine for identifying assets and retaining files. A dedicated unit can be convenient when it fits that routine, but it should not be described as universally better than phone-based viewing. The useful format is the one whose complete operation remains manageable during the actual task.

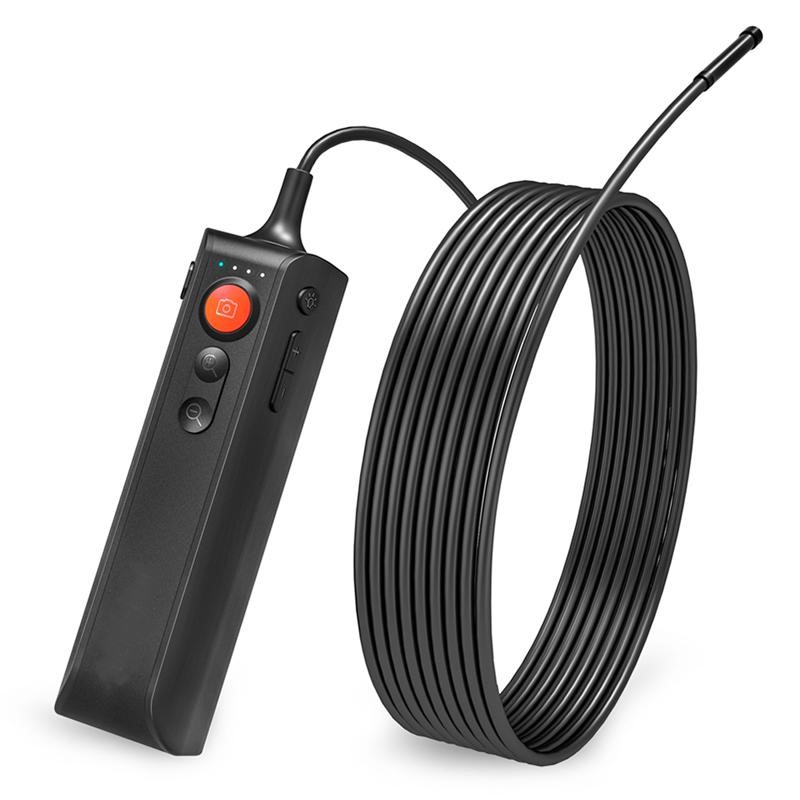

Wi-Fi endoscope cameras and mobile viewing

The wireless link does not remove the physical probe cable

A Wi-Fi endoscope camera may transmit its view to a compatible mobile device through the modes documented for that reference. Distinguish that viewing link from the physical cable between the head and its module. Wireless viewing does not mean the tip moves independently or that the camera can be accessed over the internet from anywhere. A direct nearby link may serve local inspection without providing off-site remote viewing. Explain the actual architecture rather than extending the wireless label into unrelated capabilities.

Verify the intended application and compatible receiving device. Do not assume every general camera program will recognise the system or provide all capture functions. A term such as P2P needs the context given by the model; it does not prove universal integration or superior security. Test with the phone and application you will use, including saved output. The combination of camera, software, receiving device and settings forms the viewing system, so a successful demonstration on another device is not a complete compatibility check.

Assess the link with the module and phone in their normal positions. Metal structures, obstacles and separation can alter practical stability. A close-range bench test may not represent the final layout. Check what happens when the phone locks, the app moves to the background or another activity interrupts viewing. Do not assume recording continues simply because a live image appeared beforehand. After a representative session, reopen a file and review continuity. A stalled preview can be a communication issue rather than an optical one, which matters when choosing the next diagnostic step.

USB functions and device compatibility

A connector shape does not establish what the port does

A USB inspection camera needs a documented connection path compatible with the viewing device and software. The appearance of a port or presence of an adapter does not prove that a phone can receive video from it. Confirm the actual function: a connector may provide charging, file transfer, image output or a specified combination. This category guide explains what to check; it does not attribute USB video capability to every model or to every supplied cable.

A cable that charges an item does not necessarily support the data operation you need. Identify the required cable and supported procedure before adding adapters. An adapter can change physical connection while leaving the underlying incompatibility unresolved. If the model supports Android, iOS or a computer through different routes, check what operation is available on each. Viewing, saving and copying may use separate paths. Test the exact receiving device and keep a sample created through that configuration before relying on it during an important inspection.

Prepare software through the intended source and understand the relevant permissions. If a replacement phone or computer changes the result, review compatibility and port function before concluding that the probe has failed. A controlled check of recognition, preview and capture can isolate the stage. Avoid changing several components at once or resetting working settings without recording them. Once the connection is restored, test the full required operation rather than treating device recognition as evidence that every viewing and saving function is available.

Photographs, video and inspection storage

Seeing a live picture is different from preserving it

An inspection camera with recording should specify which modes it saves and where. Still photography, preview and stored video can have different output characteristics. A visible view does not automatically create a file. Confirm capture controls, storage location, supported cards where relevant and how the recorded item is retrieved. During preparation, record a known scene and reopen it through the intended route. A recording icon or an entry in a file list is helpful but is not a substitute for playback and content verification.

Plan storage around the selected mode and expected duration rather than converting nominal capacity into unsupported recording hours. Check available space before an important session and establish what happens at capacity. If continuity matters, review behaviour between files and when stopping or restarting. Different models and settings may divide output differently. A camera that successfully saves a short still image has not thereby demonstrated a complete long video workflow, so test the mode that the inspection actually requires.

Verify originals before erasing or reusing media. Check clarity, orientation and whether the recorded period contains the finding. Organise files by asset, zone and session so similar cavities do not become mixed. Preserve an orientation view and a focused detail when practical. A large collection without location references can be less useful than a smaller organised set. Shared equipment needs a clear rule for who confirms copying and who may clear storage, reducing the chance of removing the only record while preparing the next inspection.

Battery life and power for the complete inspection system

The viewing device can be a separate energy dependency

The operating time of an endoscope camera depends on the conditions stated for the model and the actual use of lighting, communication and recording. A quoted duration should not be applied to every possible combination. Where a phone provides the display, its energy is another dependency. A charged camera module does not ensure the entire viewing system will remain available throughout the task. Identify all components needed to observe, capture and recover information, then prepare each one.

Nominal battery capacity cannot directly compare operating time across different systems. Consumption and workload differ. For occasional short inspections, a straightforward charging routine may be sufficient. For a longer working period, use a representative duration check and practical margin. Confirm whether operation while charging or any external power arrangement is supported instead of improvising. A connector compatible in shape is not enough to establish the correct electrical supply or permitted charging behaviour for the reference.

Test with the light level and viewing method you intend to use, including actual captures. Note the start, relevant warnings and state at the end, but do not treat a displayed percentage as an exact universal estimate of remaining minutes. Significant mode changes justify reviewing the relevant duration. Assign responsibility for charging and cable preparation in shared equipment. Follow instructions for charging conditions and accessories, and address abnormal behaviour before the next session. A larger battery figure cannot compensate for an unclear maintenance routine that leaves the complete system unprepared.

Water resistance, humidity and environmental protection

Identify exactly which components have documented protection

The water resistance of a probe camera must be tied to the reference and its stated conditions. Protection of the head or cable does not automatically extend to the display, wireless module, connectors or charger. If a classification is given, check its scope and any closure requirements. The word waterproof is insufficient to establish indefinite immersion, resistance to cleaning pressure or suitability for every liquid. Keep the complete arrangement within its documented limits and request clarification where the intended exposure is not described.

An ingress statement does not establish chemical resistance, temperature suitability or approval for hazardous atmospheres. Those are separate requirements needing a specifically suitable solution. The environment can also affect visibility before anything stops functioning. Droplets or condensation may alter the view, requiring the prescribed cleaning and drying procedure. Do not open, heat or modify the unit as an improvised response. Inspect relevant closures and connections before reuse because damage can change the condition on which environmental protection depends.

The tip, support equipment and battery may have different operating, storage and charging conditions. Prepare the inspected asset through the appropriate technical procedure before inserting the probe, especially where heat, pressure, movement or electrical energy could be present. The camera helps observation; it does not make an unprepared installation suitable for access. Evaluate the full system rather than considering only the portion that enters the cavity, and distinguish a documented permitted exposure from a condition merely survived during a brief previous use.

Duct and pipe inspection with a camera probe

Visual access is different from cleaning or clearing a passage

A camera for pipe inspection can show visible surfaces and obstacles within the probe's access and imaging limits. It should not be confused with a drain-clearing tool or a measurement system it does not contain. Diameter, bends and internal condition determine whether the head can advance and return. Plan entry and recovery before insertion. Extra cable does not guarantee reaching beyond an obstruction, and forcing the probe can create a separate problem rather than improve the inspection.

For wet or dirty routes, confirm the environmental limits and keep unprotected components out of exposure. A blurred view can result from a wet lens, suspended material, poor focus or unsuitable illumination rather than inadequate resolution. Review these causes in a controlled sequence. Do not attribute resistance to a particular substance, pressure or temperature without information for that model and its accessories. If the observation conditions exceed the tool's documented scope, select an appropriately designed alternative or another prepared access method.

A pipe finding needs a location reference to be useful later. Record the entry, orientation and an appropriately qualified depth estimate. Cable inserted around bends or loops is not automatically an exact position measurement. Keep an approach sequence and detail when supported, and describe the portion actually observed. If the probe cannot pass a change of direction, the remaining section is uninspected rather than confirmed clear. A useful result states what was visible, under what conditions and what further technical check could complete the review.

Mechanical inspection and equipment maintenance

Prepare the asset before introducing the camera

A borescope for mechanical inspection can help view an accessible area while avoiding some dismantling, when the task is properly prepared. The tool is not a substitute for the asset's maintenance procedure. Establish the authorised access, relevant operating state and permitted introduction of inspection equipment before insertion. A small opening does not by itself establish a suitable route. Consider hot surfaces, moving components, fluids and other conditions through the appropriate technical preparation for that asset.

Identify what a visible surface can tell you. A mark, deposit or apparent discontinuity may justify another check without establishing the condition of the whole component. Maintain orientation and record where the view was obtained. If a feature is important, compare another permitted angle or light setting rather than drawing a cause from one close image. Do not use the probe to displace components or scrape material as a substitute for a tool designed for that work.

After viewing, account for the camera and any supported attachments, inspect their condition and complete the required closure procedure for the asset. Check the saved finding while access remains available when practical. An omitted contextual view may be easier to obtain then than after equipment returns to service. The useful inspection outcome includes both interpretable information and a correctly concluded intervention. A camera may reduce some observation barriers, but it does not justify skipping preparation, recovery or the asset-specific checks needed before normal operation resumes.

Building cavities and installation maintenance

Use authorised access and record the reference point

A cavity inspection camera may help examine an authorised accessible space within a building or installation. Start with known access and available documentation. A small probe does not establish that creating another opening is appropriate or that an unknown cavity is free of services or other constraints. The relevant maintenance procedure should determine preparation and access. Evaluate whether the lens can reach a useful working distance and perspective before assuming that entry alone will provide the needed information.

Similar-looking spaces can be easy to confuse. Record the access identity, direction and visible reference features before collecting close-ups. A sharp photograph of a surface may still be difficult to interpret if nobody can establish which wall or part of the installation it shows. When following a route, alternate orientation views and detail in a sequence that remains understandable. Be explicit about branches or surfaces that were outside the field, rather than suggesting complete coverage from continuous movement of the probe.

Visual inspection can support maintenance decisions without proving all hidden conditions. State the observed feature and the imaging limitations, then identify any further technical examination needed for a conclusion. Preserve relevant originals and keep distribution proportionate to the purpose because installation images can contain operational information unrelated to the finding. A focused, contextualised record supports another person's work better than many anonymous close-ups. When access or geometry prevents a decisive view, recognise that limit and reconsider the authorised method instead of forcing an unsuitable route.

Prepare an inspection from start to finish

Bring the viewing system and file workflow into the plan

Preparation for an endoscopic technical inspection combines the visual question, authorised access and the state of the asset. Confirm that the selected configuration can reach, view and withdraw without forcing. Check charge, compatible storage, lens condition and supported attachments. If a phone is involved, verify its connection and capture permissions on the actual device. A short accessible test can discover a full card or an unpaired application before those issues interrupt work beside an installation.

Create a known sample with representative focus and lighting. If another person will review the findings, agree what context they need and how the records will be named. File organisation begins before capture, particularly where several similar assets or cavities will be inspected in one session. Decide what will constitute an adequate orientation view and how a close-up will link to it. The aim is a repeatable result rather than accumulating images and relying on the operator to remember where every one came from.

During inspection, advance in a controlled sequence and preserve references. More footage does not automatically mean broader coverage or better documentation. At the end, confirm recovery of the tool and useful files before dismantling the preparation when practical. If a critical view is missing while access remains available, a specific repeat may resolve it. Then follow the prescribed cleaning and storage process. A session ends with interpretable information and known equipment condition, not simply when the probe has been removed.

Diagnose blur, darkness and interrupted live images

Separate optics, connection and recording

For a blurred borescope image, begin with lens condition and working distance through the permitted procedure. A droplet, deposit or surface too close to the lens can reduce detail despite a high output dimension. Review illumination and angle one change at a time using a known accessible sample. Raising brightness indiscriminately may increase glare, and digital enlargement cannot restore missing information. Identify which part of the chain limits the view before changing every available setting.

A sharp image that does not show the required feature may indicate a perspective problem. Can the lens actually occupy the necessary position within the route? A physical limitation is not always correctable in software. Confirm documented direction of view and supported attachments, and recognise when a different tool or access is needed. The ability to enter a cavity does not mean all of its surfaces can be examined. Keeping this distinction clear avoids confusing geometry with a faulty imaging sensor.

A frozen Wi-Fi preview can involve connection, application or power rather than optical focus. Check in a controlled accessible arrangement and examine whether any saved file exists and what it contains. A stopped screen does not prove that capture ceased, nor does it prove recording continued. For recognition problems, review cable function and compatibility before resetting. Once a symptom is resolved, repeat observe, capture and recover. A returning live picture demonstrates one stage, while the required inspection workflow still needs a verified final result.

Cleaning, probe storage and service readiness

Preserve cable shape, optics and closures

The maintenance of an inspection camera should follow the exact model's cleaning, drying and storage instructions. Do not extend a water-protection statement into approval for any chemical cleaner. The tip, cable, connectors and screen may need different treatment. Inspect for damage, abrupt folds, dirt and closures that no longer fit correctly. A currently clear view is useful but does not establish that the assembly remains mechanically sound or within its environmental condition for the next use.

Store the probe in the permitted shape and bend radius without forcing it into an unsuitable case. Avoid strain where cable sections join. Keep supported attachments identified and correctly secured; a loose or damaged item should be addressed before being introduced into a cavity. Equipment that partly works should be clearly distinguished from a unit ready for a complete session. A simple state note can prevent repeated failures in shared equipment without creating disproportionate administration for occasional use.

Complete file recovery, then review charge and available storage for the next task. If a phone, app or computer changes, test the necessary viewing and recording functions before the next important session. Software and accessories are part of the inspection system, not separate afterthoughts. Follow intended update channels and retain the reference documentation so the workflow does not depend on one person's memory. A short readiness check should demonstrate the essential functions and make any outstanding issue visible to the next authorised operator.

Document findings with context and an original

Separate what is visible from the explanation you propose

An endoscope inspection photograph should allow another person to understand what it shows. Where practical, retain the access reference, an approach view and a focused detail. A very close image can be sharp yet ambiguous. Include orientation and a size reference only where they are reliable. Neither screen enlargement nor introduced cable length automatically supplies an exact scale. Describe any estimate as such rather than letting a visually impressive image imply measurement precision that the system does not provide.

Use concrete observation language and keep hypotheses distinct. A visible dark patch is not automatically evidence of one particular cause, and a uniform-looking surface does not establish the condition of parts that were not seen. Further examination may be needed to identify the material or mechanism. A useful technical record preserves the image, its conditions and its limits so that the next decision rests on the observation. The camera's role is to supply visual information, with interpretation supported by the appropriate knowledge and checks.

Preserve originals before cropping, converting or annotating. Make working copies and keep a sensible link between them and the source. Organise by asset, session and inspected zone. Limit sharing to the context the authorised recipient needs, because images of equipment or premises may contain unrelated information. For comparison between sessions, confirm that perspective, distance and lighting are sufficiently similar. A change in reflection or angle can look like a physical change, so repeatable capture conditions can be more valuable than increasing the number of anonymous images.

Compare complete inspection camera packages

The usable system includes accessories, viewing and recovery

Compare the complete endoscope camera package, not only the price of the imaging head. Check the supplied probe, screen or module, cables, storage and supported accessories. Where a phone or computer is required, confirm that the device you have supports the needed operation. A lower initial amount can require preparation that does not fit your resources or working routine. The meaningful comparison is the cost and practicality of obtaining and recovering the required image during the planned use.

Frequency and working conditions can change which format is convenient. A dedicated monitor may simplify a repeated routine, while a supported phone arrangement can suit a device already available. Neither screen nor wireless viewing is a universal advantage without the task. Evaluate handling, maintenance and recovered files together. Apply the same essential requirements when exploring camera offers. A commercial offer is a reason to compare a suitable alternative, not a reason to abandon a decisive access or compatibility requirement.

Rank requirements in their practical order: physical access, working distance, illumination, viewing and recovery. A high advertised resolution cannot compensate for a head that does not pass or an unsupported connection. Ask a specific question if a decisive function is unclear instead of inferring it from a similar body or product name. If no model meets the critical requirement, consider a different authorised access or suitable inspection method. Recognising the limit before purchase avoids expecting an accessory or setting to overcome an incompatible environment or geometry.

A representative final acceptance test

Check the whole workflow with a known sample

A final inspection camera acceptance test begins with prepared power, a clean lens and available storage. Use a sample with relevant feature size and a reachable working distance. Observe it, adjust supported controls, capture the result and retrieve the file. The test should answer the actual inspection question rather than merely display an attractive image. Include the intended phone or screen and the practical way it will be supported while the probe is handled.

If a turn, wireless arrangement or particular holding posture is decisive, include that condition in a manageable representative test. You do not need to reproduce every possible future situation, but the essential uncertainty should be resolved. Change one variable at a time and retain enough notes to interpret the outcome. Check the original file's useful detail and continuity, not only the preview. If the app transforms an output, distinguish that version from the original and compare equivalent modes.

Describe what the test did not demonstrate. A successful route does not prove access through every cavity, and a focused central detail does not establish coverage of surfaces outside the view. Keep the model, relevant settings and satisfactory sample as a preparation reference. Include who handles charge and recovery where the unit is shared. The accepted system combines achievable access, interpretable imaging and a maintainable routine, making the borescope useful as a technical inspection tool without attributing unverified functions or certainty.

Worked example: checking a visible joint inside a cavity

Translate a narrow maintenance question into camera requirements

Suppose an authorised maintenance task asks whether the visible part of a joint can be documented through an existing access. Begin with the access dimensions and the space available beside the joint. The camera must fit the full route and reach a position within its working distance. A smaller head that cannot obtain the necessary angle is not automatically better than another suitable arrangement. Keep the requirement limited to the visible surface; a photograph cannot establish the condition of the hidden side.

Try a representative joint or known feature in an accessible setup. Adjust permitted light and distance separately, retaining an orientation view and the detail. Check whether a reflection obscures the feature and whether another supported angle improves interpretation. If recorded documentation is required, reopen the actual output on the review device. A clear phone preview is not enough if the saved file is missing, reduced in a decisive way or impossible to link to the asset.

During the real prepared inspection, record the access identity and perspective, then capture the relevant area without using the probe to manipulate the joint. Describe what the image shows and what remains outside the view. If access prevents a decisive picture, report that limitation instead of presenting an indistinct image as confirmation. The outcome may support a further maintenance step, but the camera has answered only the achievable visual question. This example illustrates why geometry, context and file recovery deserve priority over an isolated resolution claim.

Worked example: choosing between screen and Wi-Fi viewing

Compare the same complete operation on both arrangements

Consider a workshop choosing an inspection system for several authorised users. One option has a dedicated screen; another sends a view to a supported phone. Start with the same known route and feature rather than comparing display photographs from a catalogue. Check how each person manages the probe, viewing unit and capture controls in the intended working position. A convenient screen arrangement can reduce handling difficulty, while a phone may be suitable when compatibility and preparation are already established.

For the wireless option, use the actual device and ordinary module position, then test capture and recovery after an interruption representative of the workflow. For the dedicated screen, check visibility, storage and the intended transfer path. Include preparation time and how a subsequent operator knows the unit is ready. The comparison should not assume either arrangement is universally simpler. It should reveal which complete sequence the team can repeat reliably without relying on a particular person's private device or remembered settings.

Review equivalent original outputs and the administrative side of sharing. Where are files retained, who verifies copying and who clears the storage? Which components need charging before the next use? A choice supported by these answers is stronger than selecting solely by display size or the word wireless. Keep the resulting short procedure with the equipment, and revisit the affected function if the phone, application or operating environment changes. The system's value comes from repeatable inspection and interpretable results across the people who actually use it.

Worked example: following a duct with uncertain bends

Recognise the difference between available length and observed coverage

For a duct with more than one change of direction, begin with available drawings and the authorised prepared access. Compare the head and complete tip assembly with the restrictive section, and consider the documented cable behaviour. A long cable may stop at the first bend or loop inside a larger area. Do not assume reach from length alone. If the route is uncertain, plan a limited observation that remains recoverable and recognise when another suitable tool or access is required.

Maintain an entry reference and observe advancement in a controlled sequence. A close image of a surface needs its relationship to the route recorded. If the probe cannot pass a turn, the unobserved continuation remains unknown. Do not present the inserted cable length as an exact location unless the arrangement and method support that claim. Where a mark appears, obtain another permitted view or light setting before interpreting it as a particular condition rather than reflection or contamination.

After withdrawal, inspect the tool, verify saved material and describe the actual coverage. State which sections were visible and where access or image conditions ended the observation. That result can still be useful because it identifies the next unanswered question. A limited, well-located record supports maintenance better than an unsupported statement that an entire duct was inspected. The example also explains why trying to force a route with more cable is a different action from improving visibility and may not provide any additional interpretable information.
