Description of the article « List of Compatible Modules for GUARDIAN-CONNECTION Alarm System »

Compatible Modules for the GUARDIAN-CONNECTION Alarm System

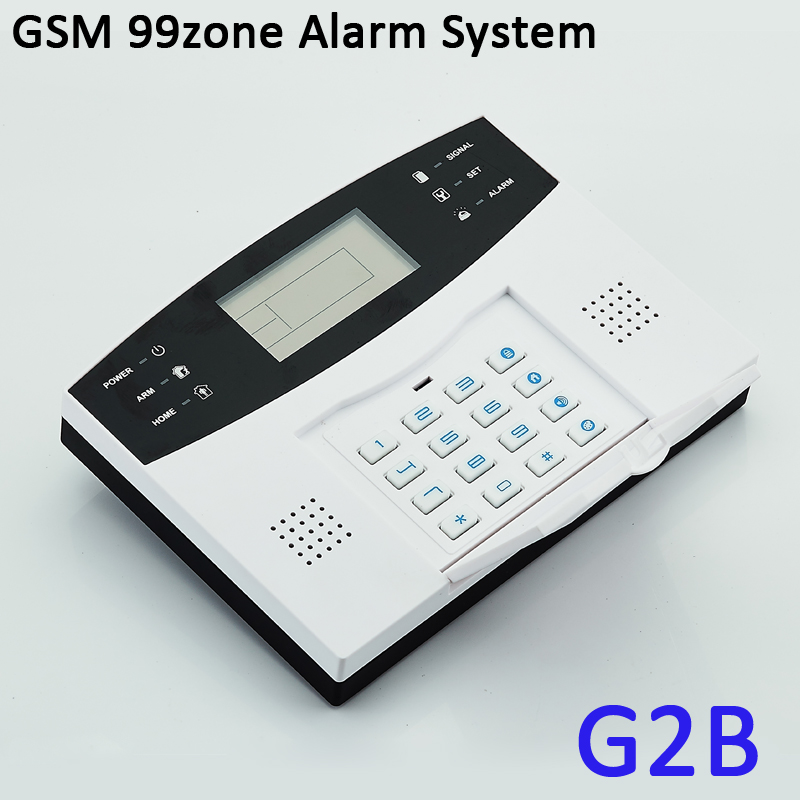

The GUARDIAN-CONNECTION alarm system is designed to support up to 99 wireless modules, giving you the flexibility to build a security and safety setup that matches the needs of a home, business, workshop, warehouse, or other professional site. All listed modules operate on the 433MHz frequency and are intended for use with the GUARDIAN-CONNECTION platform.

This compatibility range makes it possible to combine perimeter protection, indoor movement detection, fire and gas alerting, water leak monitoring, and practical control accessories within one system. Depending on the module selected, transmission distance, battery type, operating temperature, and other specifications vary, so choosing the right accessories for each area is important.

Wide Choice of Wireless Protection Modules

The system supports a broad selection of wireless accessories, allowing you to adapt installation to different risk points and operating environments.

Door and Window Protection

For entry-point monitoring, the GUARDIAN-CONNECTION system supports two door sensor options:

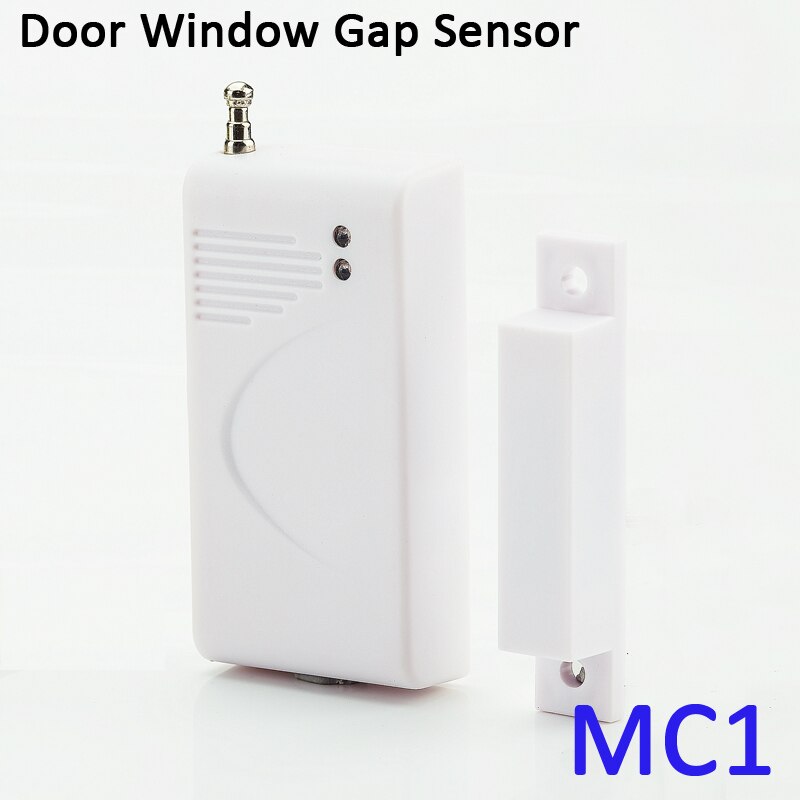

First-generation door/window sensor: powered by a 12V23A battery (not included), with 12 months of battery life, a 30-meter transmission distance, and an operating temperature of -10°C to +40°C.

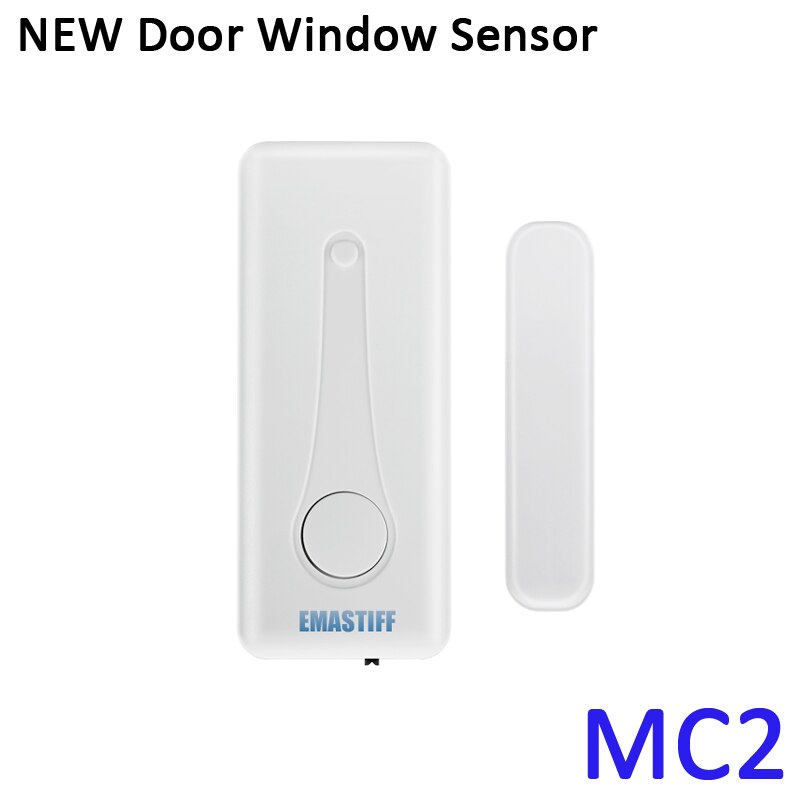

Latest-generation door sensor: powered by a CR2032 3V battery (included), also offering 12 months of battery life, a 30-meter transmission distance, and an operating temperature of -10°C to +40°C.

These modules are suitable for monitoring doors, windows, and other opening points where immediate status detection is required.

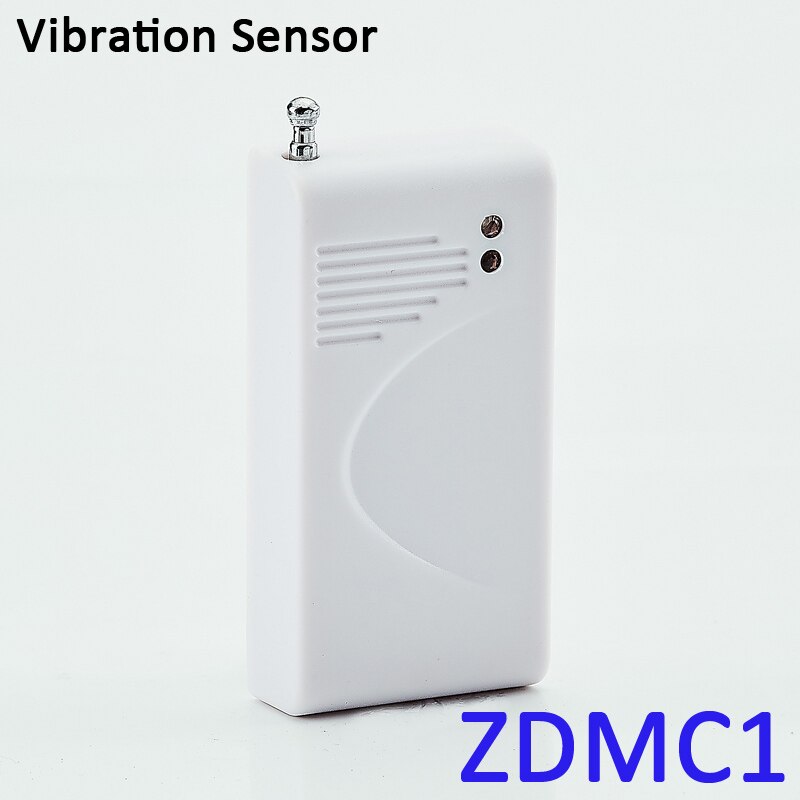

Vibration Detection

The vibration sensor adds another layer of protection for areas where impact or movement may need to be detected. It uses a 12V23A battery (not included), provides up to 12 months of battery life, supports a transmission distance of 80 meters, and operates from -10°C to +40°C.

Motion Detection Options

Several motion detector models are compatible with the system, allowing you to choose according to the environment and expected use.

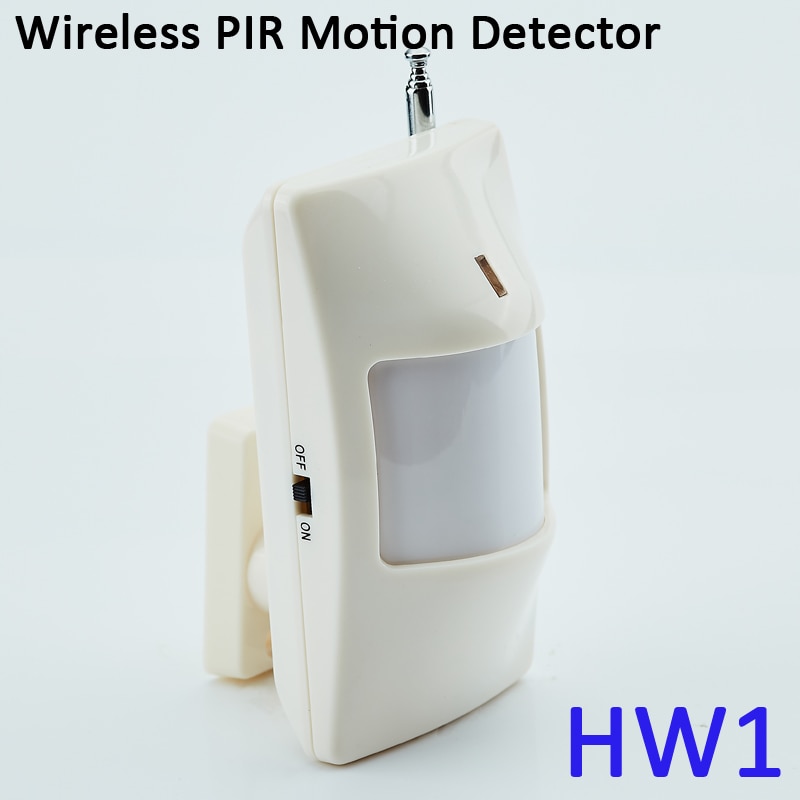

First-Generation Motion Detector

Battery: DC9V (not included)
Battery life: 6 months
Detection time: 0.3ms
Detection distance: 5 to 12 meters
Detection angle: 110° horizontal / 60° vertical
Transmission distance: 30 meters
Operating temperature: -10°C to +40°C

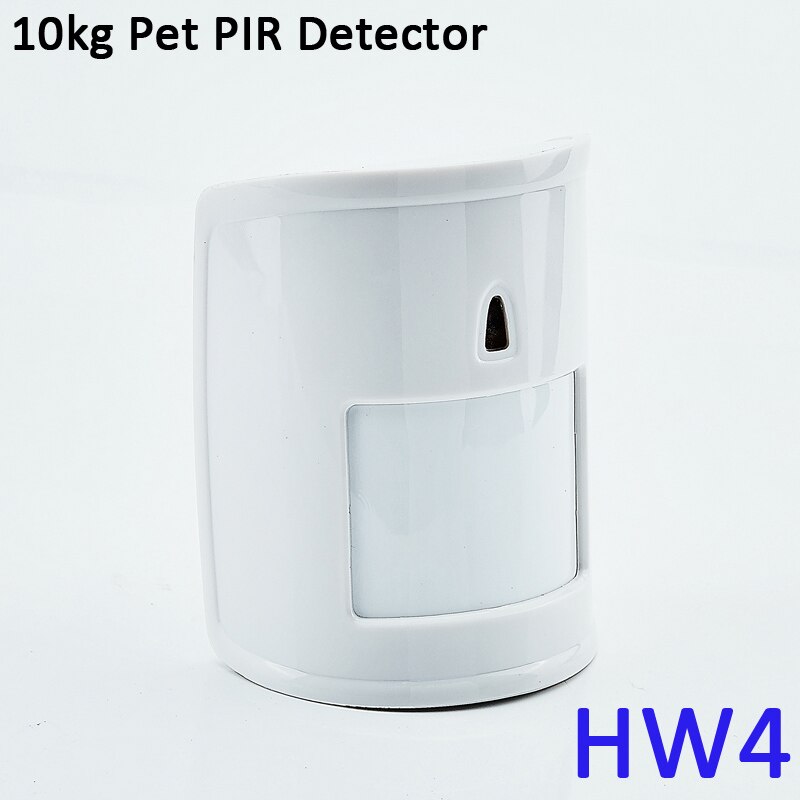

Pet-Immune Motion Detector

Ignores animals weighing up to 10 kg
Battery: DC9V (not included)
Battery life: 6 months
Detection distance: 10 to 12 meters
Detection angle: 110° horizontal
Transmission distance: 80 meters
Operating temperature: -10°C to +50°C

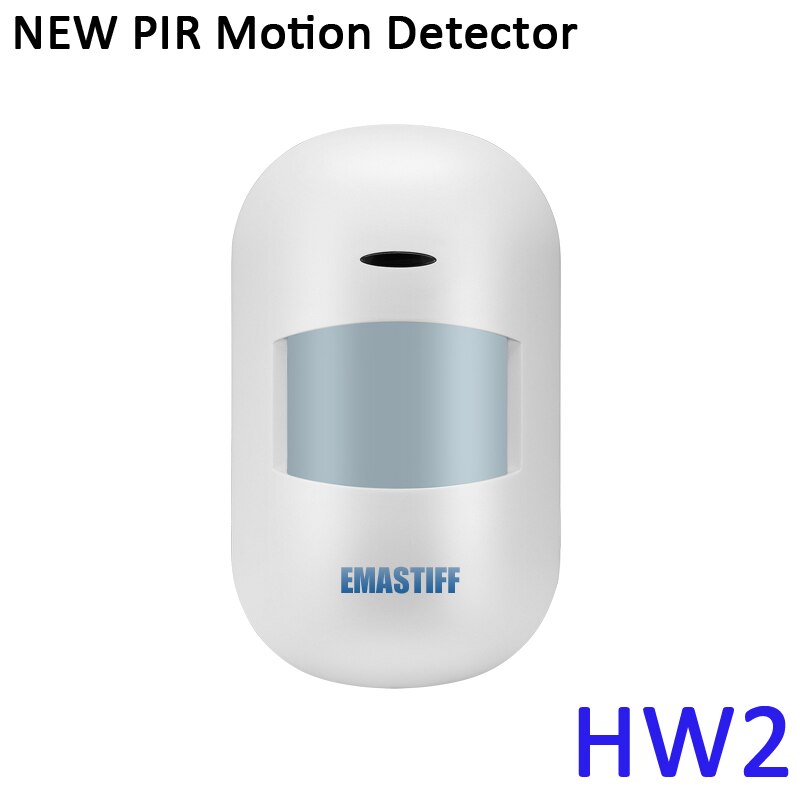

Latest-Generation Motion Detector

Battery: DC9V (not included)
Battery life: 6 months
Detection time: 0.3ms
Detection distance: 5 to 12 meters
Detection angle: 110° horizontal / 60° vertical
Transmission distance: 30 meters
Operating temperature: -10°C to +50°C

These options help adapt the system to standard indoor spaces as well as locations where pets may be present.

Safety Modules for Smoke, Gas, and Water

Beyond intrusion detection, the GUARDIAN-CONNECTION system can also be expanded with wireless modules dedicated to environmental safety.

Smoke Detectors

Two smoke detector versions are listed as compatible:

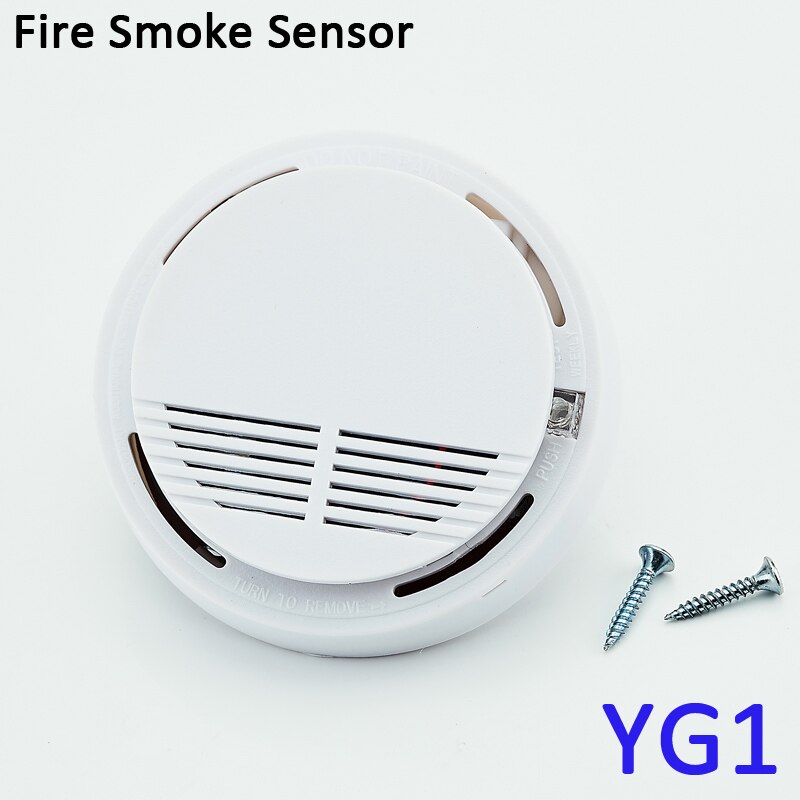

First-generation smoke detector: powered by a 9V battery (not included), with a 100-meter transmission distance, 0.3ms detection time, 75dB alarm volume, ABS material, and an operating temperature of -10°C to +40°C.

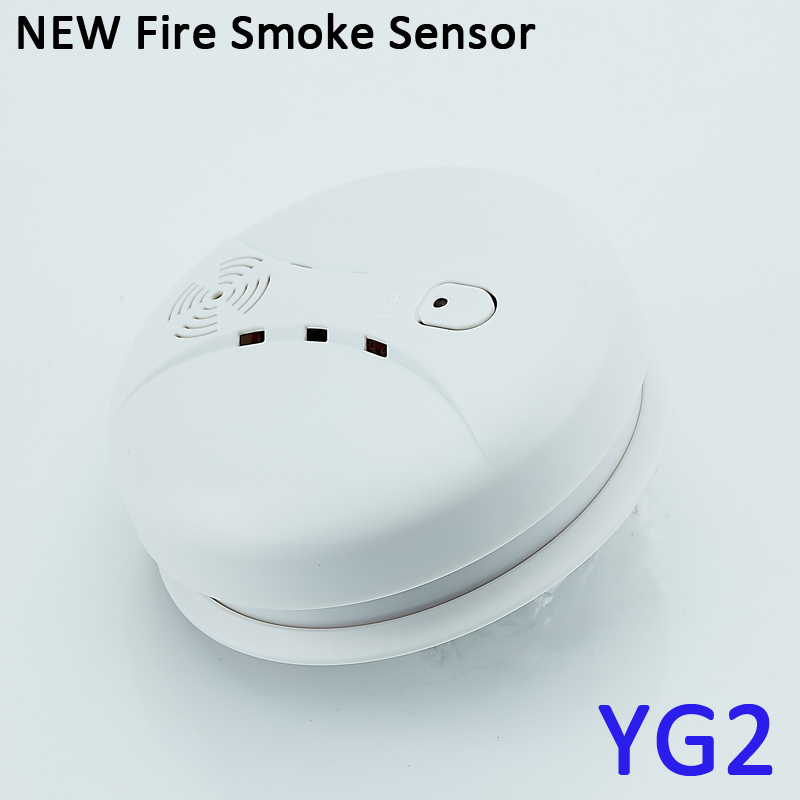

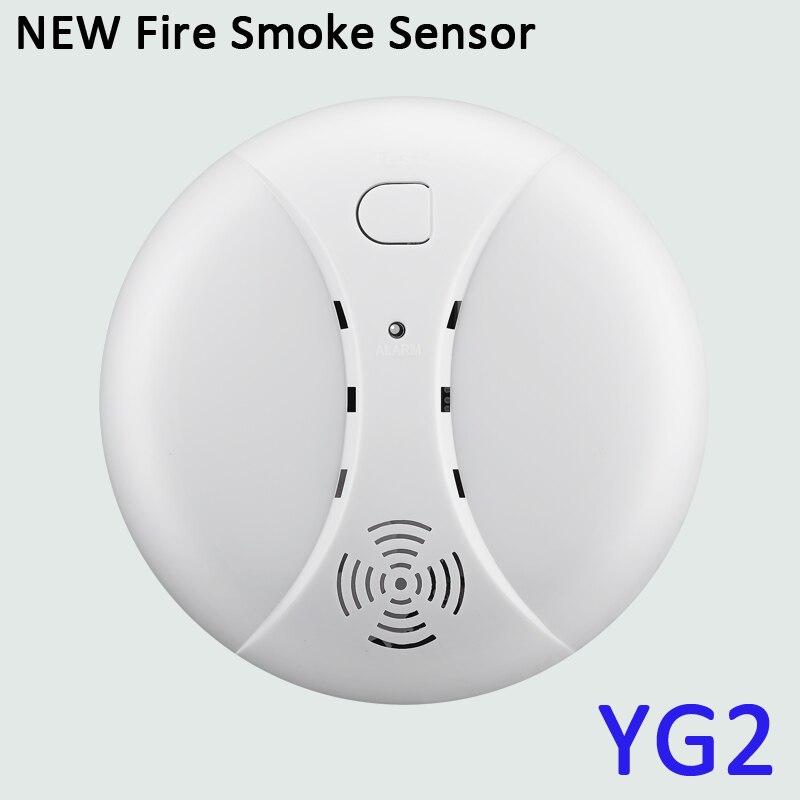

Latest-generation smoke detector: same specifications as the first-generation model, with enhanced internal components for better reliability.

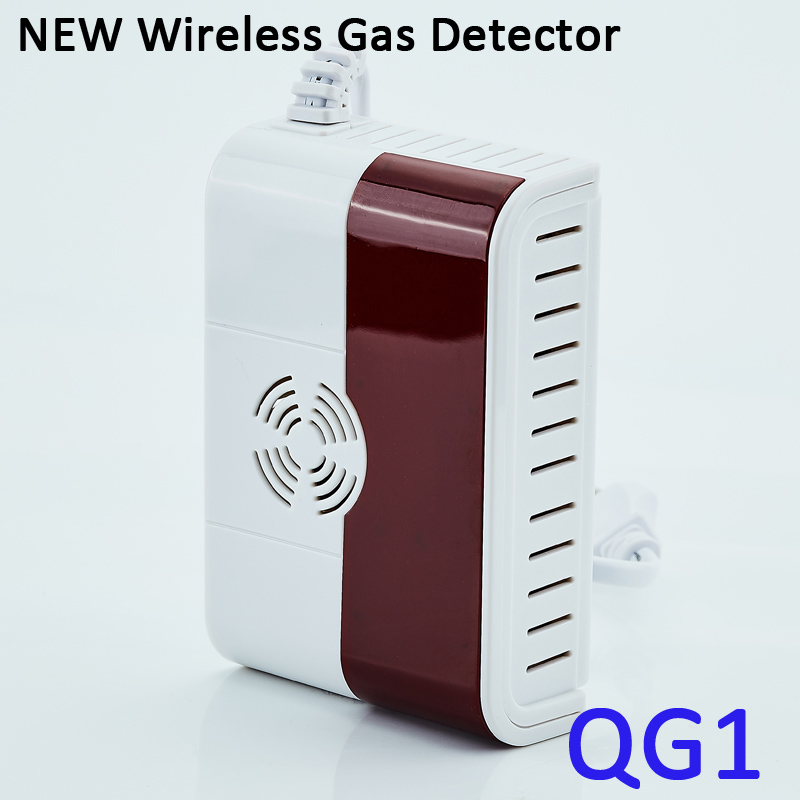

Multi-Gas Detector

The multi-gas detector is designed to detect natural gas, LPG, and coal gas. Its stated specifications are:

Transmission distance: 30 meters
Alarm volume: 85dB
Gas detection threshold: 0.1% LEL for methane, propane, and butane
Humidity range: 30% to 90%
Operating temperature: -10°C to +55°C

LEL refers to the Lower Explosive Limit, meaning the minimum gas concentration in air that can lead to combustion.

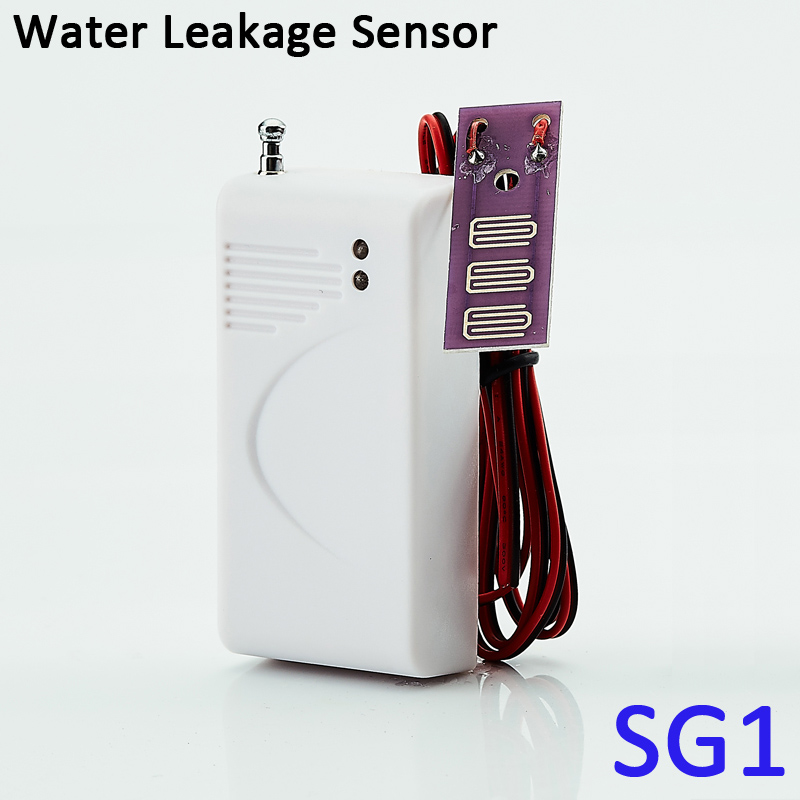

Water Leak Detector

For areas exposed to plumbing or equipment-related water risks, the water leak detector is also compatible. It uses a 12V23A battery (not included), offers up to 12 months of battery life, supports a transmission distance of 80 meters, and operates from -10°C to +40°C.

Control and Emergency Accessories

The system can also be expanded with practical control devices for daily operation and rapid alert triggering.

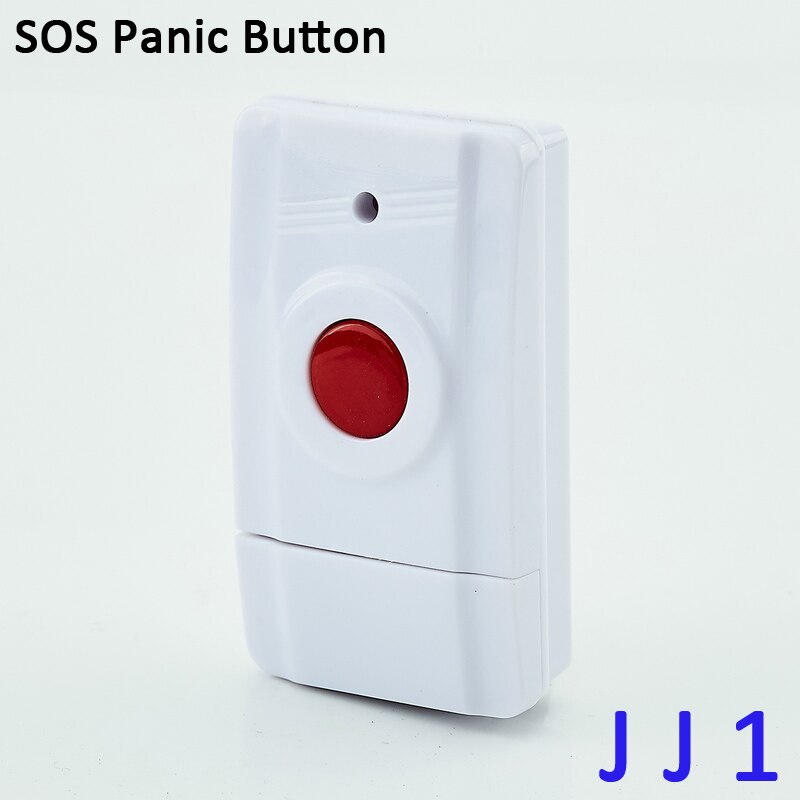

Panic Button

The panic button is intended for instant alarm triggering. It is powered by a 12V 23A battery (not included), offers a battery life of more than 12 months, supports a transmission distance of 80 meters, and operates between -10°C and +40°C.

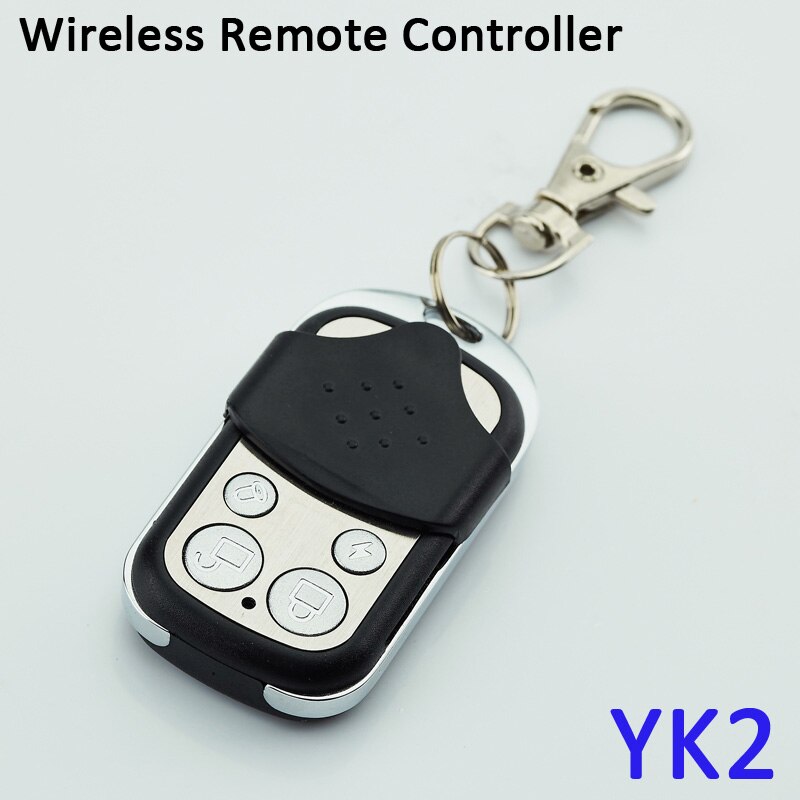

Remote Control Key Fob

The remote control uses a 12V 27A battery (not included), provides a battery life of more than 12 months, supports a transmission distance of 80 meters, and operates from -10°C to +40°C.

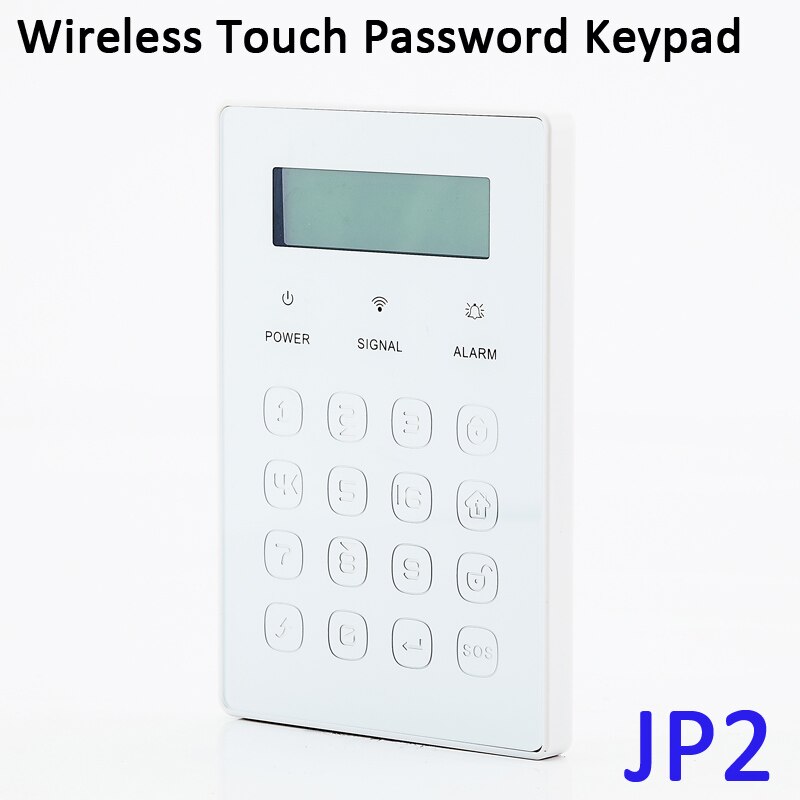

Wireless Numeric Keypad

The wireless numeric keypad is rechargeable via DC 5V. It offers a 50-meter transmission distance and an operating temperature of -10°C to +40°C.

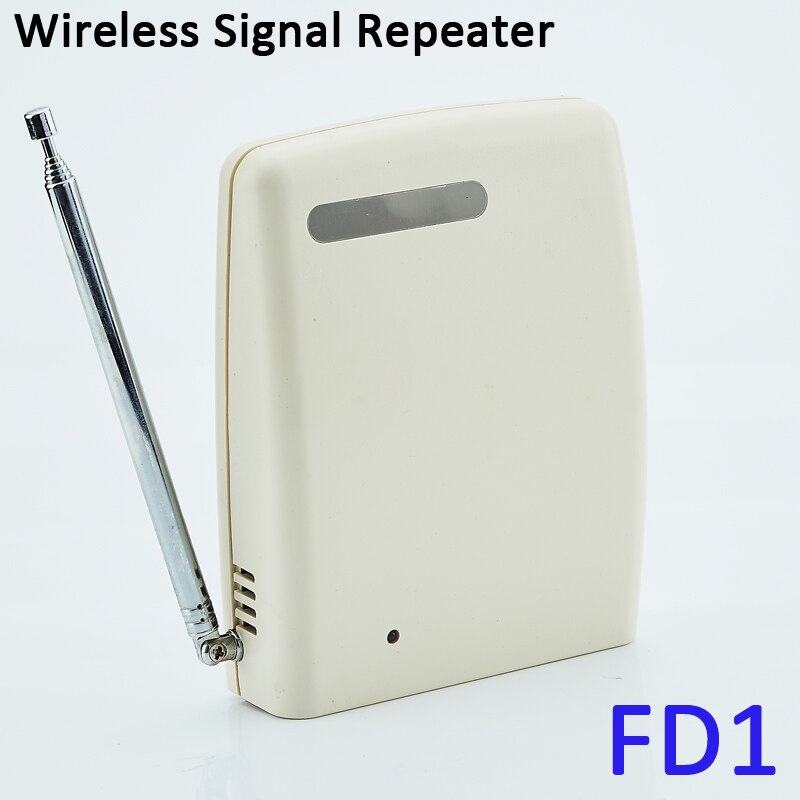

Long-Range Repeater for Extended Coverage

For larger properties or installations where signal extension is required, the system also supports a long-range signal repeater. This module includes a DC12V 500mAh battery, can support up to 30 modules per repeater, provides a 100-meter receiving range, and a broadcasting range of 500 to 1000 meters.

This can be especially useful when planning coverage across wider indoor or mixed-site layouts where standard module transmission distance may not be sufficient on its own.

Why This Compatibility List Matters

One of the main strengths of the GUARDIAN-CONNECTION alarm system is its modular design. Instead of being limited to a fixed set of accessories, you can build a more targeted installation by selecting only the modules that fit your environment. For example, one site may prioritize door contacts and motion detectors, while another may require smoke, gas, and water monitoring in addition to intrusion protection.

The ability to connect up to 99 wireless devices gives the system strong expansion potential. This is particularly useful for users who want to start with a basic setup and add more coverage over time, or for larger sites that need multiple detection points across different rooms or zones.

Important Compatibility and Planning Considerations

All modules listed here are specified as compatible with the GUARDIAN-CONNECTION alarm system and operate on 433MHz. However, each accessory has its own power requirements and operating characteristics. Before selecting modules, it is worth checking:

Battery type and whether it is included
Transmission distance required for the installation area
Operating temperature for the intended environment
Detection range and angle where relevant
Whether a repeater is needed for larger properties

This helps ensure the final system layout is both practical and consistent with the site’s conditions.

Buyer Protection by Europe-Connection

All products are covered by Buyer Protection by Europe-Connection, including:

Free international shipping
Up to 5 years warranty
Satisfaction guaranteed or your money back

For buyers looking to expand an existing GUARDIAN-CONNECTION installation, this compatibility list provides a clear overview of the available wireless modules and their stated specifications, making it easier to choose the right accessories for reliable day-to-day protection and monitoring.

Recommended Use Cases

A homeowner can expand a GUARDIAN-CONNECTION installation by adding door sensors on main entry points, a pet-immune motion detector in shared living areas, and a smoke detector for key circulation spaces. In a small business, vibration sensors, motion detectors, and remote controls can help secure offices, stock areas, and access points while keeping daily operation simple. For utility-sensitive environments such as kitchens, boiler rooms, or technical spaces, adding a multi-gas detector and water leak detector can strengthen overall site safety. On larger properties, a long-range repeater can help extend coverage where standard wireless distances may be limiting.

Pros and Cons

Pros

Supports up to 99 wireless modules
Wide range of compatible security and safety accessories
All listed modules use 433MHz
Long-range repeater available for larger installations
Includes options for smoke, gas, and water leak monitoring

Cons / Considerations

Many modules require batteries that are not included
Transmission distance varies significantly by module
The repeater supports up to 30 modules per unit, not the full 99-device system capacity

FAQ

How many wireless modules can the GUARDIAN-CONNECTION alarm system support?

The GUARDIAN-CONNECTION alarm system supports up to 99 wireless modules.

What frequency do the compatible GUARDIAN-CONNECTION modules use?

All modules listed for this system operate on the 433MHz frequency.

Which types of modules are compatible with the GUARDIAN-CONNECTION system?

The compatible range includes door/window sensors, vibration sensors, motion detectors, smoke detectors, a multi-gas detector, a water leak detector, a panic button, a remote control key fob, a wireless numeric keypad, and a long-range signal repeater.

Does the system support a pet-immune motion detector?

Yes. One compatible motion detector is specified as pet-immune and ignores animals weighing up to 10 kg.

Can I extend the wireless range of my GUARDIAN-CONNECTION installation?

Yes. A compatible long-range signal repeater is available. It supports up to 30 modules per repeater, with a receiving range of 100 meters and a broadcasting range of 500 to 1000 meters.

Are batteries included with the compatible modules?

It depends on the module. For example, the latest-generation door sensor includes a CR2032 3V battery, and the long-range repeater includes a DC12V 500mAh battery. Several other modules require batteries that are not included.
