Description of the article « EDD-24XT JJN Digital NLJD for Hidden Electronic Components »
An NLJD for investigating electronics that do not transmit
The EDD-24XT JJN Digital non-linear junction detector searches for semiconductor components in objects, furniture and surfaces. It complements an RF inspection when a device is off, disconnected or storing information without a wireless link.
The detector generates its own signal and looks for a harmonic response. A response identifies a place to investigate; it does not reveal whether the electronics are authorised or what they do.
Comparing the second and third harmonics

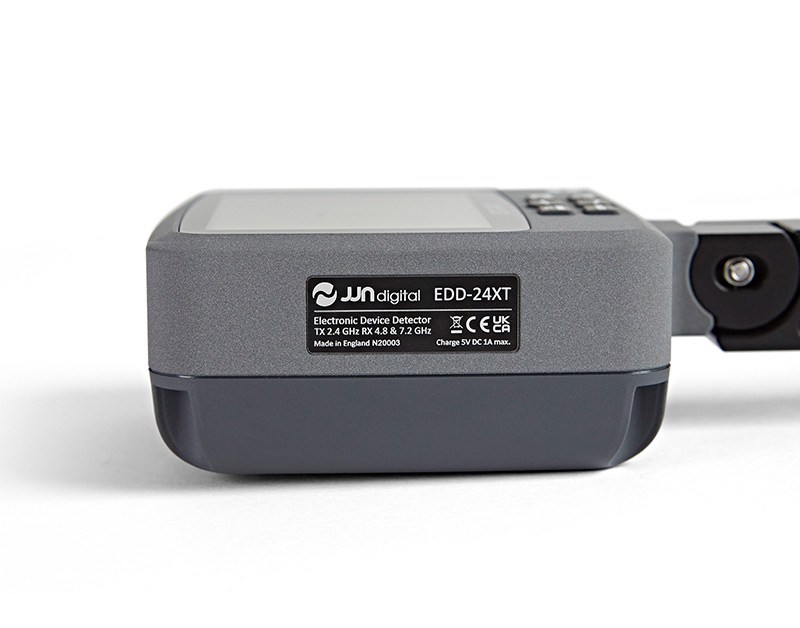

The EDD-24XT transmits at 2.4 GHz with a stated maximum output of 4 W. Reception at 4.8 and 7.2 GHz allows comparison of second- and third-harmonic behaviour.

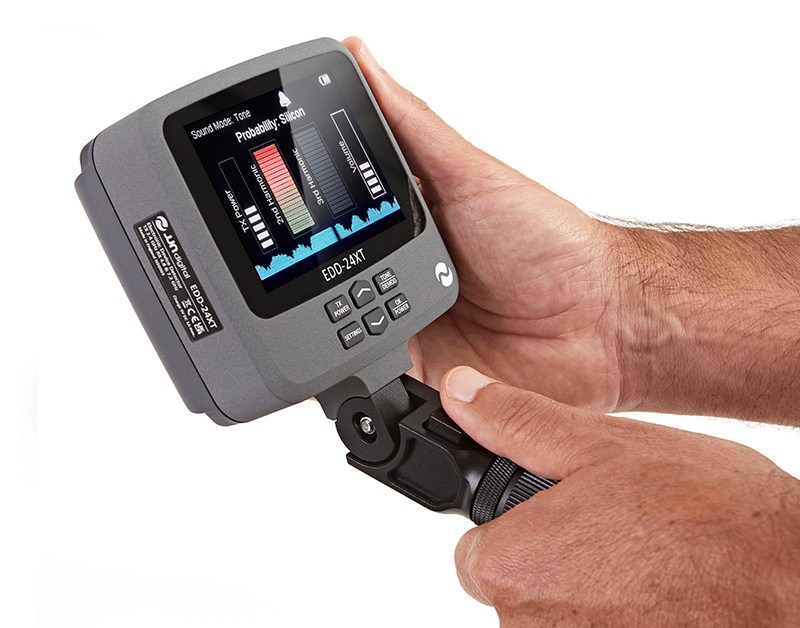

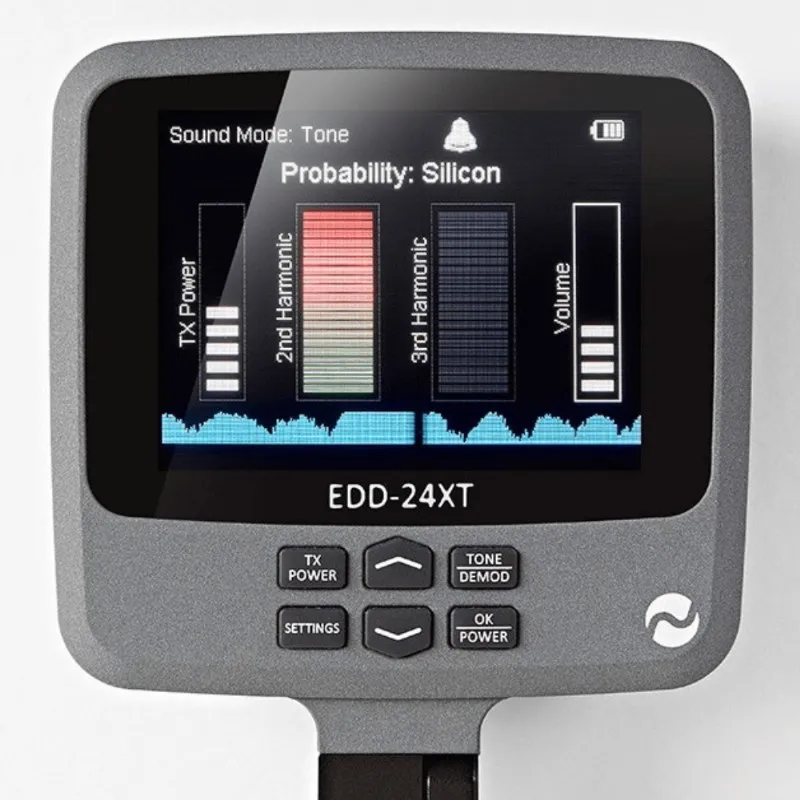

The Silicon / Metal indication estimates the nature of that response. Oxidised metal joints and ordinary electronic equipment can also react. Follow a consistent inspection pattern and examine the object rather than treating the indication as a verdict.
Reference detection distance and real inspection conditions
The stated reference target is a Nano SIM at up to approximately 20 cm under suitable conditions. This is not a universal detection distance. Target orientation, intervening materials and settings affect the response.
A progressive sweep helps compare adjacent areas and return to repeatable responses. Use physical inspection to establish the function of any components found.
Adjustable pole, head and audio feedback

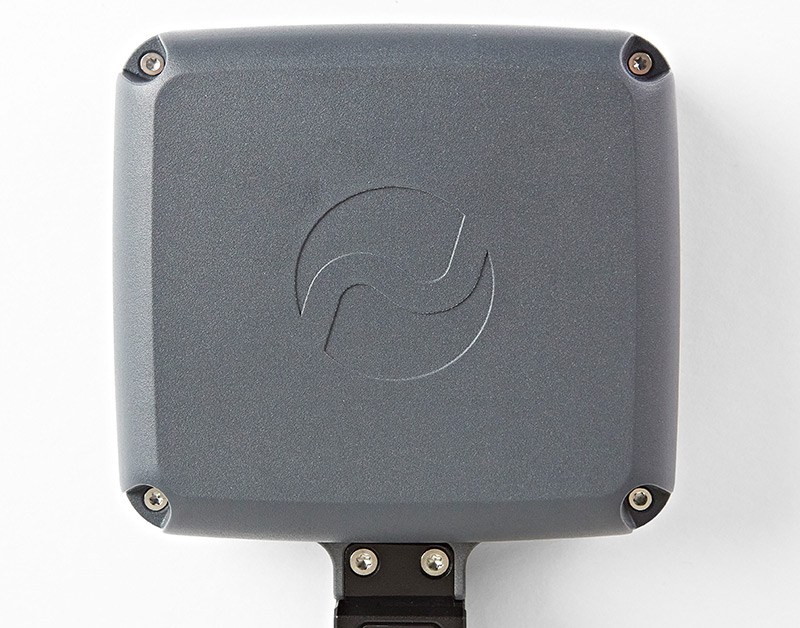

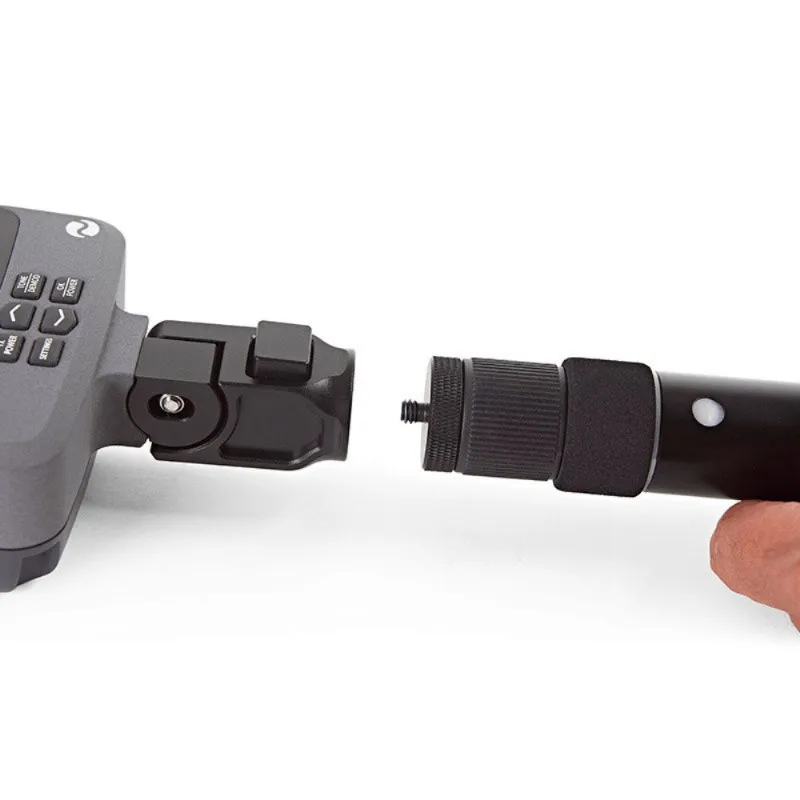

The pole adjusts from 30 to 140 cm and the head has five positions over 90°. This helps position it against elevated furniture or lower surfaces. Observe the necessary precautions near electrical installations.

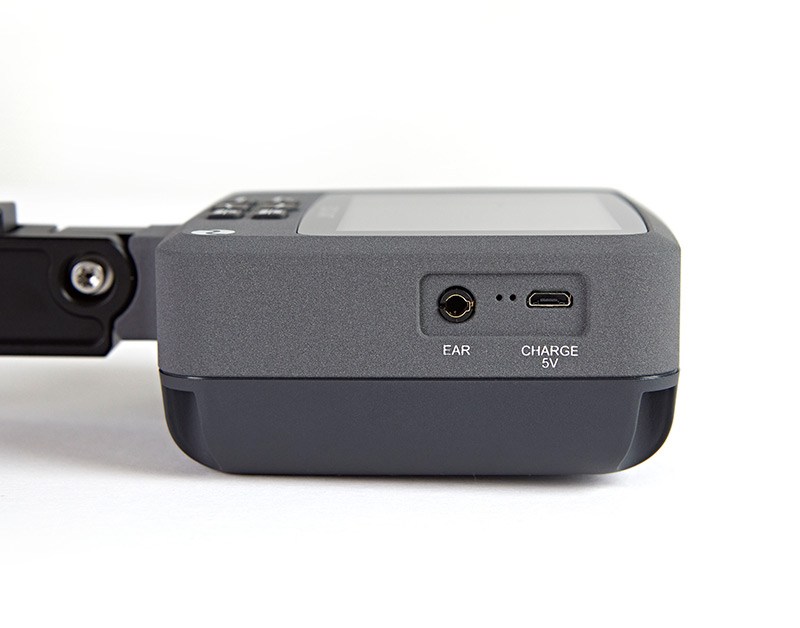

The stated weight is under 900 g including the pole. Two removable 200 g counterweights alter the balance and the weight actually handled. Tone and Demod audio is available through the speaker or earphones.
A complementary tool for a TSCM equipment set

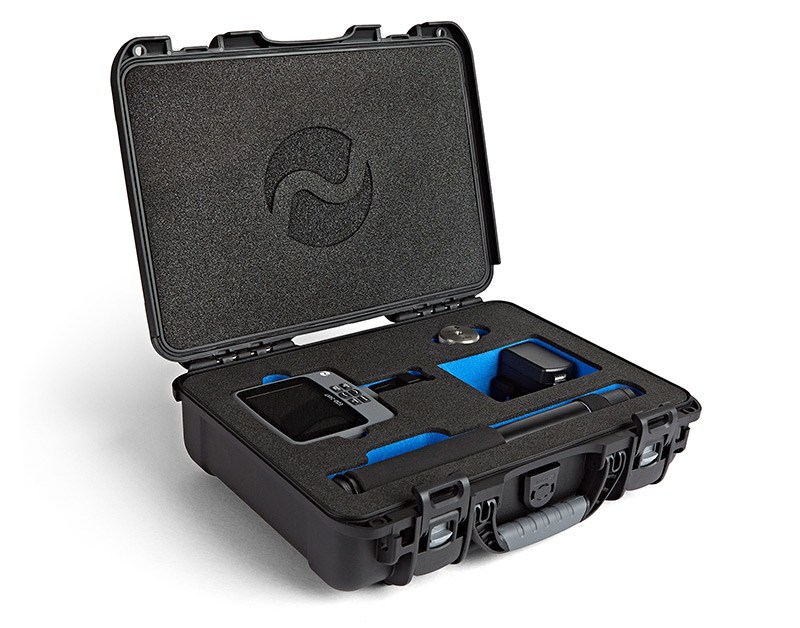

The integrated battery has a stated life of up to 4.5 hours depending on use. The supplied charger accepts 110–240 V and provides 5 V DC. The pole, counterweights, earphones and case form part of the set.
A radio monitor or spectrum analyser examines transmissions; the NLJD searches for electronic components. Combining these methods with physical inspection addresses different targets within the same survey.
Inspection examples
Furniture and object inspections
Examine repeatable responses and distinguish legitimate electronics from components requiring investigation.
Silent cameras and recorders
Search for semiconductor responses when equipment does not produce a detectable radio transmission.
Less accessible surfaces
Adjust the pole and head to the surface and repeat the examination where a response appears.
Strengths and limitations
What this model offers
The search does not depend on a circuit being powered. Harmonic comparison adds information to guide a physical check.
The adjustable pole, head and counterweights help adapt the instrument to the inspected surface.
What to consider
A response does not confirm the presence of a spying device. Authorised electronics and metal junctions can produce indications.
Distance and battery life depend on conditions. The reference Nano SIM test and the added counterweight mass must be considered when planning an inspection.
Frequently asked questions
Can the EDD-24XT detect a switched-off device?
Yes. It searches for the response of semiconductor junctions rather than a transmission from the device. It can help locate powered-down, standby or disconnected circuits, depending on access and inspection conditions.
What is the difference between an NLJD and an RF detector?
An RF detector searches for active radio emissions. An NLJD transmits its own signal and analyses harmonic responses from materials in the inspected area. The methods complement each other.
What does Silicon or Metal mean?
The indication estimates the response type by comparing received harmonics. Oxidised metals and metal assemblies may also respond, so the indication does not replace physical verification.
Can it search for a camera recording to a memory card?
Yes. Its electronic components can be searched for even when the camera does not transmit. Detection depends on the configuration, surrounding materials and inspection distance.
Is the pole suitable for elevated areas?
The pole adjusts from 30 to 140 cm and the head has five positions over 90°. This facilitates access to surfaces but does not replace precautions near electrical circuits.
What is the battery life and what is included?
Stated battery life reaches 4.5 hours depending on use. The set includes the pole, two 200 g counterweights, charger, earphones and a carrying case.
Specifications of the article « EDD-24XT JJN Digital NLJD for Hidden Electronic Components »
- Type: Non-linear junction detector, NLJD
- Model: JJN Digital EDD-24XT
- Targets: Semiconductor components, including unpowered circuits
- Transmit frequency: 2.4 GHz
- Maximum transmit power: Up to 4 W
- Second-harmonic reception: 4.8 GHz
- Third-harmonic reception: 7.2 GHz
- Indication: Silicon / Metal probability
- Adjustable pole: 30 to 140 cm
- Head: 5 positions over 90°
- Stated battery life: Up to 4.5 hours depending on use
- Battery: Integrated rechargeable lithium-polymer
- Stated weight: Less than 900 g including the pole
- Audio modes: Tone and Demod
- Accessories: Pole, 2 counterweights of 200 g, charger, earphones and carrying case
- Principle: Analysis of harmonic responses induced by the NLJD transmission
- Stated reference target: Nano SIM at up to approximately 20 cm, subject to conditions
- Audio output: Built-in speaker or earphones
- Balance adjustment: 2 removable counterweights of 200 g
- Charger: 110–240 V mains input, 5 V DC output
