Description of the article « CAM-GX5 JJN Digital Mobile-Network and Wi-Fi Detector »
A monitor for mobile-network and wireless activity
The CAM-GX5 JJN Digital mobile-network and Wi-Fi detector observes supported mobile transmissions and activity at 2.4 and 5 GHz. It suits inspections focused on active phones, communicating equipment and intermittent emissions.
Its selected bands concentrate attention on those uses. The monitor shows when activity appears and how its level changes, without automatically identifying the purpose of the transmitting device.
Regional mobile-band selection
Supported bands cover compatible 2G, 3G, 4G and 5G activity. Select the region of use before starting, then compare levels with known equipment.
A mobile-network microphone, phone or data-transmitting tracker may produce detectable activity. It must be emitting during the observation. The 5G designation does not imply coverage of every band used worldwide.
Separate mobile and wireless histories
The mobile-network log stores up to 4 000 events with date, time, band, duration and level. List and graph views support review, and USB export preserves the event record.
The 2.4/5 GHz history shows the last 24 hours of activity. It helps examine intermittent wireless exchanges but is not a detailed network inventory or a way to decrypt their contents.
Examining a communicating tracker
A compatible tracker in a vehicle may be detected while sending information over a supported mobile band. GPS reception itself is not detected. Longer observation may be necessary if communication happens only at intervals or after an event.
Compare readings from several positions and relate event times to observations. Audible or vibration alerts support the search. Nearby devices must be considered before attributing a transmission to the inspected vehicle or room.
Portable controls for a targeted survey

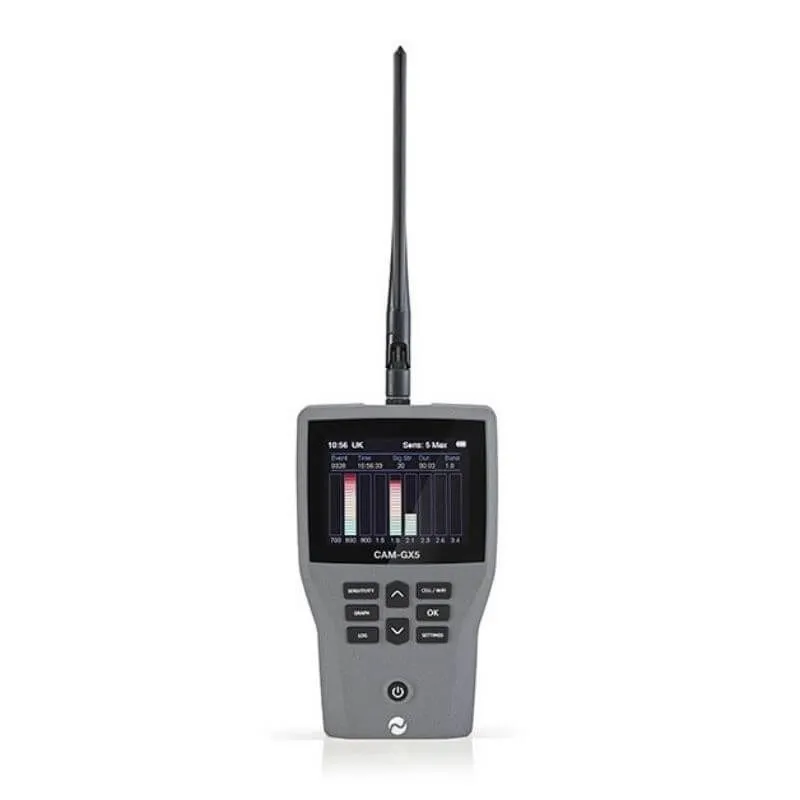

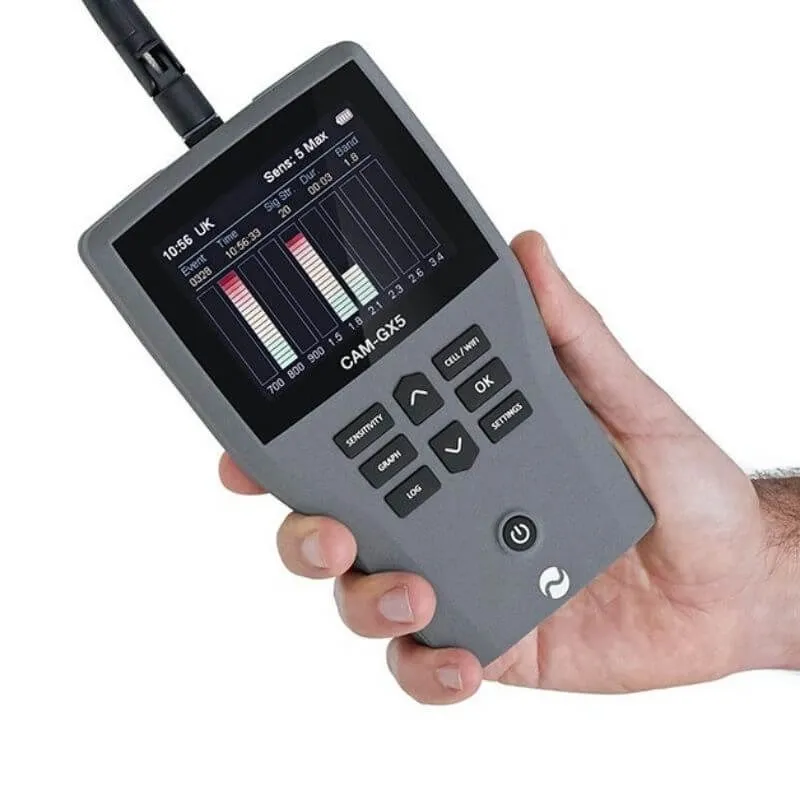

The 3.5-inch colour screen, articulated antenna and 20-level indicators per band provide a portable activity display. The integrated battery, aluminium housing, international charger and case accompany use between sites.
The CAM-GX5 does not replace a broadband RF detector, and wireless detection at 6 GHz is not specified. A spectrum analyser can provide another view of the signals, while an NLJD supports silent-electronics searches.
Inspection examples
Sensitive-area mobile activity checks
Set the appropriate region and compare events with authorised equipment before investigating a signal.
Vehicle tracker searches
Observe compatible mobile transmissions and examine the bursts recorded in the history.
2.4 and 5 GHz observation
Review the timing and evolution of wireless activity to select sources for further checks.
Strengths and limitations
What this model offers
Regional band selection and separate histories provide a targeted view of mobile and wireless activity.
The portable format, alerts and USB export support moving searches and inspection documentation.
What to consider
Broadband coverage and 6 GHz wireless detection are not specified for this model. Supported 5G bands are limited by its actual coverage.
Detection requires an emission and an interpretation of the environment. The instrument does not jam or decrypt communications or establish unauthorised use by itself.
Frequently asked questions
Is the CAM-GX5 a broadband RF detector?
It specialises in supported mobile-network bands and 2.4/5 GHz activity. A broadband detector provides complementary coverage for searches over a wider RF range.
Can it detect a phone in flight mode?
Detection depends on active emissions. A phone that is not transmitting can remain undetected; compatible activity may be detected if Wi-Fi or Bluetooth remains active.
Can it search for a GPS tracker?
It can detect compatible mobile or wireless transmissions while the tracker communicates. It does not detect GPS reception itself or a tracker that only records locally.
Are the Wi-Fi and mobile-network histories the same?
No. The mobile-network log holds up to 4 000 events. The 2.4/5 GHz detection mode shows the last 24 hours of activity graphically.
Does 5G compatibility cover every 5G frequency?
No. Compatibility depends on supported bands and the selected region. Millimetre-wave detection requires equipment whose frequency range covers those emissions.
Can an authorised device cause a detection?
Yes. Phones, routers and connected accessories can be detected. Comparison with known equipment and physical investigation of the source help interpret the alert.
Specifications of the article « CAM-GX5 JJN Digital Mobile-Network and Wi-Fi Detector »
- Type: Mobile-network and wireless activity monitor
- Model: JJN Digital CAM-GX5
- Mobile networks: 2G, 3G, 4G and 5G on supported bands
- Mobile-band coverage: Region-of-use selection
- Wireless bands: 2.4 GHz and 5 GHz
- RF targets: Phones and devices using supported bands
- Mobile-network memory: Up to 4 000 events
- Mobile-network history: Date, time, band, duration and level
- 2.4 / 5 GHz history: Last 24 hours of activity

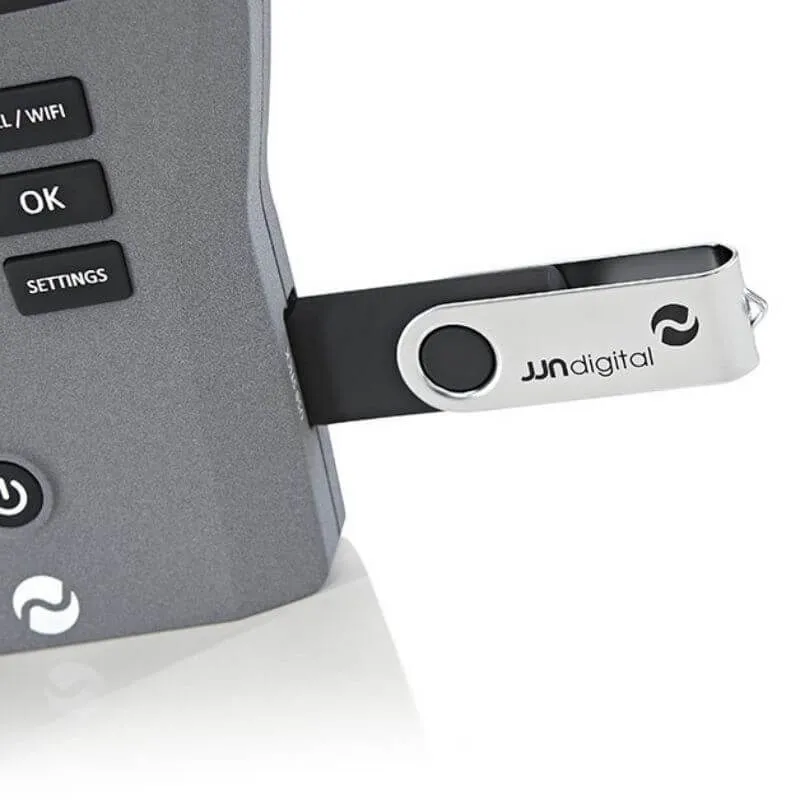

- Export: Events to a USB drive
- Screen: 3.5-inch colour TFT

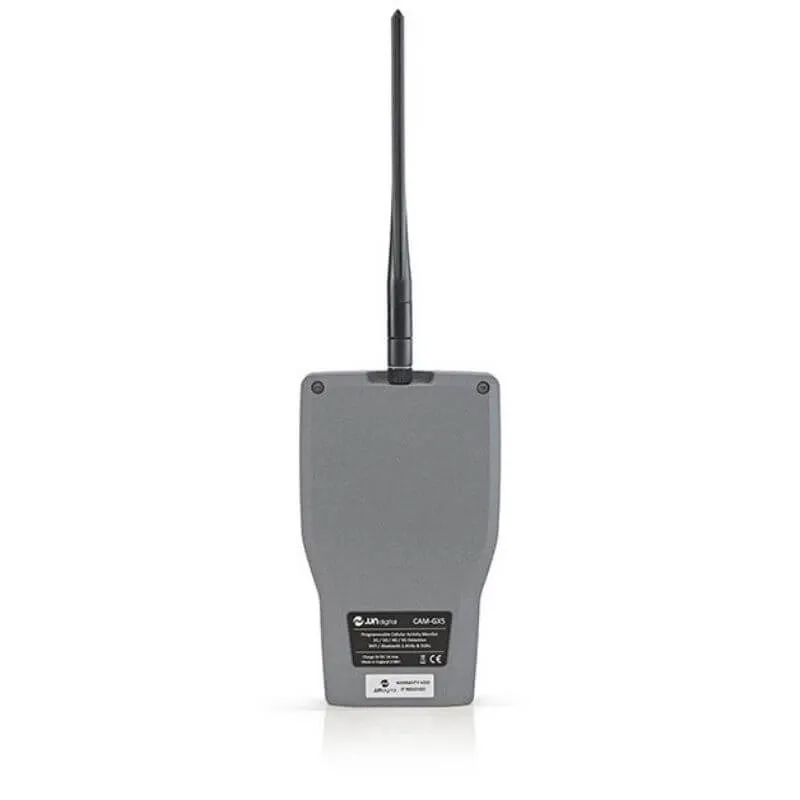

- Antenna: Adjustable articulated antenna
- Alerts: Audible and vibration

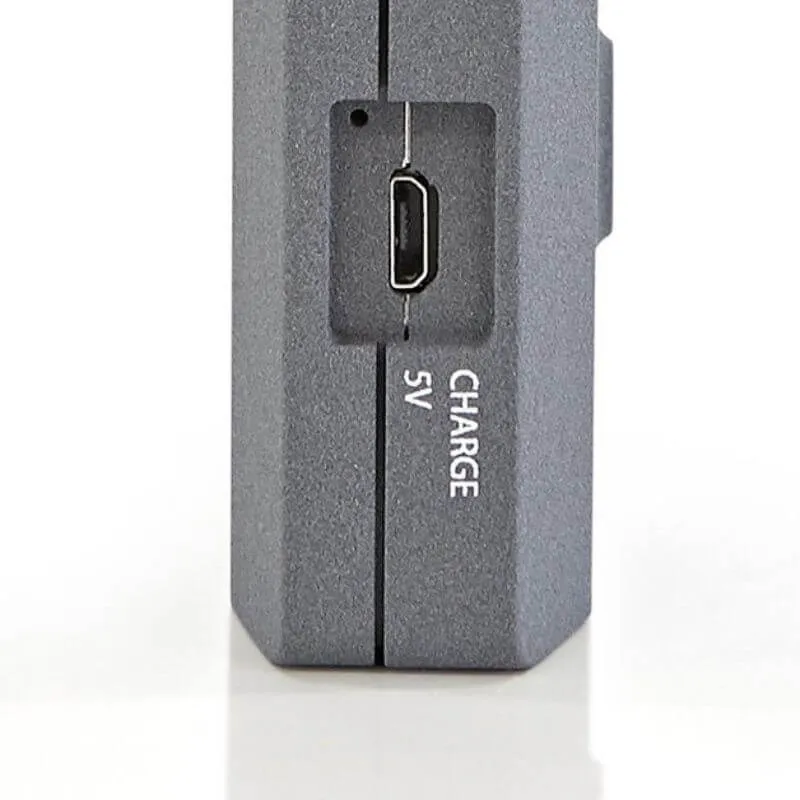

- Battery: Integrated rechargeable lithium-polymer
- Housing: Machined aluminium
- Level indication: 20 levels per band
- Mobile-network review: Events in a list or graph
- Time-based detection: Brief and intermittent transmissions
- 6 GHz Wi-Fi bands: Not specified in the wireless coverage

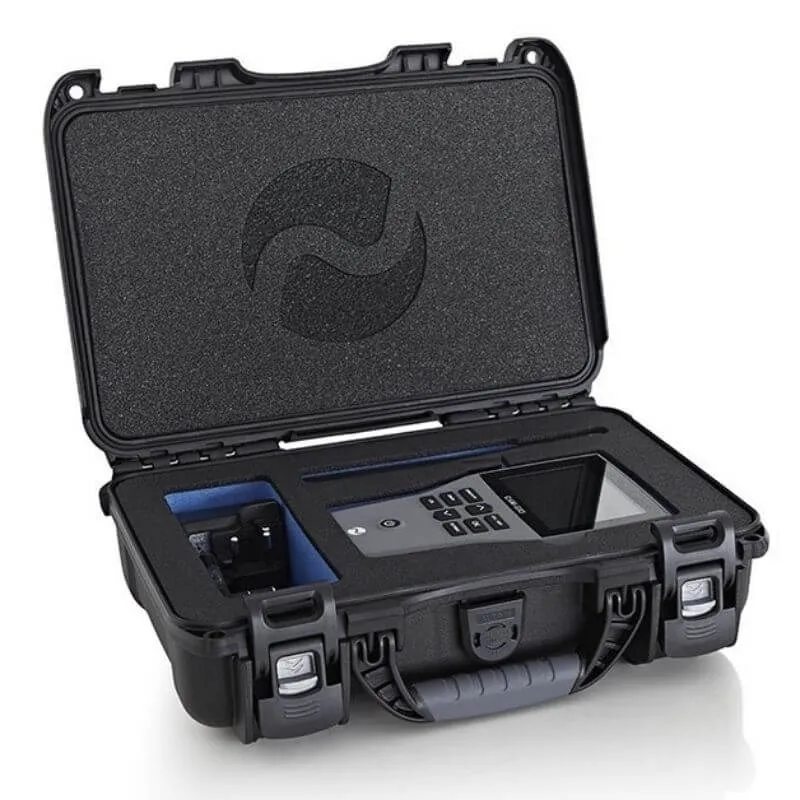

- Transport: International charger and carrying case supplied
- Function: Activity detection, without jamming or decryption
