Description of the article « HSA-Q1 JJN Digital Spectrum Analyser, 1 MHz to 13.44 GHz »
A spectrum analyser for examining RF activity
The HSA-Q1 JJN Digital spectrum analyser displays radio activity across 1 MHz to 13.44 GHz and shows how it changes with time. During a TSCM inspection, it helps investigate a detected emission and compare the surroundings with a reference survey.
A spectrum view supports the distinction between continuous activity and intermittent signals. The operator can select a smaller frequency area for examination before investigating the source.
From a full sweep to a focused view

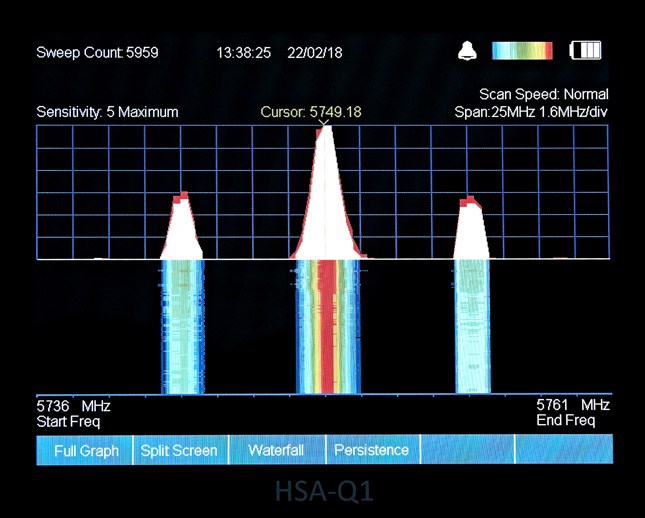

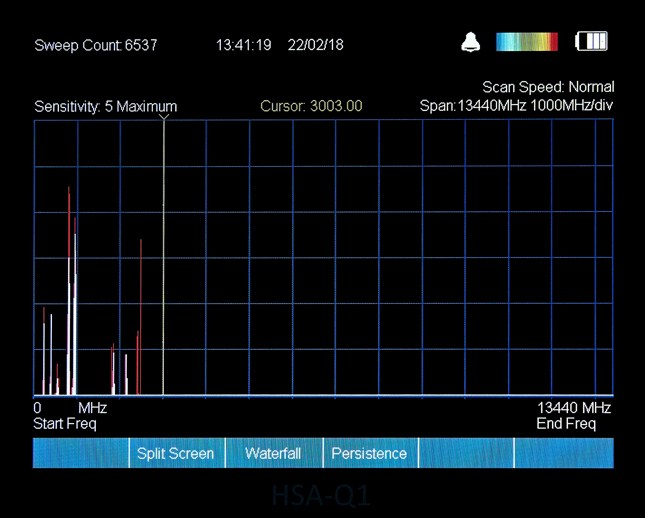

The stated full-sweep time is 0.5 seconds. This helps observe activity across a broad range, including brief transmissions. The displayed span can then be reduced to 25 MHz to concentrate on a signal.
Sensitivity has five adjustable levels. Stated values reach −80 dBm during sweeping and −100 dBm in direct tuning. Choose the setting to suit the environment: strong surrounding signals and a weak-signal search call for different measurement conditions.
Waterfall and Persistence displays
Waterfall, or the spectrogram, represents changes in the spectrum over time. It helps examine successive bursts, frequency changes and activity that appears only occasionally.
Persistence provides another view of behaviour across repeated sweeps. An unfamiliar pattern must still be compared with authorised equipment and investigated; it does not identify a spying device by itself.
Background comparison and compatible audio demodulation

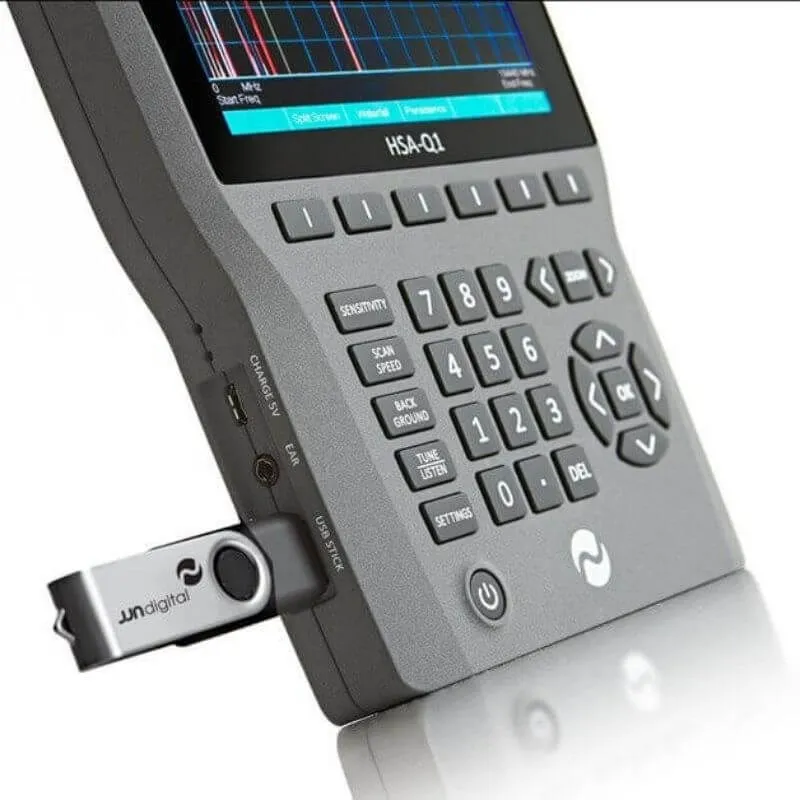

Background memory preserves an RF reference for a later comparison. Similar measurement positions and conditions make differences more useful. Sweep data can be saved to a USB drive with a date and time.
Tune & Listen selects a signal for AM, wide FM or narrow FM demodulation when compatible. Audio is available through the speaker or earphones. It does not decrypt protected digital communications or reveal the content of every wireless network.
Field use on a stand or in the hand

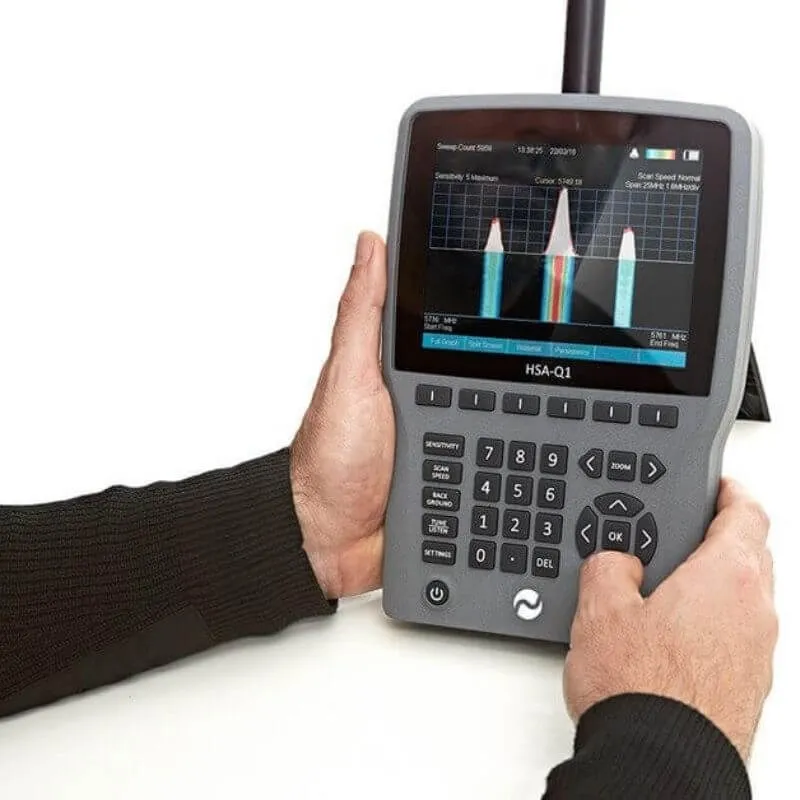

The 6-inch screen supports curve examination with the instrument held or resting on its retractable stand. The Multi-Element and telescopic antennas adapt reception within their respective capabilities.
The stated weight is 1.3 kg and battery life is approximately four hours depending on use. Connecting the supplied charger allows extended operation. An RF monitor can complement event observation, while an NLJD supports the search for silent electronics.
Inspection examples
RF environment surveys
Compare the office spectrum with known devices and select emissions for closer examination.
Repeat inspections
Use Background with comparable positions and conditions to investigate a genuine change.
Intermittent signal investigation
Observe time-based behaviour and save sweep data for comparison with events recorded during the inspection.
Strengths and limitations
What this model offers
Waterfall, Persistence and Background provide different ways to examine and compare activity.
USB recording, compatible audio demodulation and the stand support both field observation and later review.
What to consider
Spectrum traces require technical interpretation. An unfamiliar emission does not automatically reveal a spying device.
Battery life depends on use and weight matters on longer inspections. Unpowered or non-transmitting components need physical inspection or an NLJD.
Frequently asked questions
How does the HSA-Q1 differ from an RF detector?
An RF detector helps indicate the presence and level of emissions. The HSA-Q1 displays their frequency distribution and time-based behaviour for closer examination.
What is the waterfall display used for?
It represents signal changes over time, helping an operator observe bursts, intermittent emissions and frequency changes during an inspection.
How does Background memory work?
It stores a reference RF environment for comparison with a later survey. Changes require interpretation: a new authorised device can also alter the spectrum.
Does Tune & Listen allow every communication to be heard?
No. AM or FM demodulation helps characterise compatible signals. It does not decrypt protected digital communications or the content of Wi-Fi and mobile networks.
Can the HSA-Q1 find a switched-off device?
A switched-off device or one without radio transmission produces no RF signal to analyse. An NLJD or a physical inspection provides a complementary search method.
Can inspection measurements be saved?
Yes. Sweep data can be saved to a USB drive with a date and time, supporting comparison and documentation of observations.
Specifications of the article « HSA-Q1 JJN Digital Spectrum Analyser, 1 MHz to 13.44 GHz »
- Type: Portable RF spectrum analyser
- Model: JJN Digital HSA-Q1
- Frequency range: 1 MHz to 13.44 GHz
- Stated full-sweep time: 0.5 seconds
- Minimum display span: 25 MHz
- Sensitivity: Adjustable across 5 levels
- Stated sweep sensitivity: Up to −80 dBm
- Stated direct-tuning sensitivity: Up to −100 dBm
- Display modes: Waterfall / spectrogram and Persistence
- Demodulation: AM, wide FM and narrow FM
- Comparison: Background memory
- Recording: Sweep data to a USB drive
- Screen: 6-inch colour TFT
- Stated battery life: Approximately 4 hours depending on use
- Stated unit weight: 1.3 kg
- Antennas: Multi-Element and telescopic
- Tuning mode: Tune & Listen on a selected signal
- Audio output: Built-in speaker or earphones
- Battery: Integrated rechargeable lithium-polymer
- Extended operation: Possible with the supplied charger connected
- Positioning: Handheld use or retractable stand
