Description of the article « PRO-W12DX JJN Digital Pocket RF Detector up to 12 GHz »
A pocket RF detector for active-signal searches
The PRO-W12DX JJN Digital pocket RF detector combines radio detection, event recording and assistance with locating a source. Its compact format suits moving inspections for wireless microphones, connected cameras and other transmitters.
The objective is to observe activity and progressively select an area for investigation. A strong signal may belong to legitimate equipment, a nearby device or a reflection, so context and physical examination matter.
Detection coverage and frequency readout

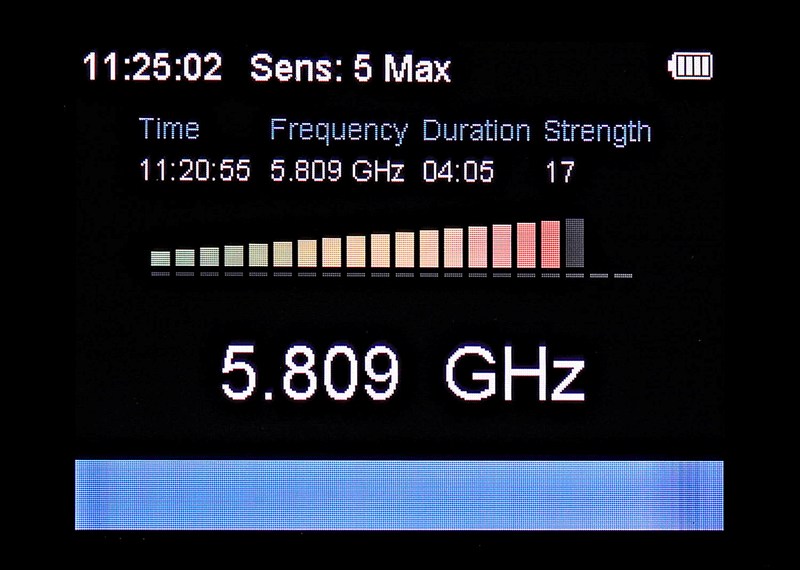

Broadband detection reaches 12 GHz. The frequency counter reads compatible signals up to 6 GHz. An emission above the counter range may be detected without a frequency being displayed.
A 20-segment level indicator helps compare intensity during a search. The 2.5-inch colour screen and LiveScan show activity as the operator moves around the inspected area.
Recording brief events

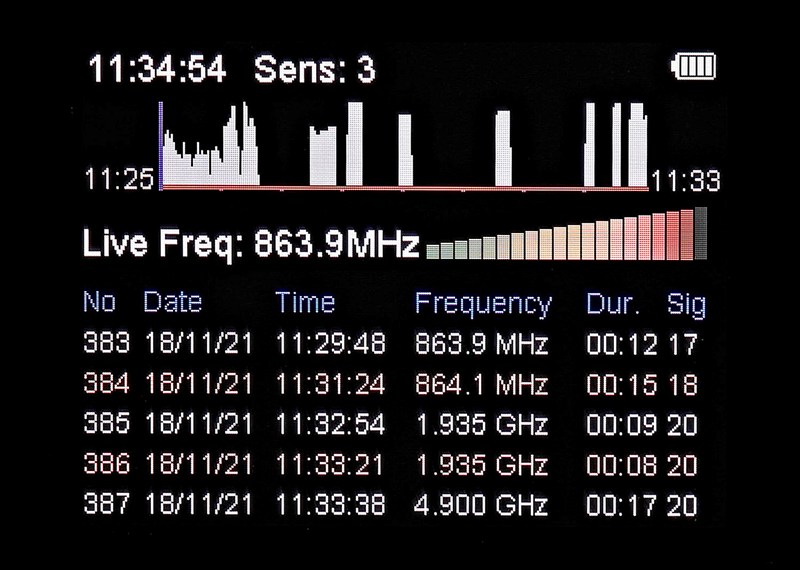

Memory holds up to 1 000 events with available frequency, time, duration and level information. It allows an operator to revisit a brief transmission after it disappears.
Graph-Log represents up to eight minutes of activity. A repeated burst can guide further examination, but an RF detector cannot find a circuit that never transmits during the survey. Match the observation period to the inspection.
Omnidirectional and directional antennas

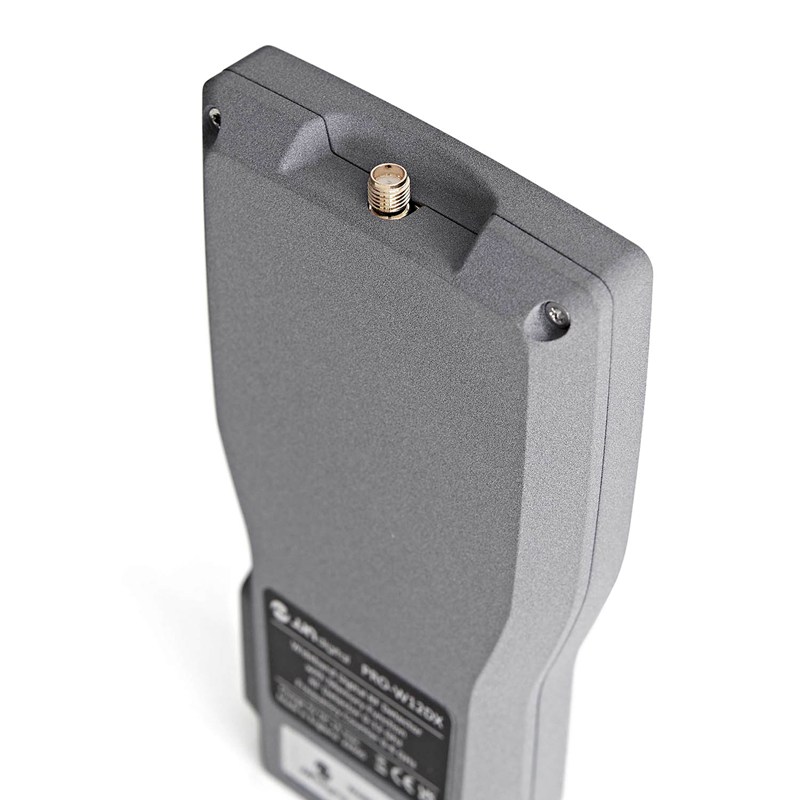

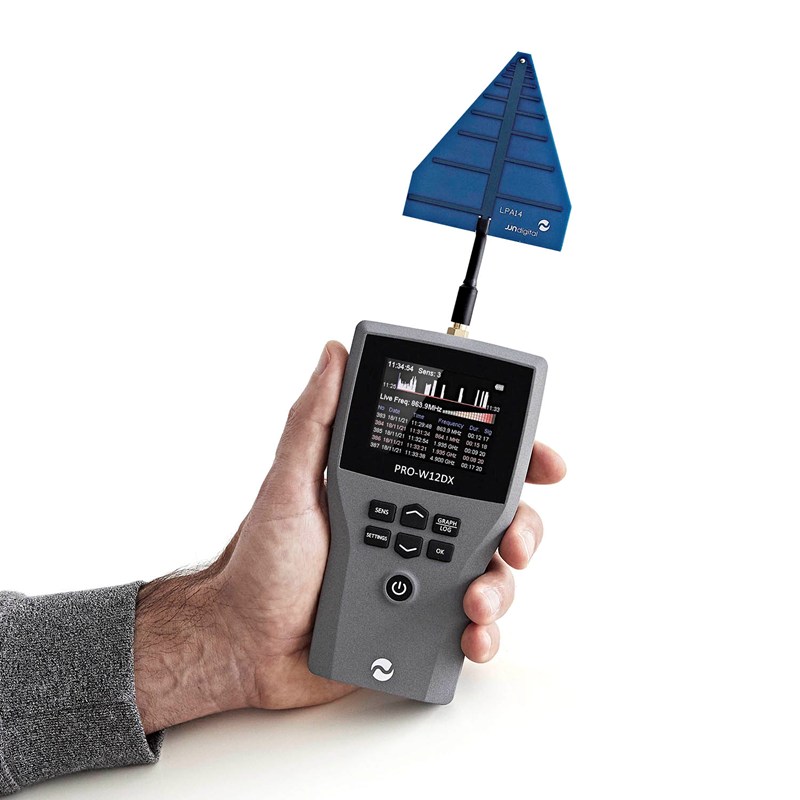

The articulated omnidirectional antenna supports a general first pass. The supplied High Gain directional antenna then helps compare reception with changes of orientation and position.

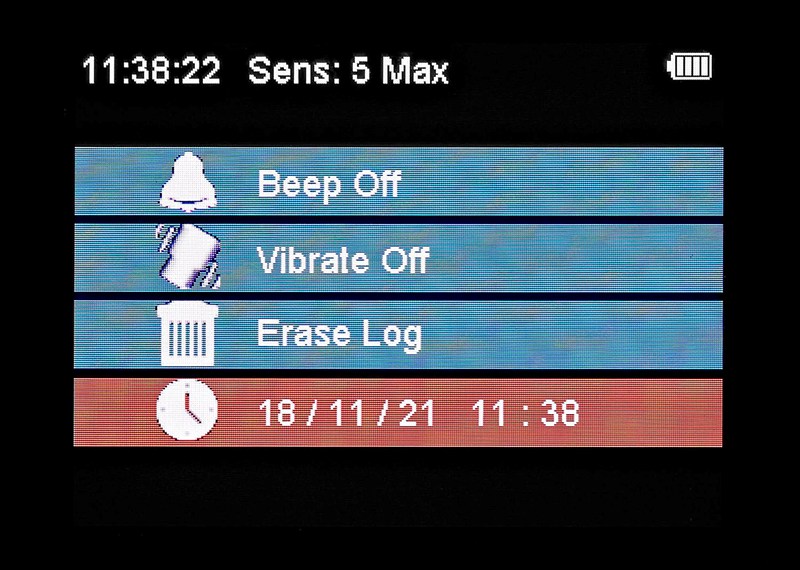

Audible alerts and vibration support tracking a signal while moving. Repeat measurements to account for reflections from walls and furniture. Audio demodulation can characterise compatible analogue signals; it is not universal access to conversations.
A portable addition to a TSCM kit

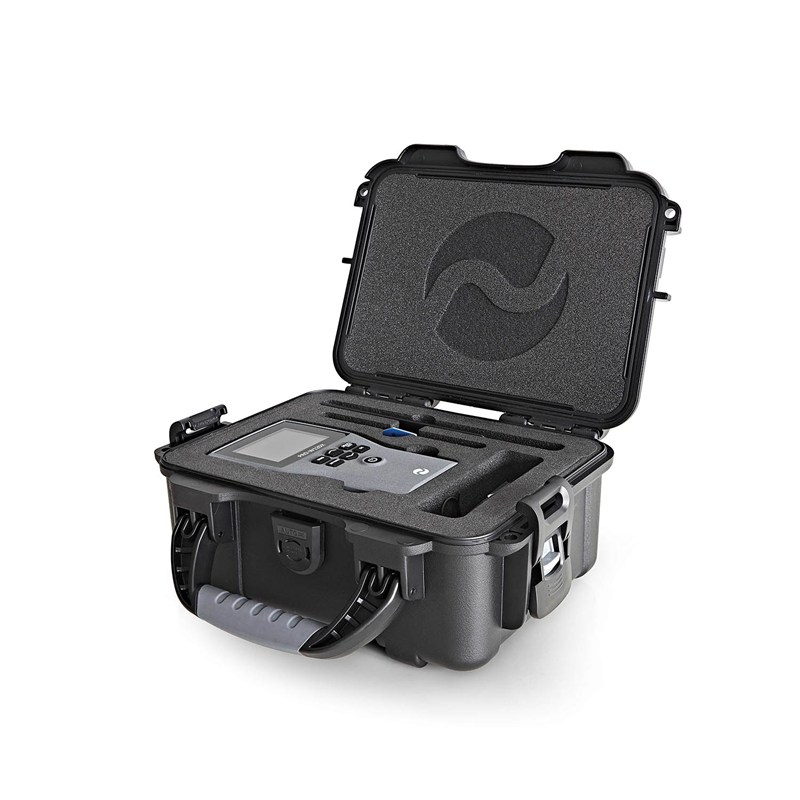

The integrated rechargeable battery and machined aluminium housing suit a field instrument. Antennas, charger, earphones and case are included. The charger accepts 110–240 V and outputs 5 V DC.
A spectrum analyser provides a more detailed frequency view, and an NLJD searches for electronic components without requiring a transmission. Use each tool for the part of the inspection it can actually address.
Inspection examples
Office first-pass checks
Compare surrounding emissions with known devices and investigate unexpected activity.
Progressive source searches
Move from a general survey to directional comparisons from several positions.
Brief transmission review
Use LiveScan, Graph-Log and stored events to examine changing signals and extend observation where needed.
Strengths and limitations
What this model offers
The pocket format combines RF coverage, event memory and graphical views.
Two antennas, audible feedback and vibration support moving from general detection towards a source search.
What to consider
The frequency counter stops at 6 GHz, separately from detection to 12 GHz. Audio demodulation is not a general decoder.
The memory size, eight-minute Graph-Log window and compact screen must suit the inspection. Silent electronics require another search method.
Frequently asked questions
Does the PRO-W12DX display frequencies up to 12 GHz?
No. RF detection reaches 12 GHz, but its counter indicates compatible signals up to 6 GHz. Activity can be detected outside the counter's range.
What is the directional antenna for?
It helps compare received levels by orientation to narrow down the search area. Reflections from walls and furniture can affect the measurements.
What does the 1 000-event memory retain?
It records detected events with information such as frequency, time, duration and level. Graph-Log also shows up to eight minutes of activity graphically.
Can it search for a Wi-Fi camera or RF microphone?
It can help detect active transmissions within its frequency range. Authorised routers and devices can produce similar signals, so their origin must be checked.
Can it find a device without a battery?
RF detection does not identify a circuit simply because it is present. Without an emission, physical inspection or an NLJD is needed to complement the search.
Does audio demodulation reproduce every conversation?
No. It can help characterise compatible analogue signals. It does not provide access to encrypted digital communications.
Specifications of the article « PRO-W12DX JJN Digital Pocket RF Detector up to 12 GHz »
- Type: Pocket RF detector
- Model: JJN Digital PRO-W12DX
- RF detection: Up to 12 GHz
- Frequency counter: Up to 6 GHz
- Memory: Up to 1 000 events
- Recorded data: Frequency, time, duration and signal level
- Graph-Log history: Up to 8 minutes of graphical activity
- Live display: LiveScan
- Level indication: 20 segments
- Screen: 2.5-inch colour TFT
- Antennas: Articulated omnidirectional and directional
- Modes: Detection, audio demodulation, audible alert and vibration
- Battery: Integrated rechargeable lithium-polymer
- Housing: Machined aluminium
- Accessories: Antennas, charger, earphones and carrying case
- Audio demodulation: Characterisation of compatible analogue signals
- Directional antenna: Supplied High Gain model
- Supplied charger: 110–240 V input, 5 V DC output
