Description of the article « WAM-X10+ JJN Digital Portable RF Monitor up to 14 GHz »
A portable RF monitor for moving inspections
The WAM-X10+ JJN Digital portable RF monitor observes active radio signals, records events and helps investigate their source. It is suited to moving between rooms or sites while retaining a history of useful observations.
Some wireless microphones, cameras or communicating trackers transmit in short bursts. Comparing those events with authorised equipment helps decide which areas need a physical check.
Broadband and wireless activity detection
Broadband detection reaches 14 GHz. Supported mobile bands cover compatible 2G, 3G, 4G and 5G activity with region selection. Detection also includes 2.4, 5 and 6 GHz, Bluetooth and certain satellite-phone transmissions around 1.6 GHz.
The frequency counter reads compatible signals up to 6 GHz, separately from the broader detection range. A device must transmit during the inspection: a local recorder or temporarily silent tracker can escape an RF search.
LiveScan and recorded events

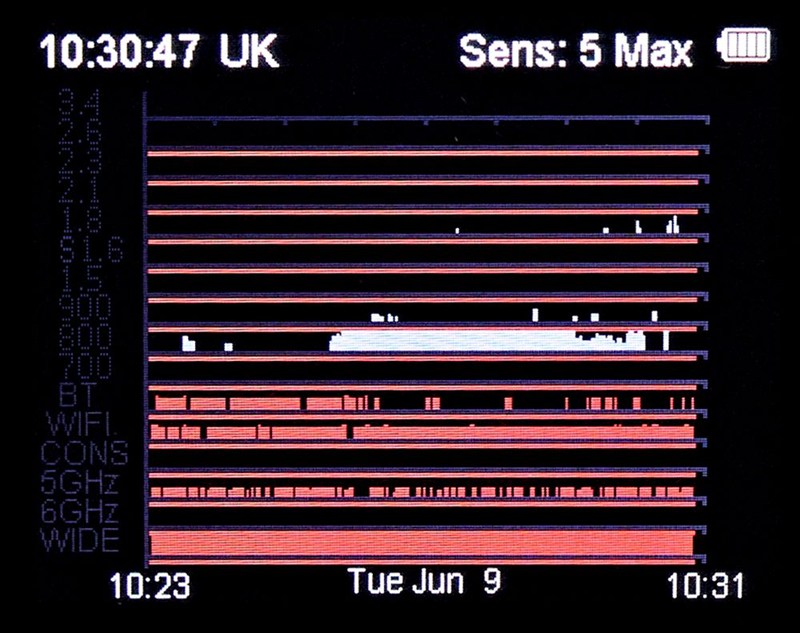

LiveScan shows activity changes in real time. Memory retains up to 4 000 events with date, time, band, duration and level. List and graph views help compare short or repeated transmissions.

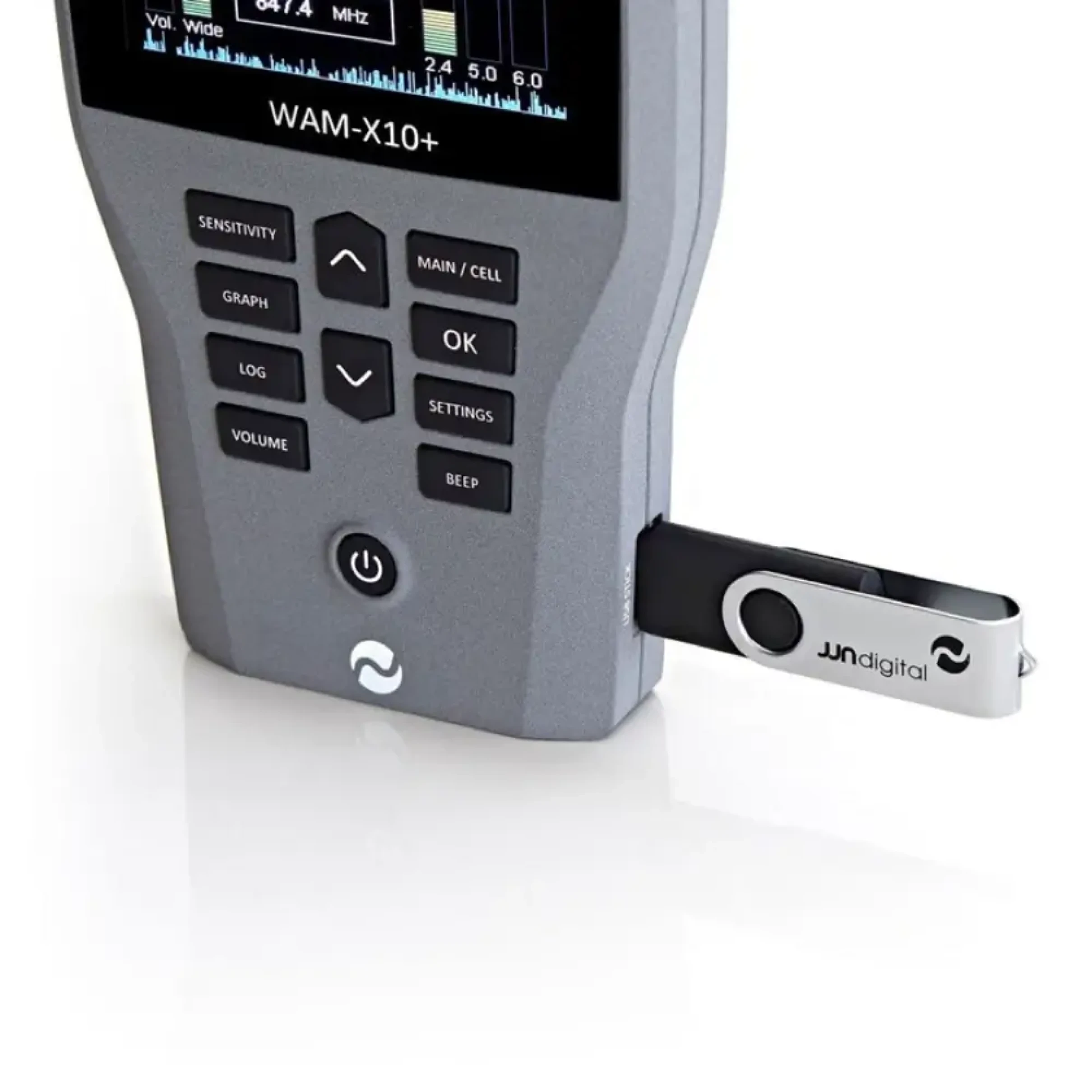

Regular bursts can guide an investigation but also occur in legitimate equipment. USB export lets an operator compare the recorded events with an inventory and the sequence of the survey.
Following a source by comparing levels

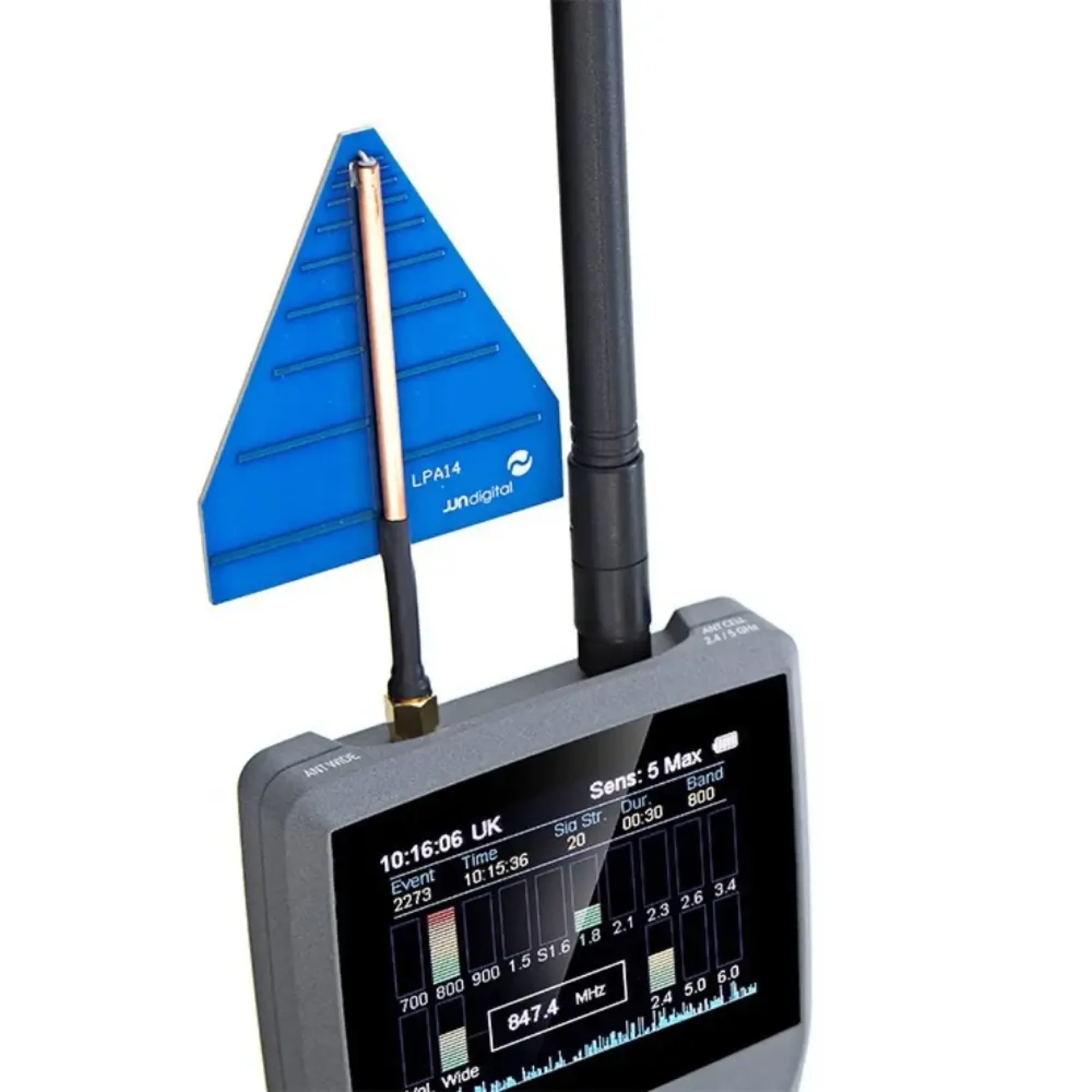

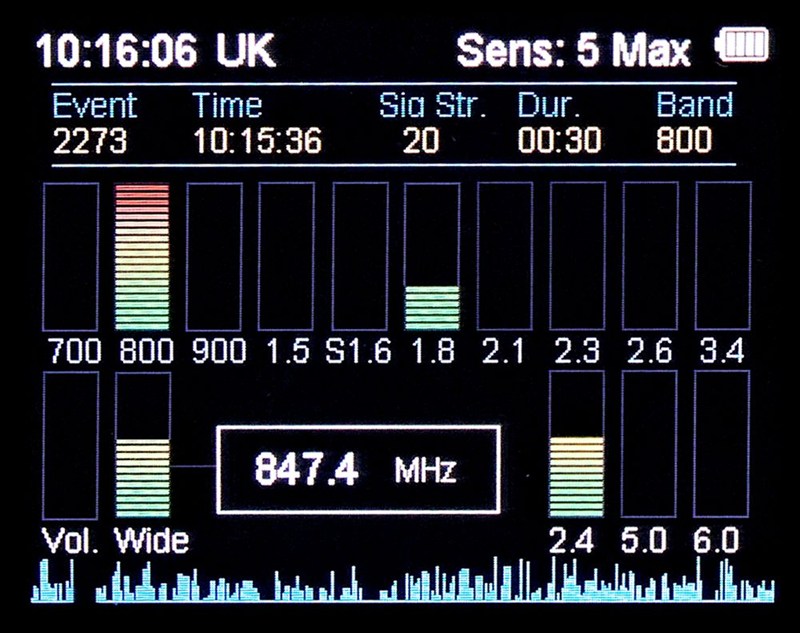

Twenty levels per band help compare intensity while changing position. Audible and vibration alerts support the search, and the articulated antennas allow reception adjustments.
Repeat readings from several positions. Walls, reflections and nearby equipment affect the level received. Detection distance depends on the transmitting device and conditions at the site.
Compact field use and complementary instruments

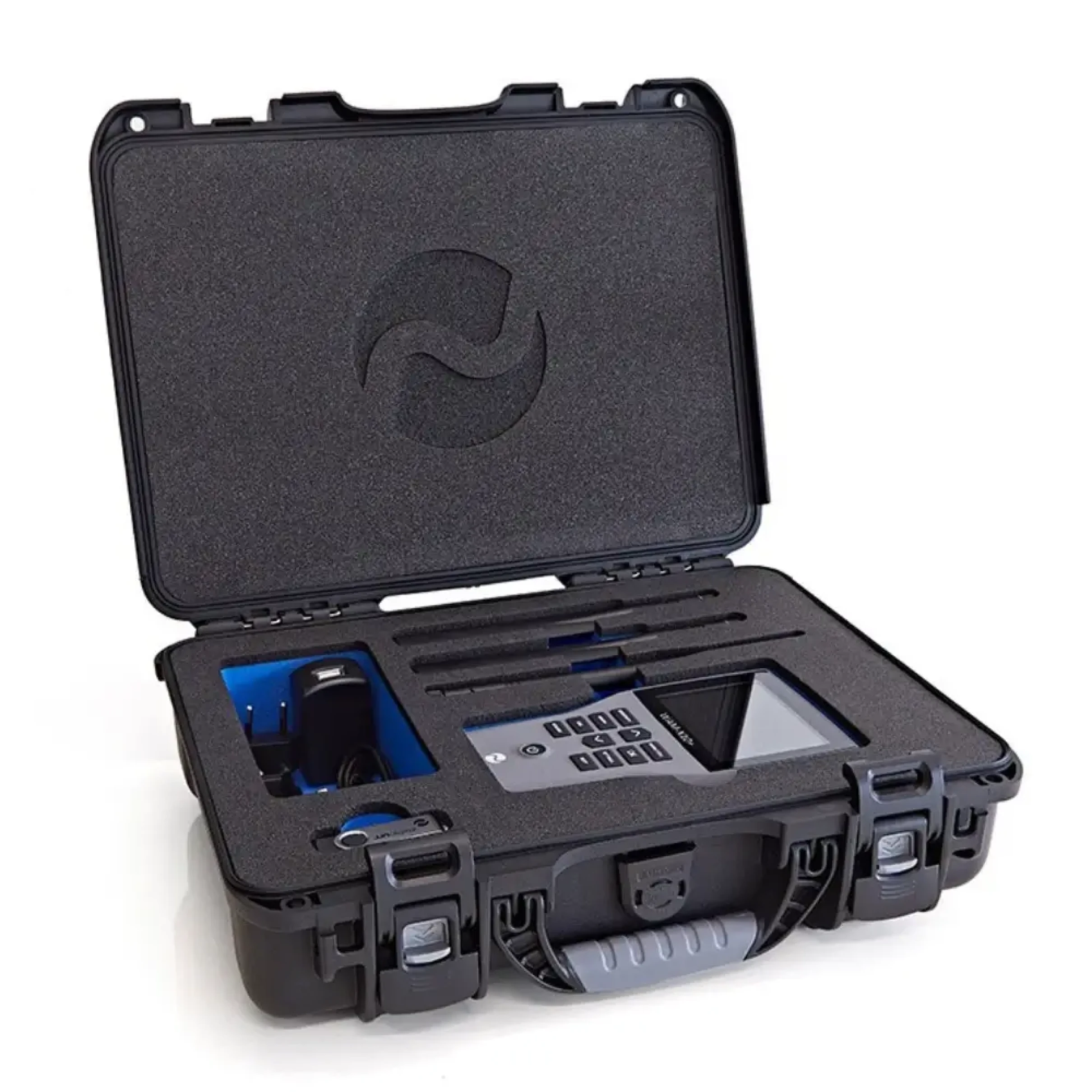

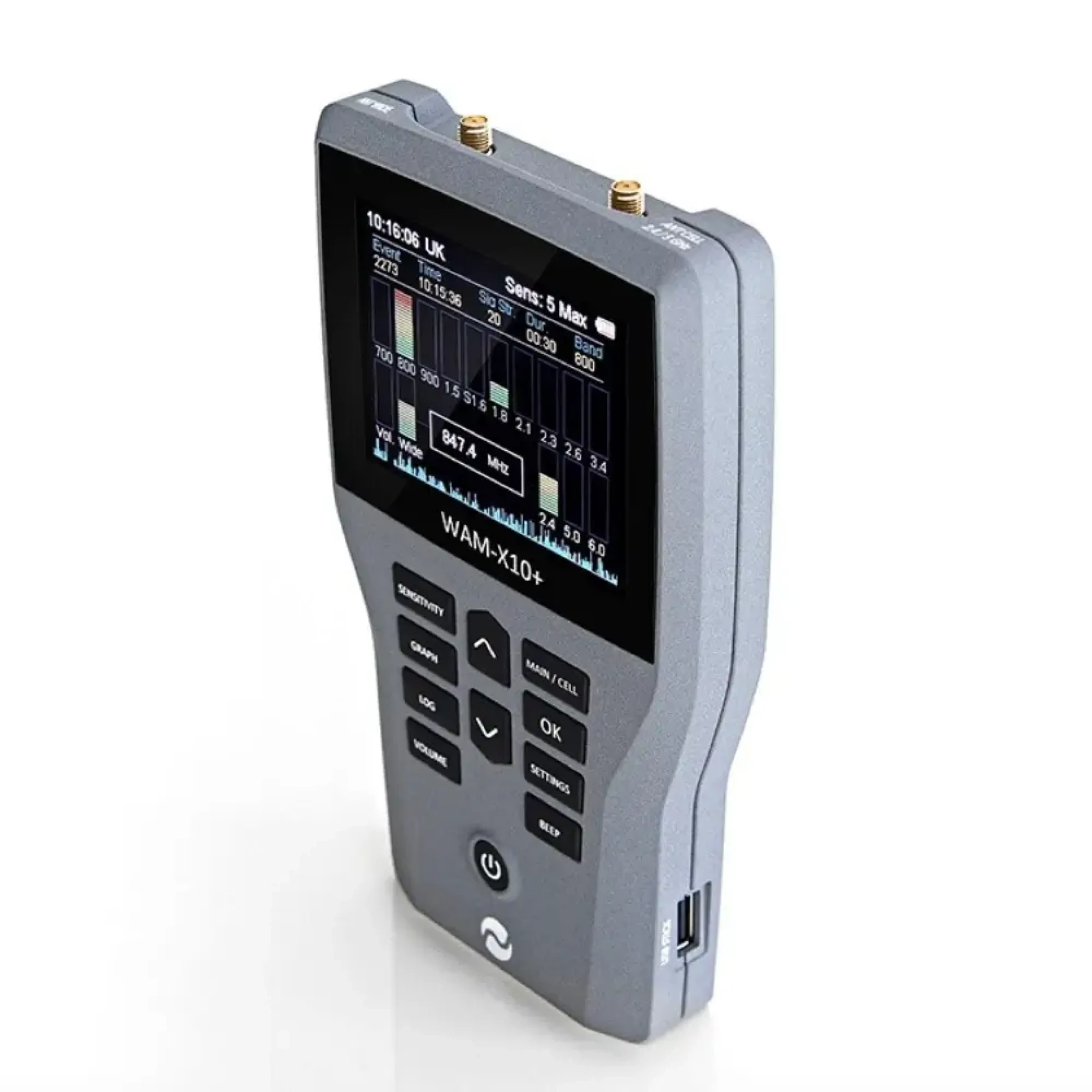

The 3.5-inch screen, integrated battery and aluminium housing form a portable instrument for use away from a mains socket. A charger and case accompany transport between inspections.
The WAM-X10+ prioritises mobility and event observation. A spectrum analyser provides a closer frequency view; an NLJD helps search for silent electronics. Wi-Fi activity detection should not be mistaken for a detailed network inventory.
Inspection examples
Multiple-room surveys
Compare the activity in each room with known devices and save events that need investigation.
Vehicle checks
Observe compatible tracker transmissions for an appropriate period without confusing them with GPS satellite reception.
Post-survey review
Relate USB-exported events to the operator's movements and physical observations.
Strengths and limitations
What this model offers
Multiband detection and LiveScan add a time-based view of RF activity.
The portable format, level indicators and USB export support moving surveys and later documentation.
What to consider
Equipment must transmit to be detected by radio. Local recorders and silent circuits require another method.
The compact screen provides less space than a tablet-sized instrument. The 6 GHz counter limit is distinct from 14 GHz RF detection.
Frequently asked questions
Does the WAM-X10+ detect devices that are not transmitting?
RF searching requires a detectable emission during the inspection. A switched-off device, local recorder or temporarily silent tracker may not be found.
How does 14 GHz coverage differ from the 6 GHz counter?
Broadband detection reaches 14 GHz, while the counter indicates the frequency of compatible signals up to 6 GHz. Detecting activity and measuring its frequency are separate functions.
Does the WAM-X10+ cover 6 GHz Wi-Fi activity?
Yes. Detection includes the 2.4, 5 and 6 GHz bands. This is radio activity detection, distinct from the detailed network inventory offered by the WAM-X25+ analyser.
Why record events during an inspection?
A device may transmit only in short bursts. The history helps examine repetition and duration, and events can be exported for review afterwards.
Can it help find a tracker in a vehicle?
Yes, if the tracker transmits in a supported band and its signal is sufficiently received. Authorised vehicle equipment must be identified, and a physical inspection remains useful.
Should I choose the WAM-X10+ or WAM-X25+?
The WAM-X10+ prioritises portability with a 3.5-inch screen and 4 000 events. The WAM-X25+ offers a larger screen, more memory, dedicated Wi-Fi/Bluetooth analysis and directional searching.
Specifications of the article « WAM-X10+ JJN Digital Portable RF Monitor up to 14 GHz »
- Type: Portable multiband RF activity monitor
- Model: JJN Digital WAM-X10+
- Broadband detection: Up to 14 GHz
- Frequency counter: Up to 6 GHz
- Mobile networks: 2G, 3G, 4G and 5G on supported bands
- Wi-Fi activity detection: 2.4 GHz, 5 GHz and 6 GHz
- Detection: Bluetooth and intermittent transmissions
- Satellite telephony: L-band around 1.6 GHz
- Memory: Up to 4 000 events
- History: Date, time, band, duration and level
- Export: USB drive
- Display modes: LiveScan and graphical history
- Screen: 3.5-inch colour TFT
- Battery: Integrated rechargeable lithium-polymer
- Alerts: Audible and vibration
- Mobile-band selection: Configurable international region of use
- Level indication: 20 levels per band
- Event review: List or graph
- Antennas: Adjustable articulated antennas
- Construction and transport: Machined aluminium housing, charger and carrying case
