Complete Pack HackRF One R10C + PortaPack H4M

Description of the article « Complete Pack HackRF One R10C + PortaPack H4M »

Complete HackRF One R10C + PortaPack H4M Pack

The HackRF One R10C + PortaPack H4M Complete Pack is a professional-grade portable SDR solution designed for users who need broad frequency coverage, autonomous operation, and a ready-to-deploy hardware bundle. Combining the upgraded HackRF One R10C with the advanced PortaPack H4M, this package is assembled and tested in France by Europe-Connection and delivered preconfigured for immediate use.

With Mayhem 2.1.0 firmware preinstalled, the system is prepared for fast deployment in the lab, on-site, or in the field. Its standalone design removes the need for a permanent PC connection, while still retaining compatibility with established SDR software platforms when computer-based workflows are required.

A Standalone SDR Platform for Professional RF Work

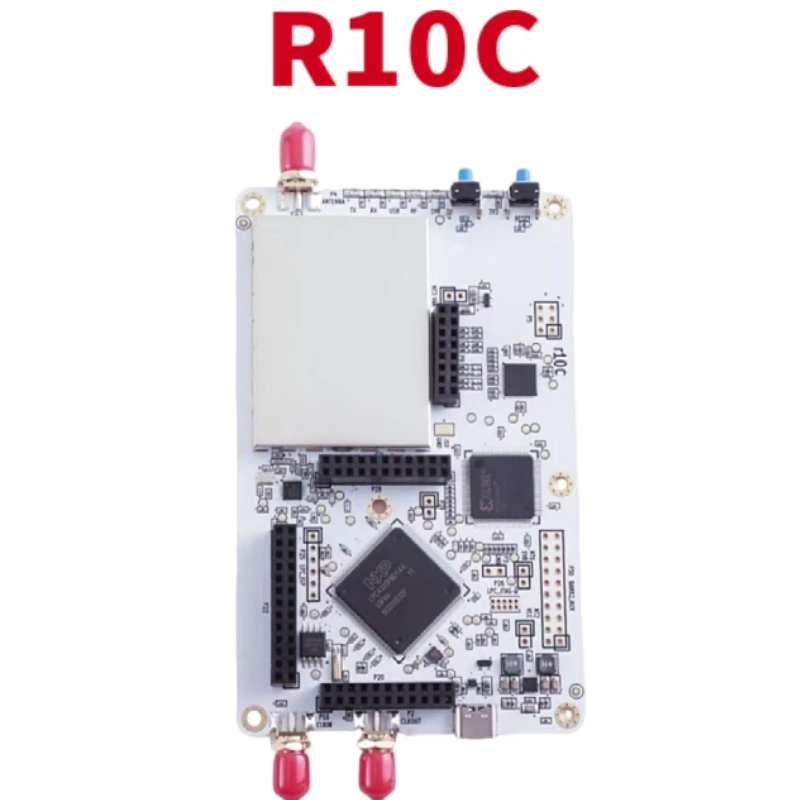

At the core of this pack is the HackRF One R10C, an upgraded version of the well-known open-source SDR transceiver platform originally created by Great Scott Gadgets. According to the provided specifications, this revision includes enhanced components for improved signal reception and transmission, internal EMI shielding to reduce interference, and improved thermal stability for more dependable operation.

The system covers a wide frequency range from 1 MHz to 6 GHz, making it suitable for varied RF analysis tasks across multiple bands. It operates in half-duplex mode, meaning simultaneous transmission and reception are not supported. A stated 20 MHz bandwidth further defines its operating profile for signal work and analysis.

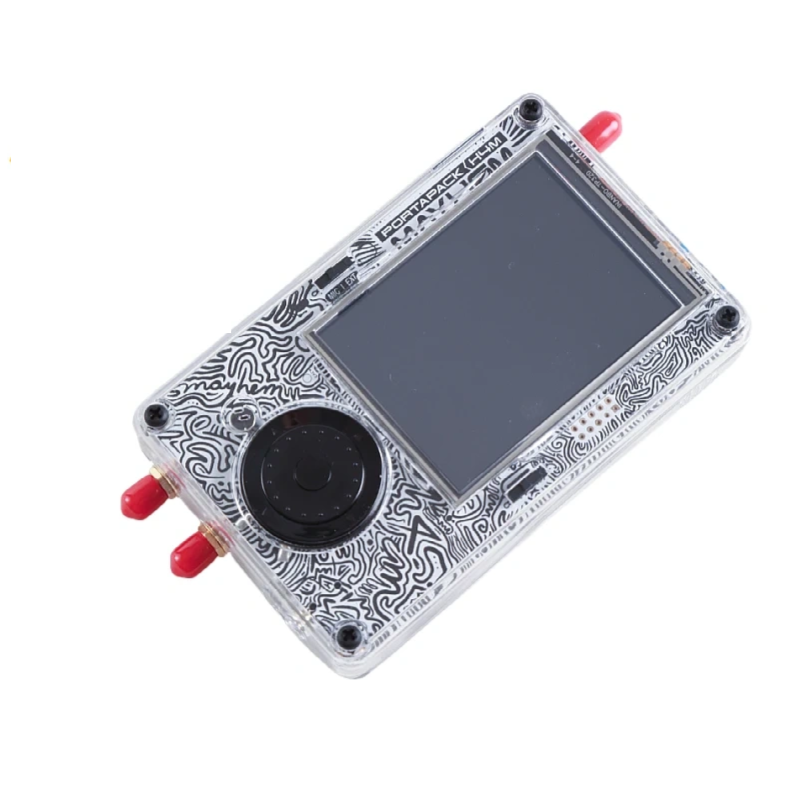

When paired with the PortaPack H4M, the HackRF One R10C becomes a fully autonomous SDR device. This allows users to work directly from the unit itself rather than relying on a laptop for every task, which is especially valuable in mobile, field, and rapid-response environments.

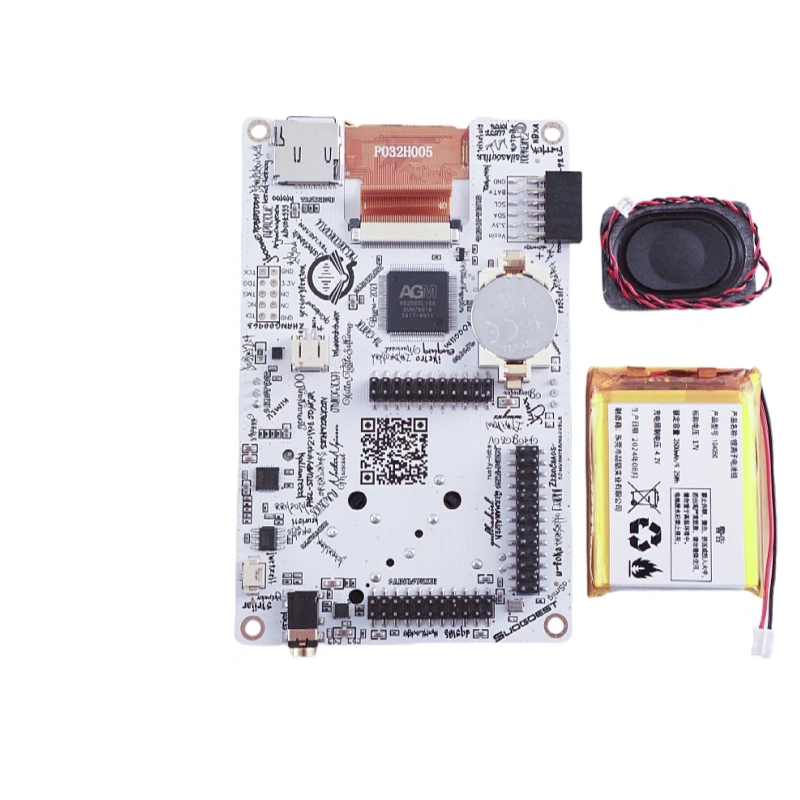

PortaPack H4M: Portable Control and Rugged Construction

The PortaPack H4M adds the interface and portability features that turn the HackRF platform into a self-contained operational tool. It is equipped with a matte 3.5-inch IPS touchscreen described as sunlight-readable, helping maintain usability in bright conditions. Navigation is handled through both touch control and a rotary click-wheel, offering a practical interface for fast adjustments and menu access.

The enclosure is made from CNC-machined aluminum, giving the device a more rugged structure for professional use. The source also specifies RF shielding and an integrated/external audio switch, along with advanced power management that provides charge, voltage, and consumption indicators. For users who need hardware flexibility, the unit also includes a GPIO port for modular expansion and custom hardware extensions.

This combination of durable construction and direct onboard control makes the pack particularly well suited to users who need mobility without sacrificing operational convenience.

Preloaded Mayhem Firmware for Immediate Deployment

One of the practical strengths of this complete pack is that it arrives with Mayhem 2.1.0 already installed. This reduces setup time and helps users move directly into configuration, testing, capture, and analysis workflows. Instead of sourcing separate components and preparing firmware independently, buyers receive a system that has already been assembled, configured, and tested.

For professionals who value efficiency, this preloaded firmware approach can simplify deployment considerably. It also supports the product’s positioning as a ready-to-use solution for technical environments where time, portability, and reliability matter.

Broad RF Coverage and Analysis Capabilities

The source material highlights this pack as a versatile tool for real-time signal analysis, decoding, and replay. Its broad tuning range and portable format make it suitable for users working across different RF environments, whether for inspection, testing, monitoring, or controlled research applications.

Listed protocol and signal environments in the source include:

• GSM, 3G, 4G, LTE

• Bluetooth and LoRa

• Wi-Fi at 2.4 GHz and 5.8 GHz

• RFID and analog radios

The product description also states that the device supports signal capture, offline replay, and real-time visualization. These functions make it relevant for legitimate professional tasks such as RF diagnostics, wireless system evaluation, technical surveillance counter-measures, and controlled penetration testing of authorized systems.

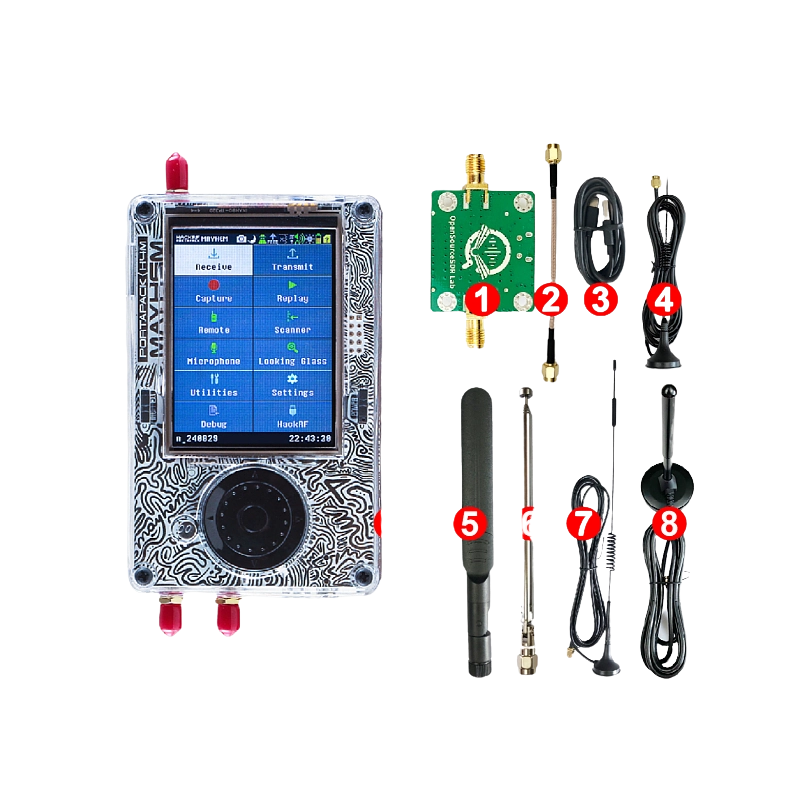

Included Accessories and Pack Contents

This is presented as a complete pack, and the included accessories are a major part of its value. The source specifies that each component has been selected, tested, and assembled for field performance.

What is included

• 1 x HackRF One R10C

• 1 x PortaPack H4M with Mayhem 2.1.0 preinstalled

• 1 x 2400 mAh Li-Polymer battery installed

• 1 x 20 dB RF amplifier

• 5 high-performance multi-band SMA antennas

• 1 x reinforced USB cable for charging and data

• 1 x MicroSD card for signal capture and firmware management

Antenna coverage listed in the source

• 40 MHz – 6 GHz

• 433/868 MHz

• 2.4 / 5.8 GHz

• 700 – 2700 MHz

• Long-range GSM antenna with 35 dBi gain

This accessory bundle helps position the product as a practical field kit rather than a bare SDR board requiring multiple additional purchases before use.

PC Software Compatibility and Storage

Although the PortaPack H4M enables standalone operation, the system also remains compatible with established SDR software tools for users who want to integrate it into desktop workflows. The source explicitly lists compatibility with GNU Radio, SDR#, URH, and SDR Console.

For storage, the product uses MicroSD, with support stated as up to 64 GB. The included MicroSD card is intended for signal capture and firmware management, supporting the device’s portable and self-contained operating model.

Built for Field Use

Several details in the source point clearly toward field-oriented use. The CNC aluminum enclosure, autonomous operation, installed battery, direct touchscreen interface, click-wheel navigation, and included antenna set all contribute to a system designed for work away from a desk. The source also notes use in urban and remote locations, reinforcing its role as a mobile RF platform.

Power is supplied via a rechargeable system using USB-C, and the H4M includes power indicators for charge, voltage, and consumption. These practical details are important for users who need better visibility into device status during extended sessions or on-site diagnostics.

Warranty, Assembly, and Support

According to the source, every unit is fully configured and tested before delivery. The product is assembled in France by Europe-Connection and backed by a 5-year warranty along with expert technical support. For professional buyers, these points can be especially important when selecting equipment intended for repeated operational use.

The source also states that the user manual is provided in English.

Important Legal and Operational Notice

This equipment must be used in accordance with local radio frequency regulations. The source specifically notes that certain functions, including RF jamming, may be heavily regulated or prohibited depending on jurisdiction. Buyers are responsible for ensuring that any deployment complies with applicable laws and authorized use conditions.

For legitimate professional use, this pack is best understood as a flexible SDR platform for analysis, testing, monitoring, research, and authorized security work.
