PortaPack H4M for HackRF One

Description of the article « PortaPack H4M for HackRF One »

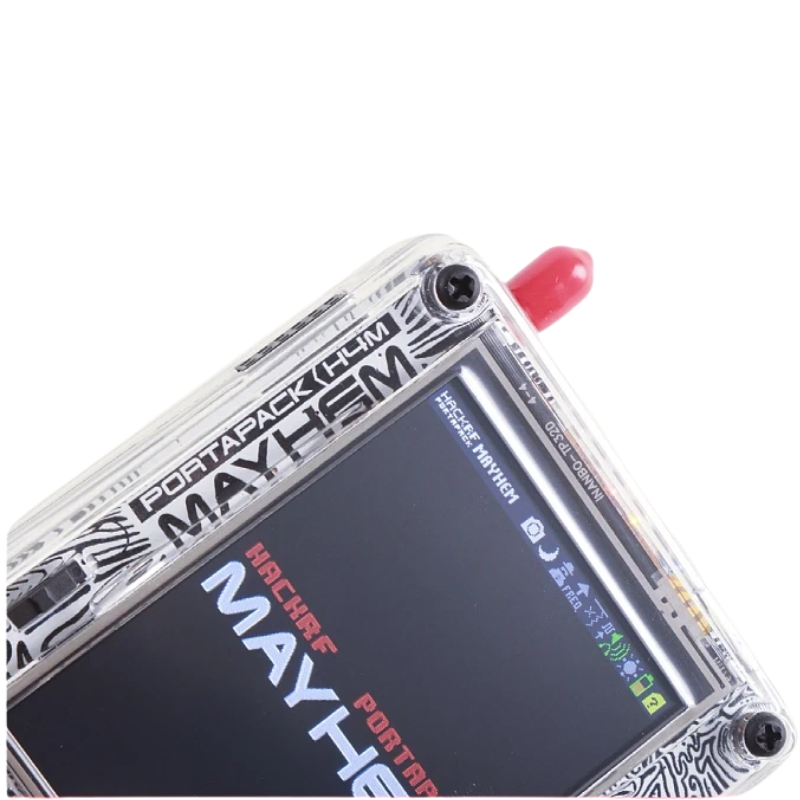

PortaPack H4M for HackRF One

The PortaPack H4M is designed to convert a compatible HackRF One into a standalone SDR platform for portable radio analysis and field use. Instead of depending on a computer, this unit provides an integrated interface and onboard controls that support mobile workflows in security, research, and professional RF environments.

Built for advanced users and technical applications, the PortaPack H4M combines a 3.5-inch matte IPS touchscreen, a click-wheel interface, and Mayhem firmware preinstalled in a compact format. Its CNC-machined aluminum housing adds durability while also providing EMI shielding, an important advantage in demanding operational settings.

Standalone SDR Operation for Mobile Work

One of the main strengths of the PortaPack H4M is its ability to let you work directly from the device itself. When paired with a compatible HackRF One, it creates a self-contained platform for RF tasks in the field, reducing the need to carry a separate computer during inspections, audits, or research sessions.

This standalone approach is especially useful for users who need a more portable setup for RF analysis, signal monitoring, and counter-surveillance. The interface is designed to make core functions accessible on the move, helping users operate more efficiently in mobile or temporary work environments.

Display and Controls Designed for Practical Use

3.5-inch matte IPS touchscreen

The PortaPack H4M features a 3.5-inch matte IPS touchscreen with a resolution of 320 × 240 px. The matte finish helps maintain visibility in outdoor conditions, making the device more practical for field deployment where reflections and changing light can affect usability.

Click-wheel plus touchscreen navigation

In addition to the touchscreen, the unit includes a click-wheel interface for precise control. This dual-input design gives users flexibility in how they navigate menus and functions, and it is particularly useful when gloves are being worn or when more tactile control is preferred.

Mayhem Firmware Preinstalled

The PortaPack H4M comes with the latest version of Mayhem firmware preinstalled. This gives users immediate access to a broad set of SDR-oriented functions without requiring separate firmware setup before use.

According to the provided specifications, supported functions include:

• Real-time spectrum analysis

• Signal replay and recording

• GSM, Wi-Fi, and LoRa scanning

• Decoding unencrypted transmissions

• Badge and access device analysis

• RF reconnaissance and counter-surveillance

These capabilities make the PortaPack H4M suitable for technical users who need a compact platform for observation, testing, and analysis in legitimate professional or research contexts.

Built for Field Operations

Battery-powered autonomy

For mobile use, the PortaPack H4M includes a 3.7 V 2400 mAh Li-Polymer rechargeable battery. The stated runtime is up to 8 hours of continuous use, allowing extended operation during field sessions, site visits, or mobile monitoring tasks.

USB-C charging

Charging is handled via USB-C, offering a straightforward and widely used connection standard for power replenishment.

Compact and portable format

The unit measures approximately 85 × 56 × 17 mm and weighs around 140 g. This compact footprint supports portable deployment and makes it easier to integrate into mobile kits for RF work.

Shielded Aluminum Housing

The PortaPack H4M uses a CNC-machined aluminum enclosure with EMI shielding. This construction supports both physical robustness and improved suitability for professional environments where electromagnetic interference protection matters.

For users working in technical or field conditions, the housing is an important part of the product's appeal. It contributes to a more durable overall build while aligning with the needs of users who require dependable hardware for repeated transport and on-site use.

Audio, Expansion, and Storage

Integrated and external audio input

The device includes a built-in microphone as well as an external microphone port. These audio options expand the unit's flexibility for supported workflows that require microphone input.

GPIO for hardware extensions

A GPIO port is included for hardware extensions. This is useful for users building more specialized setups or integrating the device into broader technical projects.

microSD card support

The PortaPack H4M includes a microSD card slot supporting cards up to 64 GB. This provides onboard storage for compatible files and operational needs associated with the device's supported functions.

Frequency Range and RF Capability

Based on the provided product information, the PortaPack H4M supports recording, analysis, and replay of signals from 1 MHz to 6 GHz when used as part of a compatible setup. This broad range contributes to its usefulness for RF monitoring, technical analysis, and SDR-related field work.

As always, users should ensure that all operation complies with applicable local laws and regulations. The source material specifically notes that some activities may be legally restricted depending on jurisdiction.

Compatibility

The PortaPack H4M is compatible with HackRF One, including official units and R10/R10C clones. This compatibility makes it a practical upgrade path for users who already own supported hardware and want to add standalone functionality.

HackRF One is not included. A compatible receiver is required for operation.

Recommended Professional Applications

The source material identifies the PortaPack H4M as suitable for a range of legitimate technical and professional uses, including:

• Counter-surveillance missions and RF security audits

• Signal recording and analysis from 1 MHz to 6 GHz

• Academic or industrial SDR projects

• Autonomous mobile RF monitoring setups

Its combination of portability, onboard controls, battery operation, and preinstalled firmware makes it particularly relevant for users who need a more self-contained SDR workflow away from a desk-based setup.

What Is Included

In the box, the provided contents are listed as:

• 1 × PortaPack H4M with IPS screen and Mayhem firmware

• 1 × 2400 mAh Li-Polymer battery pre-installed

• 1 × microSD card subject to availability

• 1 × USB-C cable

Please note again that the HackRF One is not included.

Important Legal Notice

The source information states that certain RF activities may be subject to legal restrictions in many countries. Users should always verify local laws and regulations before use and ensure that operation remains within lawful and authorized boundaries.

Why Choose the PortaPack H4M

For users seeking a more mobile way to work with a compatible HackRF One, the PortaPack H4M offers a focused combination of standalone operation, portable design, Mayhem firmware, and field-ready construction. The touchscreen and click-wheel interface support practical handling, while the battery-powered format helps reduce dependence on external equipment during on-site work.

With compatibility for official HackRF One units and R10/R10C clones, plus features such as USB-C charging, microSD storage, GPIO expansion, and a shielded aluminum housing, the PortaPack H4M is a strong option for professionals, researchers, and advanced users who need a compact SDR platform for legitimate RF analysis and monitoring tasks.
