4K Wi-Fi Hidden Camera in TV Soundbar with AI Motion

Description of the article « 4K Wi-Fi Hidden Camera in TV Soundbar with AI Motion »

4K Wi-Fi Hidden Camera in TV Soundbar with AI Motion: a practical overview

A TV soundbar can continue to serve as a speaker system while carrying a small camera inside the right-hand side of its front grille. Where visual monitoring is authorised, the camera allows remote checking of a room without installing a separate obvious camera housing.

Camera placement must be assessed against the area you are authorised to cover. A useful viewing angle depends on the mounting position, furniture, lighting and whether people are informed as required. Check the picture from the final position before relying on an installation.

How the host product works

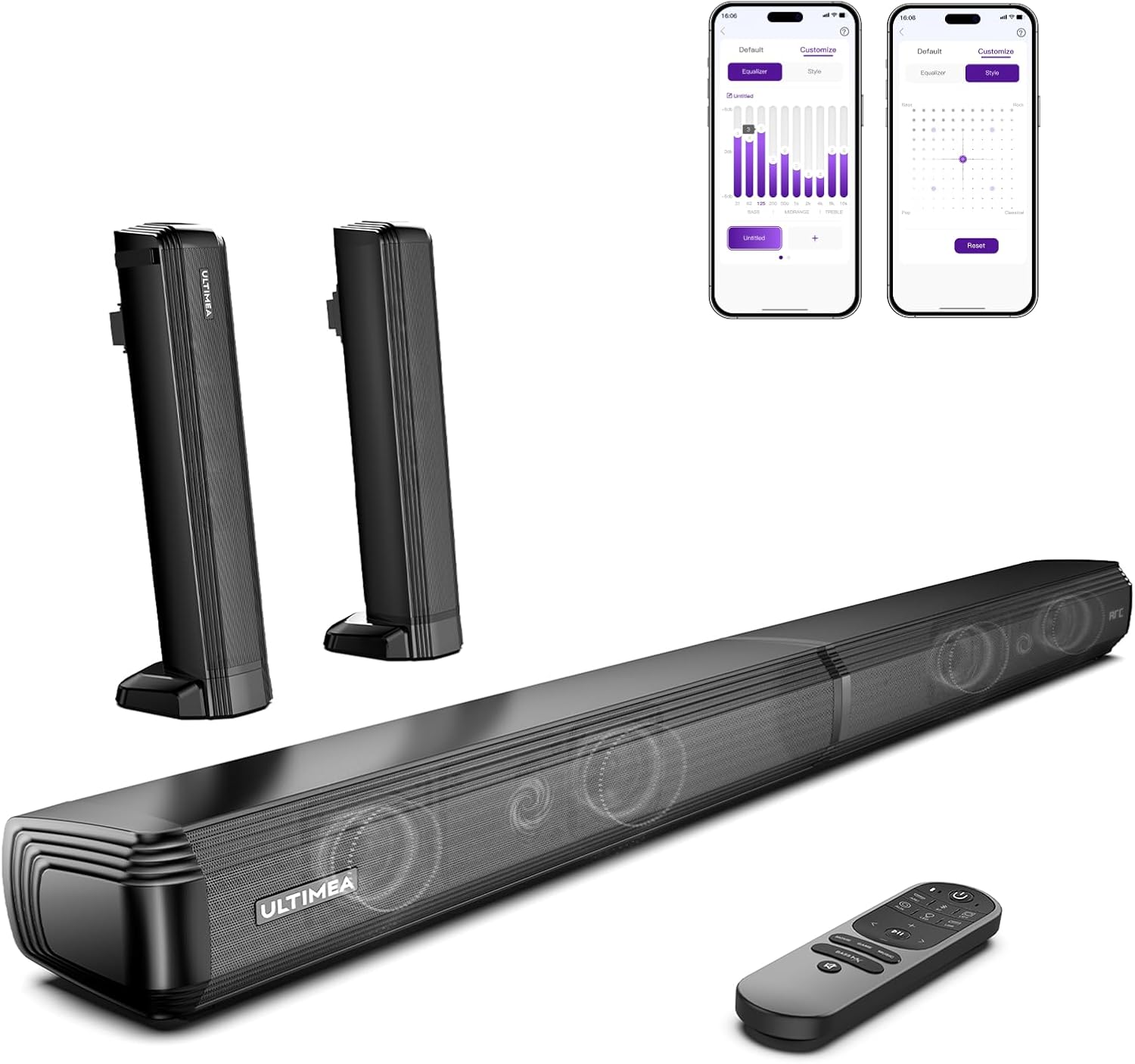

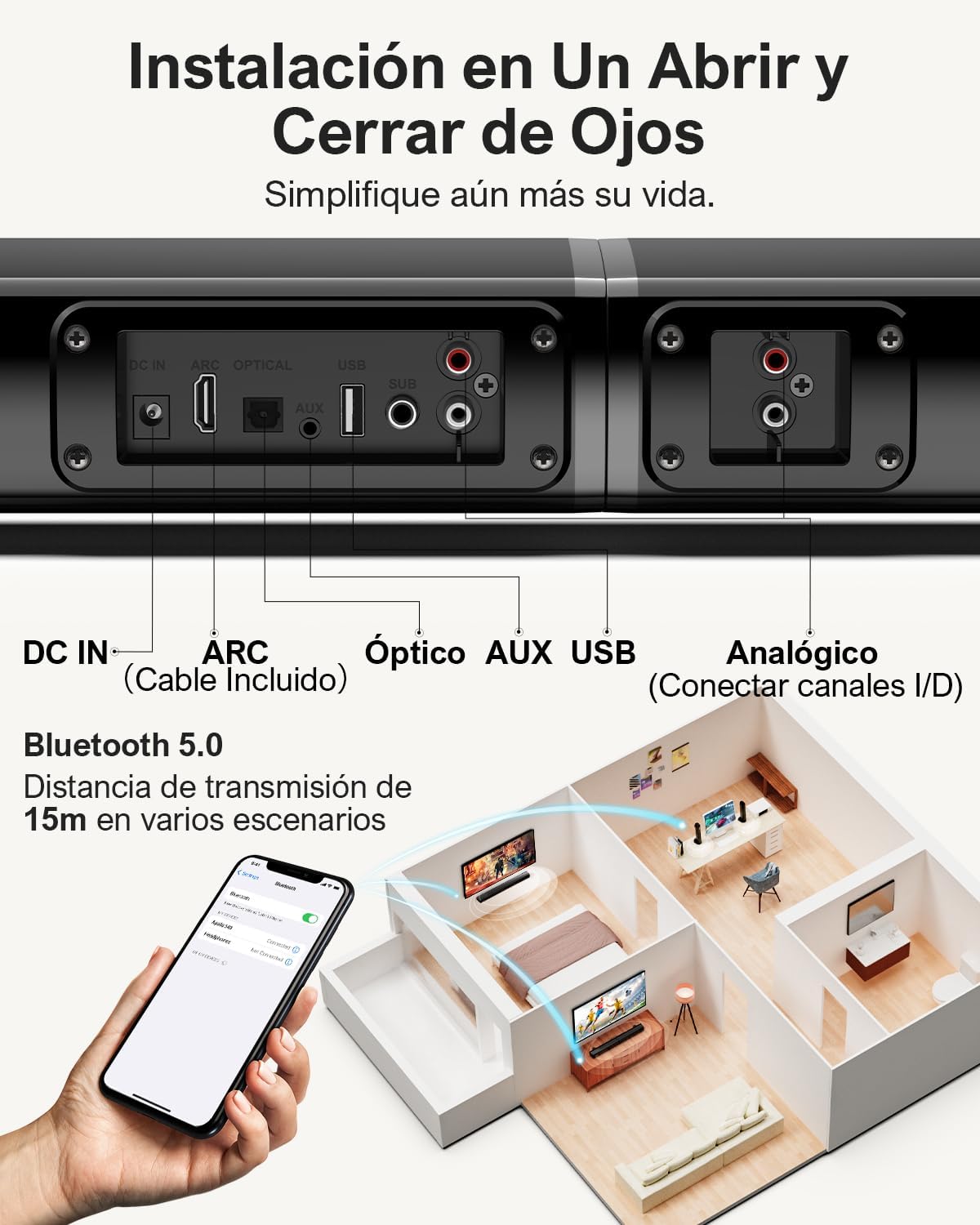

The audio system has a stated 2.2-channel configuration with four speakers and up to 100 W quoted output. Connections include HDMI ARC, optical, AUX and USB, as well as Bluetooth for music playback. Its two sections can be assembled or used separately. Assembled reference dimensions are approximately 81.1 × 9.8 × 7 cm. A 2,500 mAh battery can power the camera for up to five hours of viewing with the audio switched off, depending on use.

The unit provides an output for an external active subwoofer but does not include the subwoofer. HDMI CEC depends on TV compatibility. The camera module's claimed IP65 grade does not establish a weather rating for the full soundbar.

4K UHD live viewing and 1080p local recordings

The camera offers 4K UHD live viewing through its app. Footage stored on the microSD card is recorded in Full HD 1080p. This distinction matters when choosing a system for live checking versus later review: a 4K live feed does not mean the memory card stores 4K video.

Actual picture quality depends on available light, network conditions and framing. A motorised pan-and-tilt function or specific field-of-view angle has not been claimed for this camera.

Remote access over 2.4 GHz Wi-Fi

The camera module connects to a 2.4 GHz Wi-Fi network, with a free companion app for iOS and Android. A router configured only for 5 GHz will not support the camera. Remote access also needs a working internet connection at the location and on the viewing phone.

Test reception at the exact installation point: ceiling structures, solid walls and nearby electrical equipment may affect the connection. Use strong account credentials and restrict image access to authorised users.

microSD storage and remote file management

The integrated camera can record locally onto a microSD card. Supported functions include remote playback and remote deletion while the camera remains accessible via the network. This can be helpful where removing the card would require taking down the fitting or opening a panel.

Save any footage relevant to a legitimate incident before deleting files. The maximum supported card size and whether a card is supplied should be checked for the chosen configuration. Recording retention time varies with card capacity and event frequency.

AI motion analysis and flexible schedules

Motion detection can run around the clock or according to selected periods. Cloud-based AI features are described as identifying and providing scene descriptions to help users review activity. These descriptions can be mistaken and should be confirmed by watching the footage; they do not amount to confirmed facial identification.

Cloud analysis needs internet access and availability of the relevant service. Check data handling and the terms of service before enabling it. Scheduling motion detection all day does not automatically guarantee uninterrupted 24-hour recording.

Where this product may be appropriate

A permitted home security setting or private meeting room where camera placement has been considered carefully. Position the soundbar to keep the lens clear of the TV stand and other objects.

Choose the simplest framing that covers the relevant access or stored property. Avoid capturing more of a neighbouring or public area than necessary. Review the configuration after installation rather than relying solely on the product illustration.

Advantages and trade-offs compared with a visible camera

A visible camera can provide clear deterrence and makes it easier to communicate that monitoring takes place. An integrated camera saves space and preserves the host product's everyday use, but can make maintenance or lens positioning more involved. Choose on security and legal requirements, not concealment alone.

Remote viewing depends on Wi-Fi and power, the stored video is 1080p rather than 4K, and AI features rely on a cloud service. These limitations should be considered alongside any convenience offered by the integrated form factor.

UK privacy and compliance considerations

In the UK, camera installation and the processing of identifiable footage can engage data protection rules, including UK GDPR where applicable. Check the Information Commissioner's Office (ICO) guidance, the purpose and proportionality of recording, signage where required and the period for which footage is retained.

Workplace and shared-building surveillance may have additional obligations. Do not record bathrooms, changing rooms or private areas belonging to other people. Integration into an everyday object does not remove the duty to respect privacy.

Frequently asked questions

Will the soundbar still work for TV sound?

Yes. It retains its audio connections and Bluetooth playback.

Is camera video sent over Bluetooth?

No. The camera uses 2.4 GHz Wi-Fi; Bluetooth serves the audio system.

Can the camera operate with the sound off?

Its 2,500 mAh battery is quoted for up to five hours of viewing when the audio system is off.
