Junction Box Spy Camera 4K UHD Surveillance Device

Description of the article « Junction Box Spy Camera 4K UHD Surveillance Device »

Junction Box Spy Camera 4K UHD Surveillance Device

This covert surveillance system is built into a realistic electrical junction box, allowing discreet monitoring in locations where a conventional visible camera may be too obvious. Designed to resemble standard electrical infrastructure, it provides a professional solution for users who need surveillance that blends naturally into its surroundings while still delivering Ultra HD 4K video quality and remote access.

The unit is intended for both indoor and outdoor environments and can be configured to suit different installation requirements. Whether the goal is to monitor a building entrance, a parking area, a hallway, or another professional environment, this junction box camera is designed to remain visually discreet while maintaining practical surveillance performance.

Discreet Surveillance Integrated into a Standard Junction Box

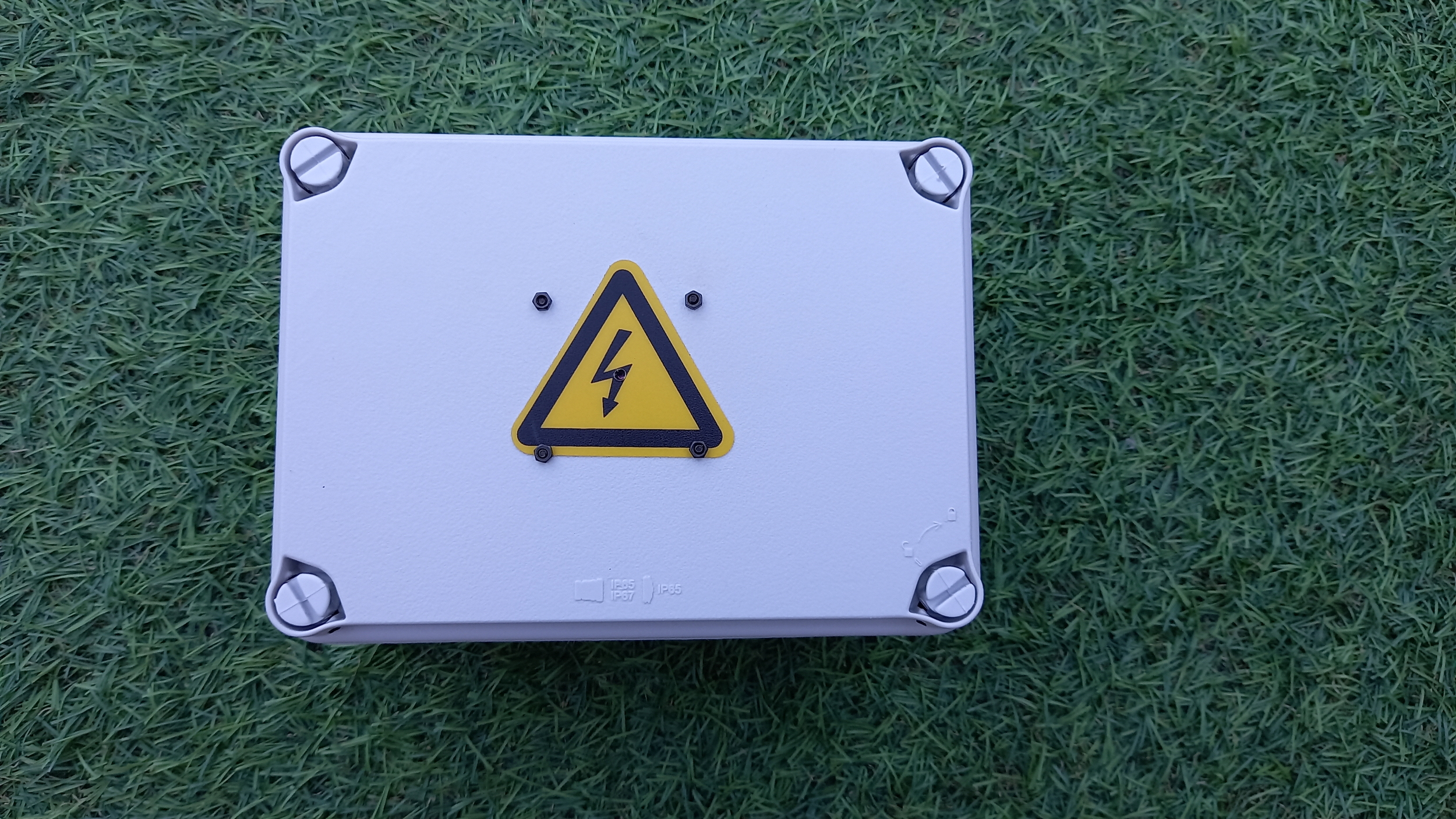

The main advantage of this device is its integration into a standard electrical junction box. Rather than looking like a camera housing, it is designed to pass as a normal electrical installation. This makes it especially suitable for locations where visible surveillance equipment could alter behaviour, attract attention, or be visually intrusive.

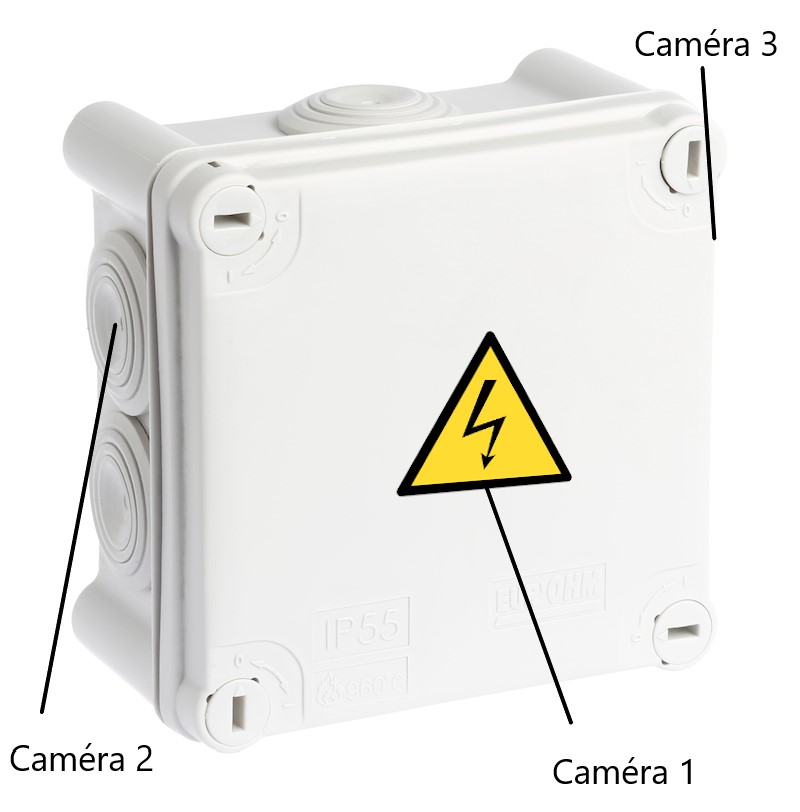

The internal design is custom-built and can accommodate 1 to 3 ultra-miniature pinhole cameras. Each camera uses a 1 mm lens diameter, helping the system remain extremely difficult to detect, even at close range. According to the product specification, the box can also retain space for real cables and functional electrical branching if required, helping it integrate more naturally into genuine electrical setups.

Designed for Professional Monitoring

This is not a decorative imitation enclosure. It is presented as a custom-built surveillance solution intended for serious monitoring applications. Its discreet appearance makes it suitable for observing access points, circulation zones, and other areas where a low-profile installation is important.

4K Ultra HD Video Quality

Each camera module is equipped with an 8 Megapixel CMOS sensor and records in UHD 4K at 30 FPS. This level of image quality is intended to provide sharp and detailed footage, supporting clearer identification of people and objects in monitored scenes.

For users comparing covert systems, this is a significant point: discreet installation does not require sacrificing image definition. The combination of a miniature pinhole format and 4K UHD recording makes this model suitable for professional environments where image clarity matters.

Performance in Different Lighting Conditions

The source information states that the pinhole cameras deliver strong image quality under varying lighting conditions, making them suitable for day and night monitoring. An optional infrared function is also available on request, allowing the system to be adapted to specific low-light requirements when needed.

Remote Viewing via Wi-Fi/IP or 4G LTE

This junction box surveillance device is available with two transmission options, allowing it to be adapted to the installation environment:

• Wi-Fi/IP module for sites with an existing wireless internet network
• 4G LTE module for autonomous deployment in locations without local network infrastructure

The 4G LTE version works with a SIM card, enabling remote live streaming through the cellular network. This is particularly useful for installations where fixed internet access is unavailable or impractical.

Using the dedicated free app for iOS, Android, or PC, users can access live video feeds, review stored footage, configure motion detection alerts, and manage multiple devices remotely. The app also supports multi-camera management up to 32 cameras, which is useful for users operating several surveillance points within the same monitoring setup.

Global Remote Access

The product description specifies that footage can be viewed from anywhere in the world, provided the chosen transmission setup is in place. This makes the system suitable for remote property oversight, distributed site monitoring, and professional users who need access while away from the installation location.

Flexible Power Options

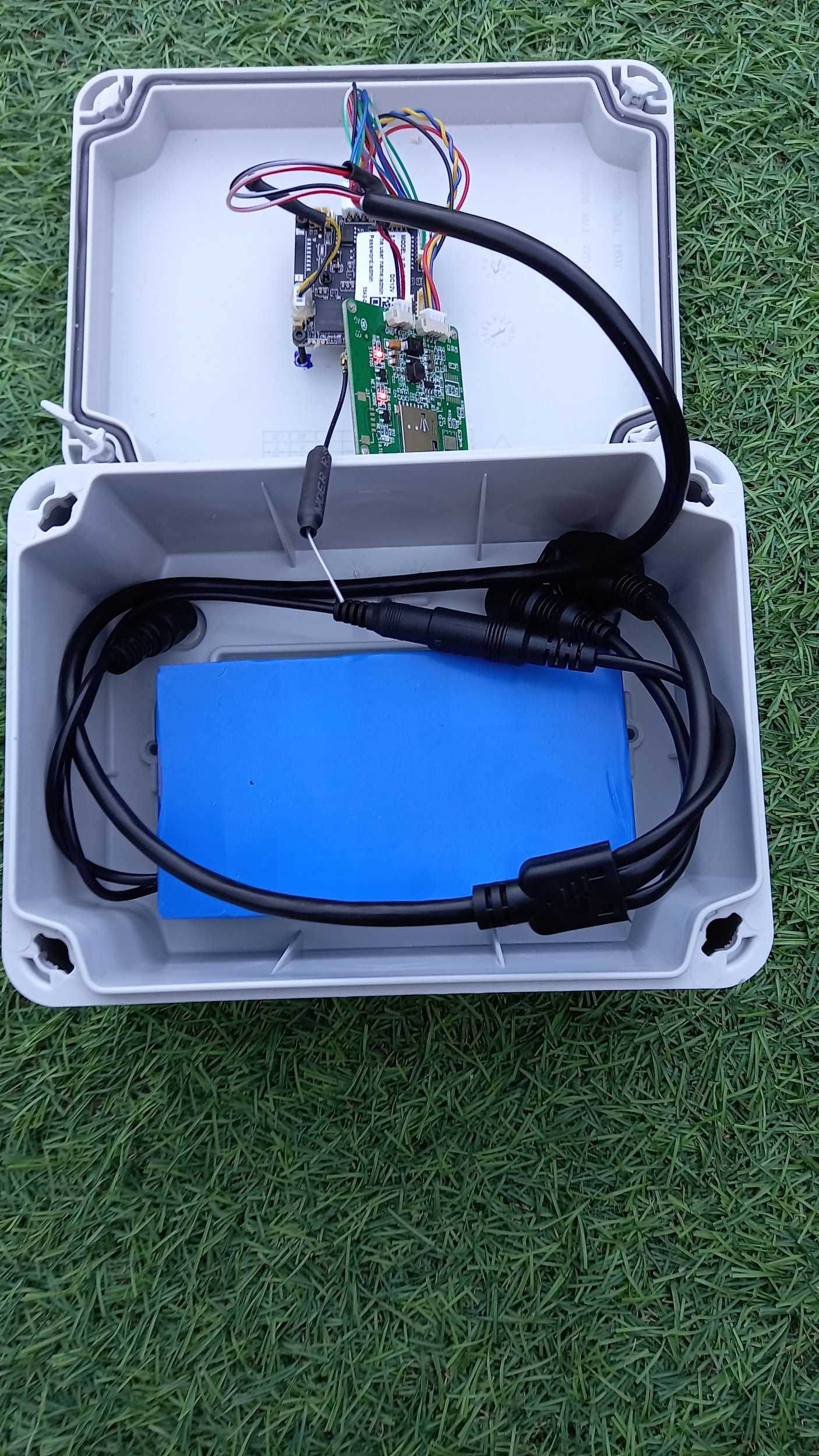

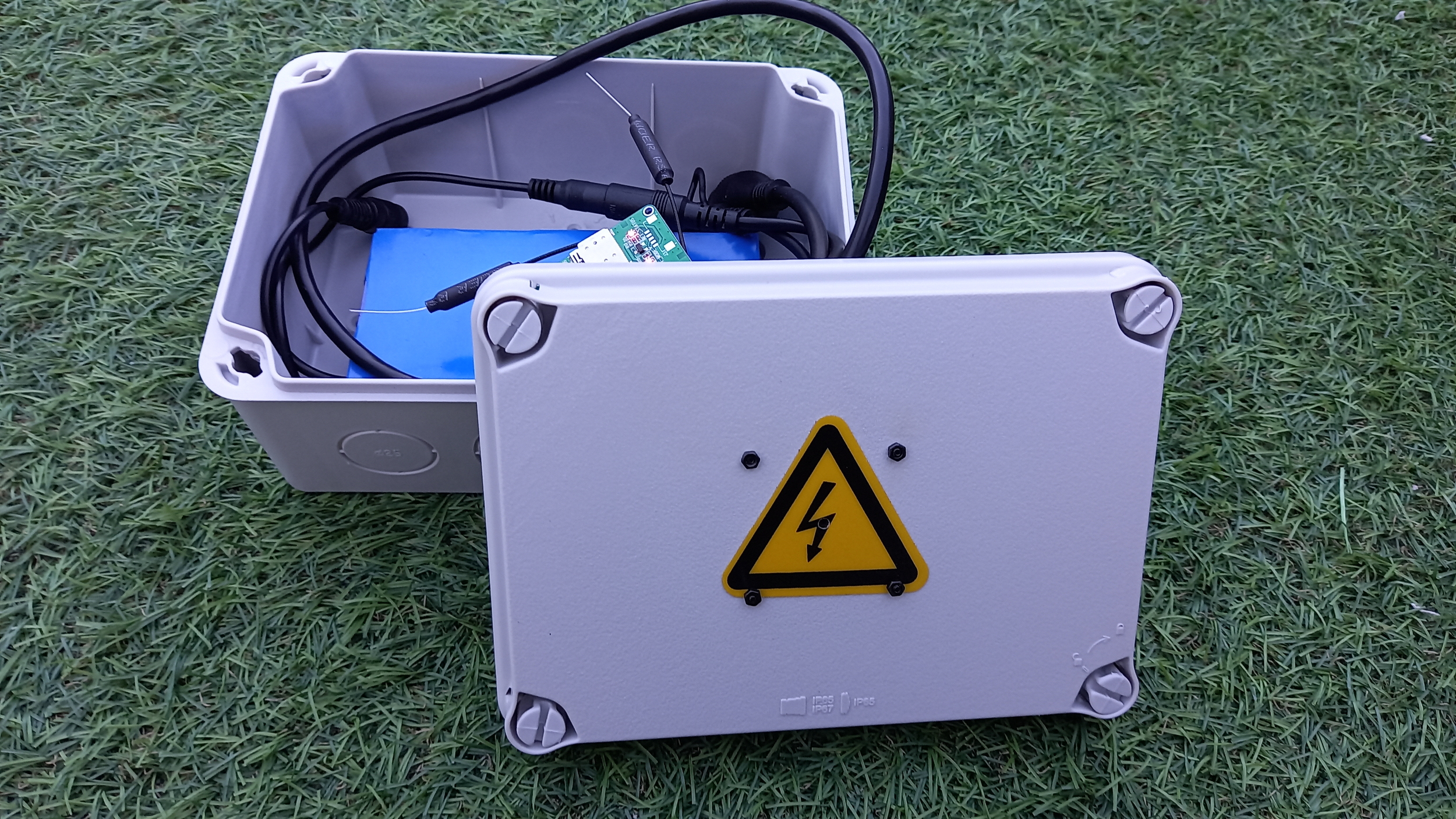

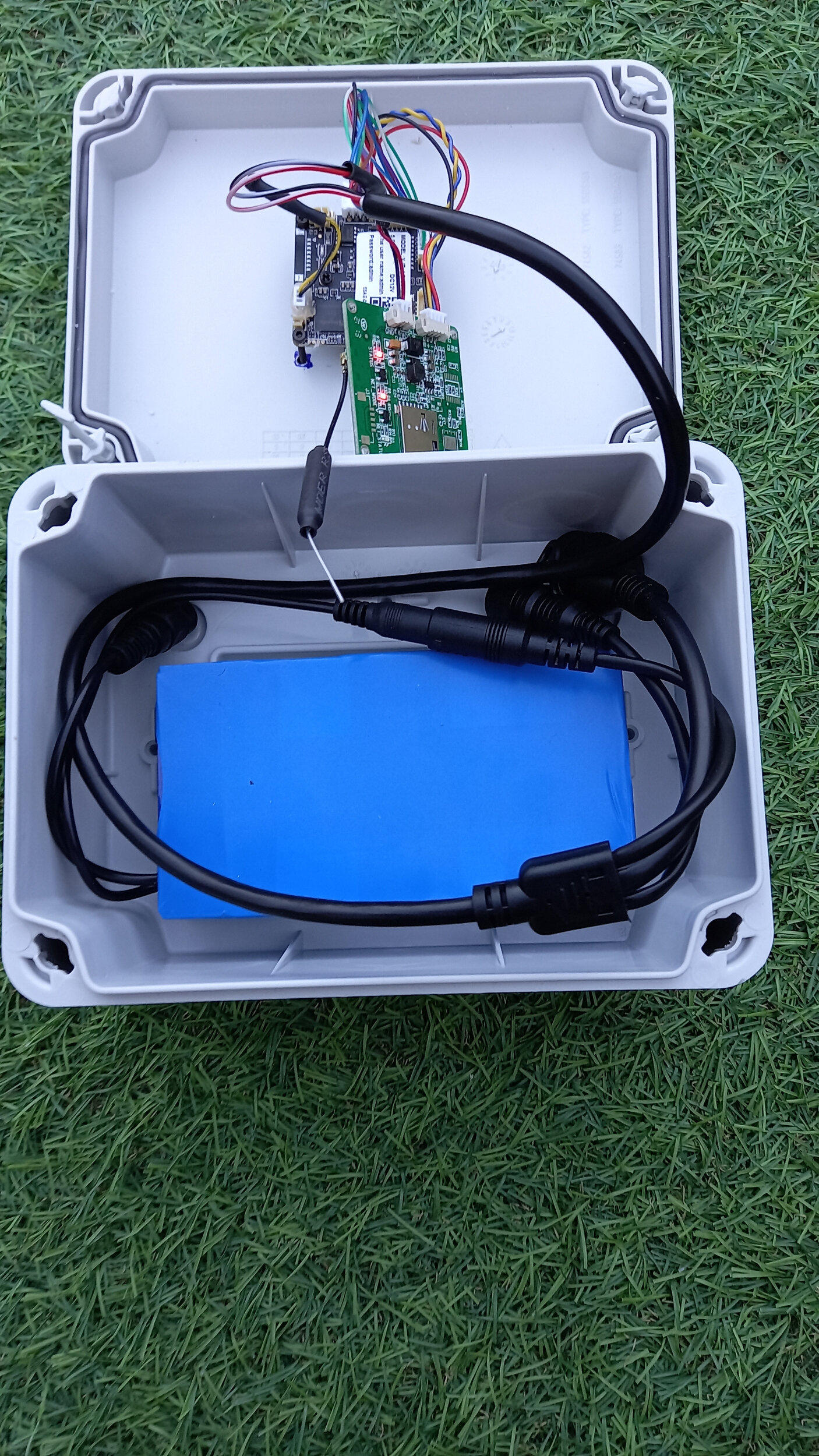

Power configuration is another key strength of this model. The surveillance junction box includes a built-in battery, with autonomy depending on the selected configuration, and it can also be connected to AC mains power for unlimited operation.

Available power options include:

• Battery-only configuration, with operating time ranging from several hours to several days depending on setup
• Permanent power supply via transformer
• Hybrid configuration with battery backup in case of power outage

This flexibility allows the device to be adapted to temporary installations, permanent fixed monitoring points, or environments where backup continuity is important.

Suitable for Indoor and Outdoor Installation

The source material states that the system can be used indoors or outdoors. For all-weather applications, an IP67 casing is available. This gives installers the option to deploy the unit in more exposed environments where additional protection is required.

Because the enclosure is based on a junction box format, it can be integrated into a wide range of architectural and technical settings, including walls, facades, access areas, and utility-style mounting points, provided installation is carried out in compliance with applicable regulations.

Custom-Built Configuration

This product is presented as a custom build, which is important for buyers with specific operational requirements. According to the source information, the internal layout, autonomy, and SIM card setup can be configured on request. There is also an optional GPS function available for mobile setups such as camper vans.

This level of configurability makes the device more adaptable than fixed-specification consumer products. Buyers can select the transmission method, camera count, and power arrangement that best match the intended installation environment.

Where This Junction Box Camera Fits Best

This surveillance device is particularly well suited to locations where a visible camera may be undesirable or too easy to identify. The source material specifically highlights applications such as building entrances, parking areas, hallways, and public spaces. It is also described as suitable for vehicle surveillance in mobile environments such as RVs, vans, and service vehicles.

Additional examples mentioned in the source include installation on utility poles or facades for street-facing observation, as well as use in hotel or office environments. Because the product is designed as a discreet professional monitoring tool, it is intended for legitimate security, safety, and property protection purposes, always subject to local laws and regulations.

What Makes This Model Different

Several elements distinguish this junction box surveillance system from more conventional monitoring devices:

• Realistic junction box integration for highly discreet installation
• Up to 3 pinhole cameras in a single enclosure
• 8MP CMOS sensors with 4K UHD recording at 30 FPS
• Choice of Wi-Fi/IP or 4G LTE transmission
• Remote live viewing and recorded footage access via app
• Motion detection alerts
• Support for managing up to 32 cameras in the same app
• Battery, mains, or hybrid power options
• Optional IP67 casing for outdoor use
• Optional GPS for mobile installations

Important Usage Notice

This product is a covert surveillance device and must be used in accordance with the laws and regulations applicable in the country of installation and operation. The source material clearly states that unauthorized recording of individuals without their knowledge may be prohibited or restricted. Buyers are responsible for ensuring that deployment is fully compliant with local legal requirements.

A user manual in English is provided with the product.
