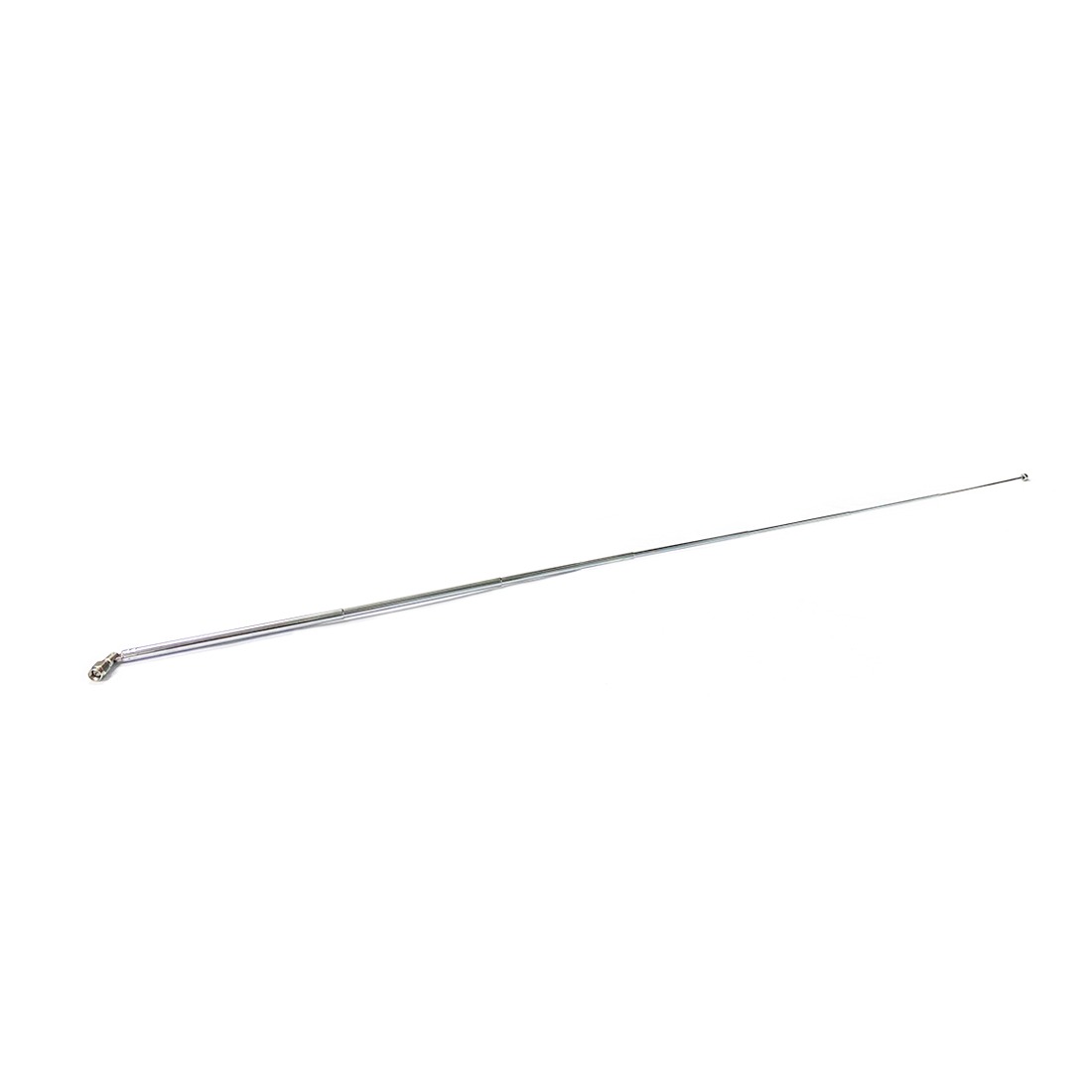

Telescopic Antenna 40 MHz to 6 GHz

Description of the article « Telescopic Antenna 40 MHz to 6 GHz »

Wideband Telescopic Antenna for SDR and RF Work

This telescopic antenna is designed for users who need broad frequency coverage in a compact and practical format. Supporting a frequency range from 40 MHz to 6 GHz, it is suitable for both signal reception and transmission and is particularly well suited to software-defined radio (SDR) applications.

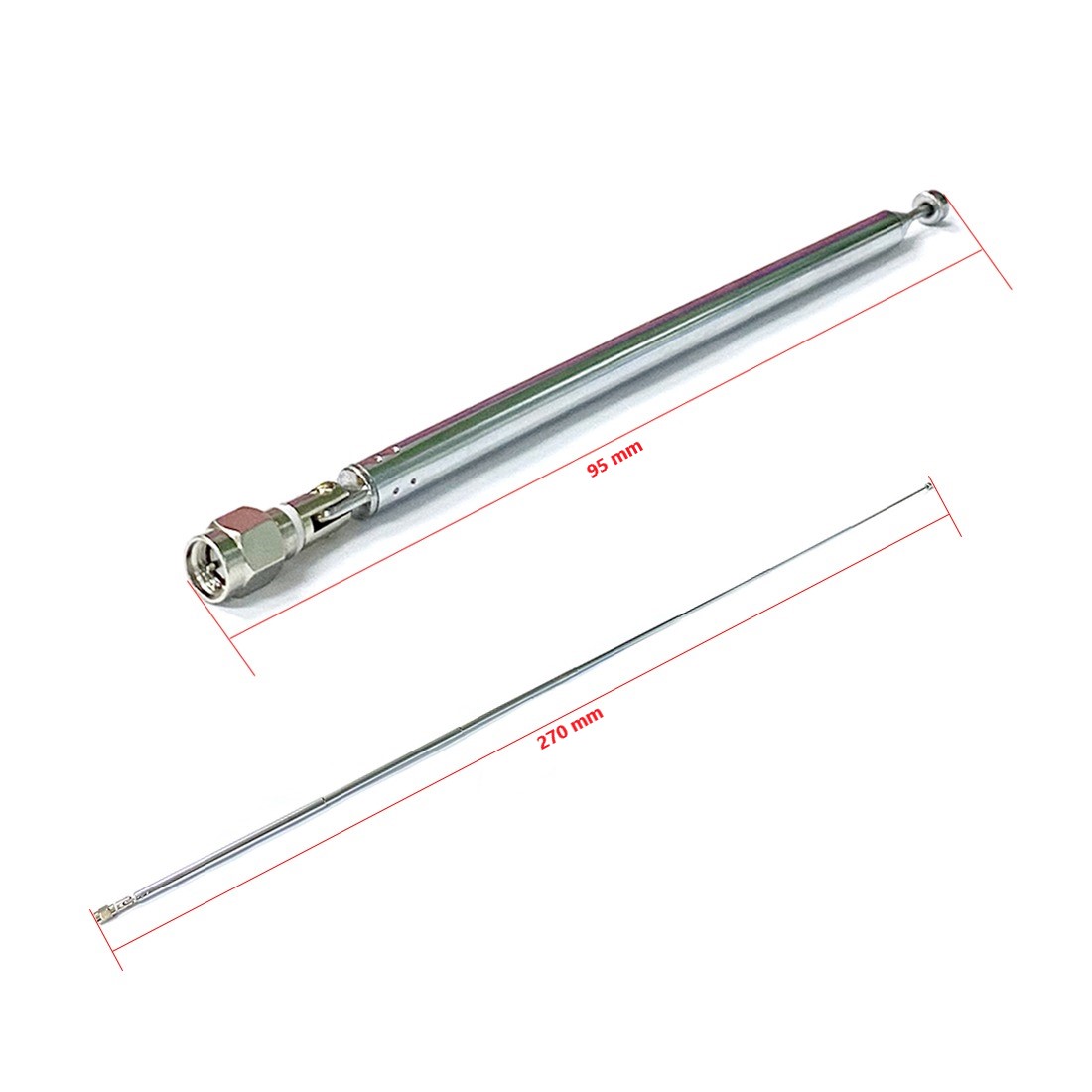

Fitted with an SMA male connector, this antenna is fully compatible with the Hack RF One and can also be used with a range of other SDR platforms and RF devices that accept SMA connections or appropriate adapters. Its adjustable telescopic structure allows the physical length to be changed from 95 mm when retracted to 270 mm when fully extended, giving users a simple way to optimise performance for different parts of the supported spectrum.

Key Technical Specifications

• Frequency range: 40 MHz to 6000 MHz
• Connector type: SMA male
• Retracted length: 95 mm
• Extended length: 270 mm
• Body material: Telescopic stainless steel body

Designed for Flexible Frequency Coverage

One of the main strengths of this antenna is its exceptionally wide operating range. Covering frequencies from 40 MHz through to 6 GHz, it can be used across a broad variety of RF environments, from low-band VHF through to microwave spectrum analysis. This makes it a practical option for users who work across multiple bands and want a single antenna that can adapt to different tasks.

Rather than being fixed at one physical length, the antenna uses a telescopic design that allows manual adjustment. This is especially useful in SDR and RF testing environments, where tuning the antenna length can help improve suitability for a targeted frequency range. For users working with narrow-band signals inside a much wider spectrum, this flexibility can be particularly valuable.

Telescopic Adjustment for Practical Tuning

The adjustable structure is not simply a convenience feature. By extending or retracting the antenna, users can better match the antenna length to the frequency they are working with. According to the source specifications, this can support:

• Improved reception sensitivity in tuned bands
• Reduced standing wave ratio (SWR)
• Better transmission efficiency at specific wavelengths

In practical terms, shorter extension is suited to higher-frequency work in the GHz range, while full extension is more beneficial for lower-frequency reception, especially within the 40 MHz to 200 MHz area mentioned in the source material. This makes the antenna useful for users who need a quick, manual way to adapt their setup without changing antennas for every task.

Compatibility with Hack RF One and Other SDR Platforms

This model is presented as a strong choice for Hack RF One users, thanks to its SMA male connector and wideband design. It is also listed as compatible with several other SDR and RF platforms, making it a versatile option for users with mixed equipment or evolving test setups.

Listed compatible devices and platforms

• Hack RF One
• LimeSDR and LimeSDR Mini
• RTL-SDR via SMA adapter
• SDRplay
• USRP
• Custom RF boards or modems with SMA input

This broad compatibility makes it suitable for bench testing, portable SDR kits, and general RF experimentation where an SMA-based wideband antenna is required.

Suitable for Professional and Technical Environments

This antenna is intended for a wide range of legitimate professional and technical applications. The source material highlights its relevance for users involved in RF testing, spectrum analysis, telecommunications development, and EMI analysis. It is also suitable for educational and laboratory environments where broad frequency access and manual tuning flexibility are important.

Because it supports both reception and transmission, it can serve as a practical tool in development, diagnostics, and controlled testing scenarios. Users working with SDR platforms often need a compact antenna that can be adjusted quickly for different bands, and this design directly addresses that requirement.

Examples of appropriate technical applications

• SDR monitoring across multiple frequency ranges
• RF engineering and prototype signal system work
• Spectrum monitoring in professional environments
• Electromagnetic interference (EMI) analysis
• Telecommunications band testing
• University and laboratory experiments involving VHF, UHF, and microwave frequencies

Its wide coverage and adjustable format make it especially useful where one antenna needs to support varied tasks without taking up much space in a kit or on a workbench.

Compact Format for Lab and Field Use

Portability is another practical advantage of this antenna. When retracted to 95 mm, it is compact enough to fit easily into a pocket, tool bag, or portable SDR case. When extended to 270 mm, it is ready for use in desktop setups, mobile rigs, or field testing situations.

This balance between compact storage and adjustable working length makes it a convenient option for users who move between locations or need an antenna that can be deployed quickly. Whether used in a lab, workshop, office, or field environment, the telescopic form factor supports fast setup and easy transport.

Stainless Steel Construction and Secure SMA Connection

The antenna features a stainless steel telescopic body, chosen for durability and corrosion resistance. This helps it stand up to repeated extension and retraction while remaining suitable for regular technical use. The source material also highlights the SMA base as providing a secure connection to the device.

For users who rely on stable physical connections in test and monitoring setups, the combination of a metal telescopic body and SMA interface offers a straightforward, professional-grade design. It is built to be practical rather than complicated, with a focus on adaptability and ease of integration into existing SDR and RF systems.

Why Choose This Telescopic Antenna?

For SDR users and RF professionals, the value of this antenna lies in its combination of wide frequency support, manual tuning flexibility, and broad device compatibility. Instead of carrying multiple fixed antennas for different tasks, users can work with a single compact model that covers a very large portion of the RF spectrum.

Its main advantages are clearly defined in the source material:

• Wide frequency range from 40 MHz to 6 GHz
• Telescopic adjustment for tuning and optimisation
• SMA male connector for straightforward integration
• Hack RF One compatibility out of the box
• Stainless steel construction for durability
• Compact, portable format for lab and field use

For users who need a practical wideband antenna for SDR, RF development, testing, and analysis, this model offers a strong balance of coverage, simplicity, and portability.

Important Usage Notice

This product is described as a passive component. Reception use is generally permitted in most countries, but any use involving signal transmission must comply with applicable local regulations and licensing requirements. Users should always ensure that operation in regulated frequency bands follows the laws in their country.

The user manual is provided in English.
