Omnidirectional Antenna 2.4 GHz and 5.8 GHz

Description of the article « Omnidirectional Antenna 2.4 GHz and 5.8 GHz »

Dual-Band Omnidirectional Antenna for 2.4 GHz and 5.8 GHz Applications

This omnidirectional antenna is built for reliable operation across two widely used RF bands: 2400–2500 MHz and 5150–5850 MHz. Designed for users who need dependable performance in both transmission and reception, it is well suited to Hack RF One, software-defined radio platforms, Wi-Fi testing tools, and other compatible wireless systems using an SMA male connector.

Its 8 dBi gain helps improve signal reach and quality, while the omnidirectional radiation pattern supports broad horizontal coverage. This makes it a practical antenna for RF testing, wireless diagnostics, lab work, and field use where signal direction may vary.

Key Technical Specifications

• Frequency range: 2400–2500 MHz / 5150–5850 MHz
• Gain: 8 dBi
• Length: 160 mm
• Polarization: Horizontal
• Impedance: 50 Ohms
• Connector: SMA male

Designed for Common RF and SDR Platforms

With its standard SMA male interface, this antenna is intended for straightforward integration with a wide range of compatible equipment. The source material explicitly lists compatibility with:

• Hack RF One
• LimeSDR and LimeSDR Mini
• RTL-SDR with SMA adapters
• USRP SDR platforms
• Wi-Fi cards with SMA ports
• FPV transmitters and receivers
• RF development kits

This broad compatibility makes it a useful accessory for users working across different SDR and wireless environments. If your device uses an SMA connection and operates within the supported frequency ranges, this antenna offers a convenient dual-band solution without unnecessary complexity.

Coverage Across Two Widely Used Frequency Bands

The antenna supports 2.4 GHz and 5.8 GHz operation, specifically 2400–2500 MHz and 5150–5850 MHz. These ranges are commonly used in several wireless and RF contexts, including Wi-Fi networks, Bluetooth, Zigbee, ISM band applications, FPV systems, and general RF experimentation setups.

For users who regularly work across both bands, a dual-band antenna can simplify setup and reduce the need to swap accessories between tasks. Whether the goal is signal observation, diagnostics, testing, or general SDR use, this model is designed to provide stable performance across both supported ranges.

8 dBi Gain for Improved Signal Performance

Gain is one of the most important characteristics when selecting an RF antenna, and this model offers 8 dBi. According to the source material, this helps provide extended range and improved signal quality in the supported frequency bands.

In practical terms, this makes the antenna suitable for users who want stronger and clearer performance than a lower-gain basic antenna may provide. In testing environments, stronger signal handling can be valuable when assessing wireless conditions, monitoring band activity, or building a more capable SDR setup.

The source also describes it as suitable for medium-range testing and field operations, making it a sensible option for both bench-based and portable RF work.

Omnidirectional Pattern for 360° Horizontal Coverage

This antenna uses an omnidirectional radiation pattern, meaning it radiates and receives signals evenly across the horizontal plane. That characteristic is especially useful when the signal source is not fixed in one direction or when broad area coverage is more important than directional focus.

According to the provided information, this type of pattern is ideal when:

• The signal source location varies
• 360° reception or transmission is required
• The setup involves mobile or portable SDR systems

For many RF users, this is a practical advantage. Instead of carefully aiming a directional antenna, an omnidirectional design offers more flexibility in changing environments, temporary installations, and general-purpose testing scenarios.

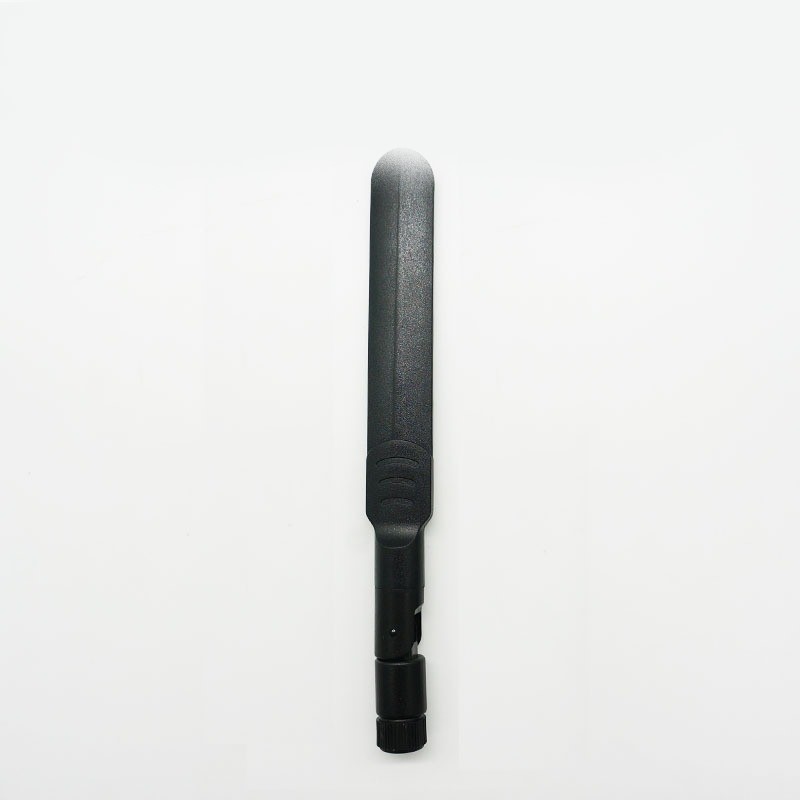

Compact Format for Portable and Bench Use

With a stated length of 160 mm, this antenna remains compact enough for portable operation while still offering the specified 8 dBi gain. The source material highlights this balance as useful for users who need a practical antenna for both field and lab work.

Its straightforward physical format also supports quick deployment. For engineers, technicians, students, and SDR users who move between workstations, test benches, and on-site environments, a compact antenna can be easier to transport and integrate into different setups.

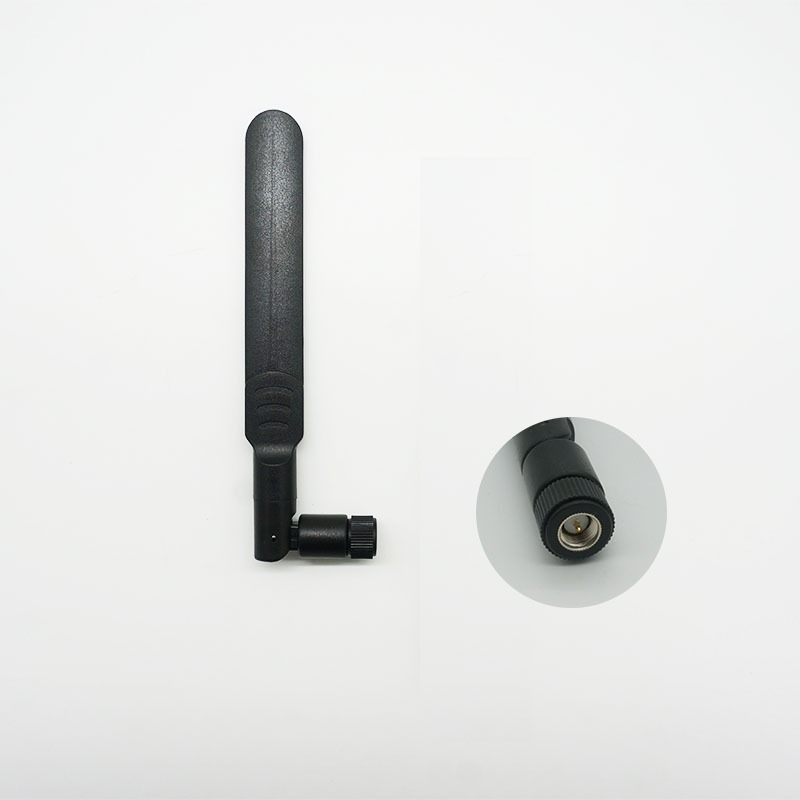

Simple Installation with SMA Male Connector

Installation is intentionally simple. The antenna uses an SMA male connector and does not require tools or drivers. As described in the source material, you simply screw it into a compatible device and it is ready to use.

This plug-and-play approach is particularly useful in RF environments where equipment may be changed frequently. It allows quick setup with compatible SDR hardware, wireless cards, RF development kits, and other supported devices without additional configuration.

Suitable for RF Testing, Analysis, and Wireless Diagnostics

The source material positions this antenna as a versatile option for a range of legitimate professional, educational, and technical uses. It is described as suitable for:

• Wireless communication engineers conducting 2.4 GHz or 5.8 GHz signal experiments
• Security professionals analyzing Wi-Fi and Bluetooth environments
• SDR enthusiasts exploring the ISM bands with Hack RF One
• FPV drone pilots needing an SMA antenna for transmission or reception
• University labs performing educational RF experiments
• IT and network specialists carrying out Wi-Fi signal diagnostics

These use cases reflect the antenna’s combination of dual-band support, omnidirectional coverage, and standard SMA connectivity. It is a practical accessory for users who need a dependable antenna for observation, testing, diagnostics, and general RF platform integration.

Useful in Advanced RF Setups

The source content also notes that this antenna can be paired with amplifiers, filters, or frequency converters as part of more advanced RF testing setups. This can make it a useful component in broader signal chains where users are refining sensitivity, filtering specific bands, or adapting signals for specialized workflows.

For technical users building modular RF systems, compatibility with these types of accessories adds flexibility. It allows the antenna to serve not only as a standalone solution, but also as part of a more developed SDR or wireless test environment.

Why Choose This Omnidirectional 2.4 GHz / 5.8 GHz Antenna?

Choosing the right antenna has a direct impact on RF testing quality, wireless diagnostics, and SDR performance. Based on the provided specifications and product description, this model stands out for several clear reasons:

• Dual-band coverage across 2400–2500 MHz and 5150–5850 MHz
• 8 dBi gain for improved range and signal quality
• Omnidirectional coverage for broad horizontal operation
• Direct compatibility with Hack RF One
• Standard SMA male connector for integration with many compatible devices
• Compact 160 mm format for portable and lab-based use

For users working in SDR, wireless analysis, RF education, or network diagnostics, this combination of features makes it a strong general-purpose choice within its stated frequency ranges.

Important Legal and Usage Notice

This product is described as a passive RF component. It does not emit power by itself unless connected to an active transmitter. When used in transmission systems, users are responsible for ensuring that frequency use and power levels comply with the laws and regulations applicable in their country or jurisdiction.

The source material also states that the user manual is provided in English.
