Omnidirectional Antenna for 40 MHz to 860 MHz

Description of the article « Omnidirectional Antenna for 40 MHz to 860 MHz »

Omnidirectional 40–860 MHz Antenna for VHF/UHF SDR Applications

This omnidirectional antenna is designed to cover a broad low-frequency range from 40 MHz to 860 MHz, making it a versatile option for users working across VHF and UHF bands. Built for both signal transmission and reception, it supports a wide variety of professional, technical, and research-oriented RF tasks where broad coverage and practical deployment are essential.

Its compact format, 8 dBi gain, and magnetic base make it especially convenient for SDR users who need a dependable antenna that can be positioned quickly on metallic surfaces. With an included 1.5-meter coaxial cable and SMA male connector, it integrates easily into compatible setups such as Hack RF One and other software-defined radio platforms.

Wide Frequency Coverage for Low-Band RF Work

One of the main strengths of this model is its broad operating range of 40 MHz to 860 MHz. This coverage allows it to support many common low-band RF activities, including analog and digital TV band analysis, amateur radio experimentation, and general VHF/UHF spectrum monitoring.

For users who work across multiple parts of the spectrum, a wideband antenna can simplify the setup by reducing the need to switch between several antennas for different tasks. This makes the antenna particularly useful in lab environments, test benches, and field deployments where flexibility matters.

Designed for Transmission and Reception

According to the provided specifications, this antenna is suitable for both transmission and reception. That makes it relevant for users performing controlled RF testing, signal analysis, and system evaluation with compatible equipment. As with any RF transmission setup, users should ensure that operation remains compliant with applicable radio regulations.

8 dBi Gain for Enhanced Signal Performance

The antenna is specified with 8 dBi gain, helping support stronger signal performance across its intended frequency range. In practical SDR and RF monitoring environments, gain can be an important factor when improving signal capture and maintaining more effective coverage in changing conditions.

Combined with its omnidirectional pattern, this gain level makes the antenna well suited to applications where signals may arrive from different directions and where users do not want to constantly reposition the antenna. This can be beneficial in dynamic monitoring scenarios, mobile test setups, and general-purpose spectrum observation.

Omnidirectional Coverage with Horizontal Polarization

This model is built as an omnidirectional antenna, offering coverage across a 360° field. That makes it a practical choice when the exact direction of the signal source is unknown, variable, or spread across multiple positions.

The antenna uses horizontal polarization, as stated in the technical specifications. For users building a more deliberate RF setup, polarization is an important parameter because it affects how the antenna interacts with the target signal environment. Where horizontal polarization is required or preferred, this antenna provides a clearly defined configuration.

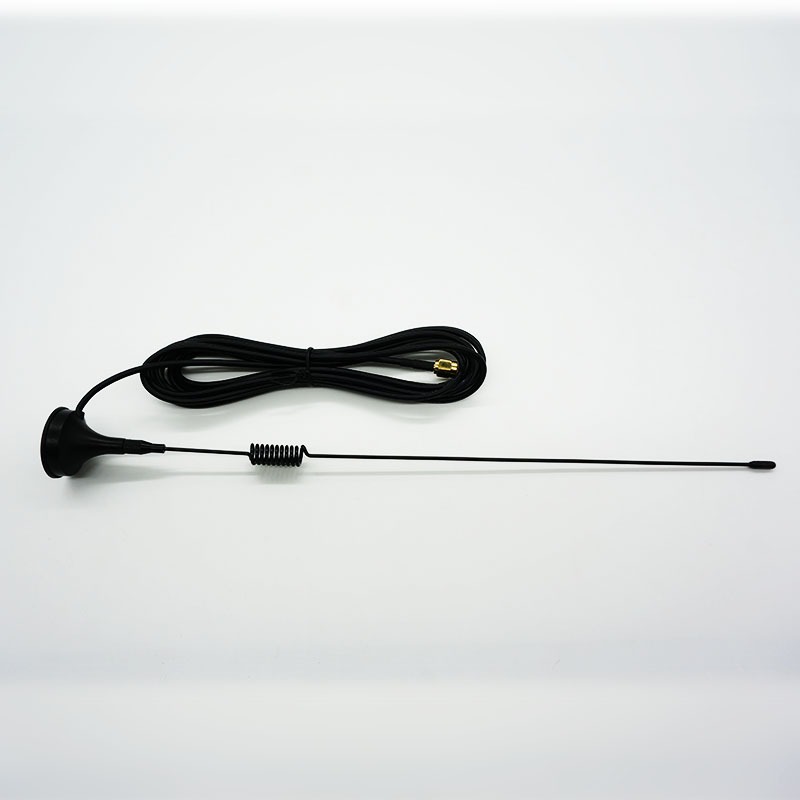

Compact Format for Easy Integration

With an antenna length of 90 mm, this model remains compact and easy to handle. Its small footprint makes it suitable for installations where space is limited, including crowded workbenches, equipment racks, temporary test stations, and mobile technical setups.

A compact antenna can also be easier to transport and reposition, which is valuable for users who move between different work areas or need a portable SDR accessory that does not add unnecessary bulk to the system.

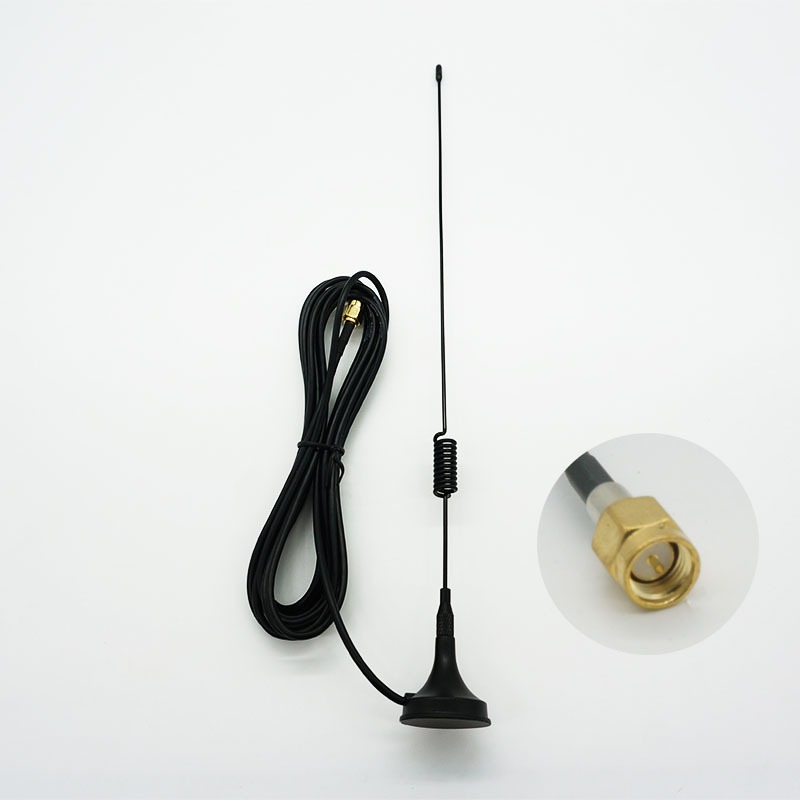

Magnetic Base for Fast, Stable Mounting

A major practical advantage of this antenna is its magnetic base. This allows quick installation on compatible metallic surfaces such as vehicles, lab benches, cabinets, or equipment enclosures. For many users, this means faster deployment and easier experimentation with antenna placement.

Instead of requiring a permanent bracket or more complex mounting hardware, the magnetic base supports a simpler setup process. This is especially useful in professional environments where equipment may need to be repositioned regularly or where temporary mounting is preferred.

Flexible Placement with 1.5 m Cable

The included 1.5-meter coaxial cable gives added flexibility when positioning the antenna. This extra reach can help users place the antenna in a more suitable location relative to the radio device, metal mounting surface, or surrounding equipment.

The cable is terminated with an SMA male connector, providing straightforward connection to compatible SDR and RF hardware. This combination of cable length and standard connector helps streamline installation without adding unnecessary complexity.

SMA Male Connector and SDR Compatibility

This antenna is equipped with an SMA male connector and is explicitly described as fully compatible with Hack RF One. It is also presented as suitable for use with a range of software-defined radio systems and RF analysis equipment.

The source material specifically mentions compatibility or use with the following device categories and platforms:

• Hack RF One

• RTL-SDR (with SMA adapters)

• SDRplay

• LimeSDR

• USRP

• RF analysis devices

• Spectrum monitoring systems

For users building or expanding an SDR workstation, this makes the antenna a convenient option for broad low-frequency coverage without moving to a larger or more specialized installation.

Suitable for Monitoring, Testing, and Technical Research

The product description highlights a range of legitimate technical uses across monitoring, testing, and research environments. Because it covers both VHF and UHF frequencies, it can be used in workflows involving public safety frequency monitoring, amateur radio reception, television spectrum analysis, and legacy RF communication systems.

It is also relevant for users involved in academic RF research, embedded systems development, and custom-built RF circuit evaluation. In these contexts, a compact omnidirectional antenna with broad coverage can be a practical tool for signal observation, comparative testing, and general bench work.

Professional and Technical Environments

Based on the source material, this antenna is suitable for users operating in environments such as:

• Amateur radio experimentation

• Emergency communication testing

• Analog and digital television spectrum analysis

• Low-band VHF/UHF academic research

• Remote command and control protocol studies

• Custom RF and embedded system development

• Spectrum monitoring and RF analysis workflows

Its broad compatibility and straightforward physical design make it a useful accessory for both fixed and temporary setups where ease of deployment is important.

Technical Specifications

• Frequency range: 40 MHz – 860 MHz

• Gain: 8 dBi

• Impedance: 50 Ohms

• Antenna length: 90 mm

• Cable length: 1.5 meters

• Connector: SMA male

• Polarization: Horizontal

• Base type: Magnetic

Why Choose This 40–860 MHz Omnidirectional Antenna?

This antenna stands out for combining several practical advantages in one compact unit: broad frequency coverage, 8 dBi gain, omnidirectional operation, a magnetic mounting base, and an SMA male connection suitable for SDR use. For users who need a flexible antenna for low-frequency RF work, these features make it a convenient and efficient addition to the setup.

It is particularly appealing for users who want a compact antenna that can be deployed quickly, moved easily, and used across a variety of VHF/UHF monitoring and testing tasks without requiring a complex installation.

Important Compliance Notice

This product is described as a passive antenna. However, when used in transmission mode with SDRs or RF transmitters, operation may involve regulated radio frequencies. Users are responsible for ensuring compliance with all applicable local, national, and international radio regulations and restrictions.

The user manual is provided in English.
