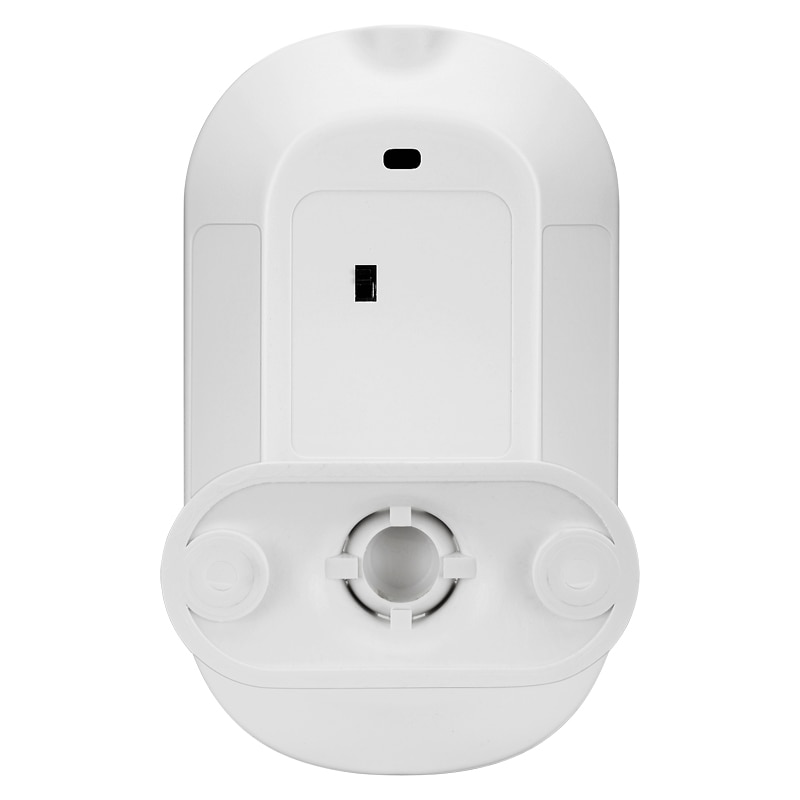

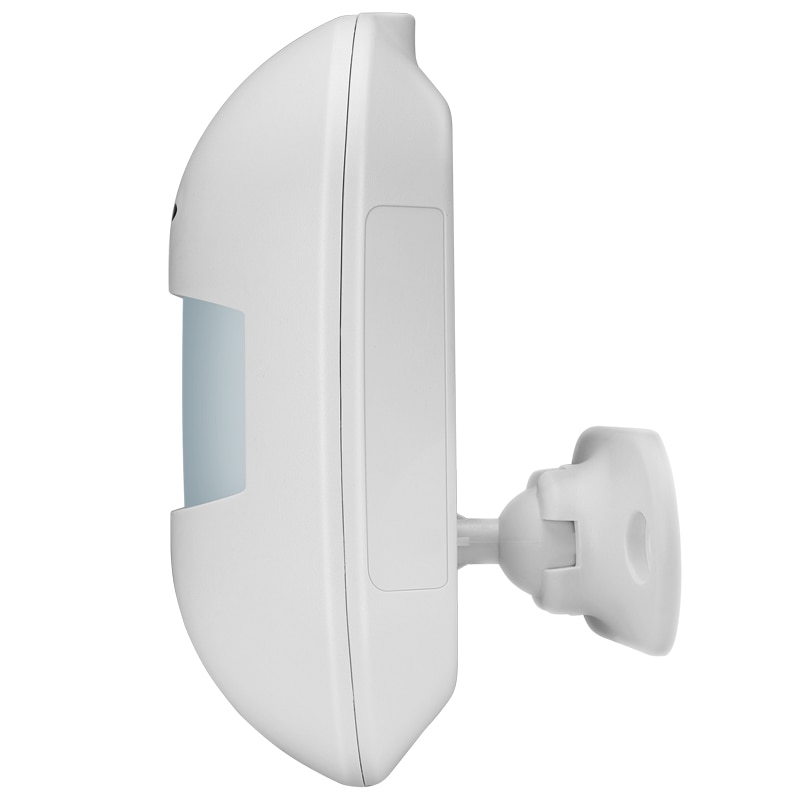

GUARDIAN-CONNECTION Motion Detector – Infrared Sensor

Description of the article « GUARDIAN-CONNECTION Motion Detector – Infrared Sensor »

GUARDIAN-CONNECTION Infrared Motion Detector for Compatible Alarm Systems

The GUARDIAN-CONNECTION Motion Detector is a wireless passive infrared (PIR) sensor created for integration with a compatible GUARDIAN-CONNECTION alarm control system. Designed as a slave accessory module, it is intended to expand the motion detection coverage of an existing alarm installation in residential or commercial interiors.

This detector is built for users who need dependable indoor intrusion detection in key passage areas such as entrances, hallways, office corridors, garages, and living spaces. With a detection distance of 5 to 12 metres and a wide field of view, it helps improve coverage while remaining compact and discreet once installed.

Important: this product does not function independently. It must be paired with a compatible GUARDIAN-CONNECTION central unit operating on 433 MHz.

Designed for GUARDIAN-CONNECTION Integration

One of the most important points about this product is its intended use. This is not a universal standalone detector. It is a wireless accessory specifically designed for the GUARDIAN-CONNECTION alarm ecosystem. For correct operation, it must be linked to a compatible alarm panel using the stated 433 MHz transmission frequency.

For buyers expanding an existing GUARDIAN-CONNECTION setup, this dedicated compatibility is a real advantage. It allows the detector to serve as a seamless addition to the wider alarm system, supporting real-time alerting through the connected control unit.

Before purchase or installation, it is essential to verify compatibility with your GUARDIAN-CONNECTION alarm control panel.

PIR Motion Detection for Interior Security

This model uses Passive Infrared (PIR) motion detection technology, a widely used solution for detecting movement within protected indoor areas. It is intended for interior intrusion detection and can be positioned in strategic locations where movement needs to be monitored as part of a broader alarm system.

Its stated detection performance includes:

• Detection distance: 5 to 12 metres
• Horizontal detection angle: 100°
• Vertical detection angle: 90°
• Detection speed: 0.3 to 3 ms

These characteristics make it suitable for covering circulation zones and interior access points where reliable motion sensing is important for timely alarm triggering.

Wide Coverage for Strategic Placement

The combination of a broad detection angle and up to 12 metres of range allows this sensor to cover common indoor monitoring zones effectively. It is particularly well suited to areas where people must pass through, helping the alarm system react quickly when movement is detected.

Typical installation points mentioned for this detector include:

• Main entrances
• Hallways
• Office corridors
• Garage doors
• Living rooms or private spaces

When placed at the recommended height and angle, the detector can help optimise both coverage and response time within the protected area. Its compact format also makes it easier to position discreetly without drawing unnecessary attention in domestic or professional interiors.

Wireless Operation on 433 MHz

This motion detector communicates wirelessly using a 433 MHz transmission frequency. That wireless design simplifies integration into an existing compatible GUARDIAN-CONNECTION alarm setup and avoids the need for hardwired sensor installation.

For many users, this means a cleaner and faster deployment process when adding coverage to an already installed alarm panel. As with any accessory designed for a specific system, the key requirement is to check compatibility with your GUARDIAN-CONNECTION control unit before use.

Power Supply and Battery Operation

The detector is powered by 2 x 1.5V AA batteries, which are not included. According to the provided specifications, battery life is up to 6 months under normal usage.

This battery-powered format supports flexible placement without dependence on a nearby power outlet. It also contributes to the product's discreet installation profile, especially in areas where visible cabling would be inconvenient or undesirable.

As with any battery-operated security accessory, actual operating time may vary depending on usage conditions, but the stated specification provides a useful reference point for routine maintenance planning.

Simple Installation Process

The installation process is described as quick and straightforward. Once you have selected a suitable indoor location, the detector can be mounted on a wall or corner at the recommended height and angle. After inserting the batteries, it can then be paired with your existing GUARDIAN-CONNECTION alarm panel.

This makes it a practical option for users who want to extend the reach of their alarm system without a complex installation procedure. Because it is a slave device, proper pairing with the compatible central unit is an essential final step.

Basic installation overview

• Choose a strategic indoor monitoring area
• Mount the detector on a wall or in a corner
• Position it at the recommended height and angle
• Insert 2 x 1.5V AA batteries
• Pair it with a compatible GUARDIAN-CONNECTION alarm control panel

Compact and Discreet Design

In addition to its functional role, this detector is described as compact and discreet. That matters in both residential and commercial settings, where security devices often need to remain unobtrusive while still protecting key areas.

A smaller, less intrusive sensor can be easier to integrate visually into an entrance area, corridor, office, or living space. This discreet presence is especially useful when you want to strengthen security coverage without affecting the overall appearance of the room.

Suitable Environments

The product is presented as suitable for both residential and commercial environments. In practice, that means it can serve as part of a broader indoor alarm strategy in settings such as:

• Homes and apartments
• Private interior access areas
• Office premises
• Internal circulation zones in professional spaces
• Garages connected to protected buildings

Its role is clear: to detect motion in monitored indoor areas and relay that information through a compatible GUARDIAN-CONNECTION alarm system for real-time security alerting.

Technical Specifications

• Product type: Infrared motion detector / wireless accessory module
• Technology: Passive Infrared (PIR) motion detection
• Detection distance: 5 to 12 metres
• Detection speed: 0.3 to 3 ms
• Horizontal angle: 100°
• Vertical angle: 90°
• Transmission frequency: 433 MHz
• Power supply: 2 x 1.5V AA batteries (not included)
• Battery life: Up to 6 months under normal usage
• Manual language: English

Important Compatibility and Usage Notes

Before ordering, it is essential to understand that this detector is not a standalone motion detector. It is a slave device that requires connection to a compatible GUARDIAN-CONNECTION alarm control panel operating on 433 MHz.

If you are looking for a self-contained detector that works on its own, this is not the right product. If, however, you need an additional wireless PIR sensor for an existing compatible GUARDIAN-CONNECTION alarm installation, it is specifically designed for that purpose.

The user manual is provided in English.

Why Choose This GUARDIAN-CONNECTION Motion Detector?

This model is a strong fit for users who want to extend a compatible GUARDIAN-CONNECTION alarm system with a dedicated wireless PIR detector. Its main strengths are clear and practical: wide detection coverage, wireless 433 MHz integration, compact installation, and battery-powered operation.

Because it is designed specifically for the GUARDIAN-CONNECTION platform, it is best viewed as a system expansion accessory rather than a general-purpose detector. In the right setup, it provides a straightforward way to improve interior monitoring in key access and circulation areas.

As always, surveillance and security equipment should be used in accordance with applicable local laws and privacy regulations.
